844/642 Telehandler ELECTRICAL

Step 6

Step 8

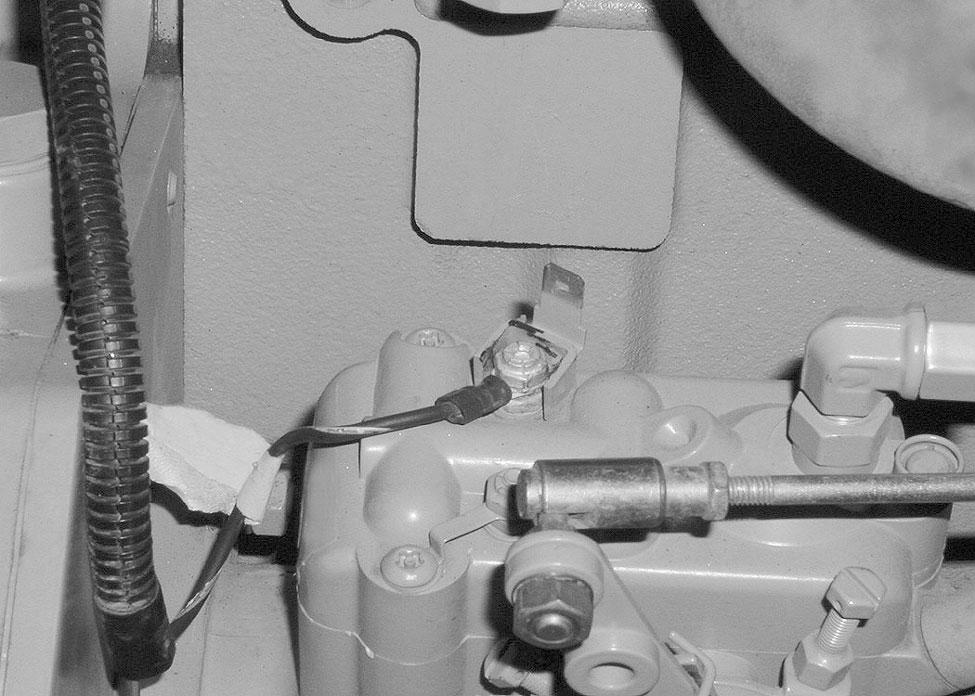

Connect the positive (+) test lead to the bottom terminal (#2) of the relay socket. Turn the key to the ON position. The multimeter should read 12 to 13 volts.

If there is no voltage, proceed to Step 12.

If there is 12 to 13 volts, but the relay does not work, replace the relay.

Starter And Starter Relay Tests

Step 7

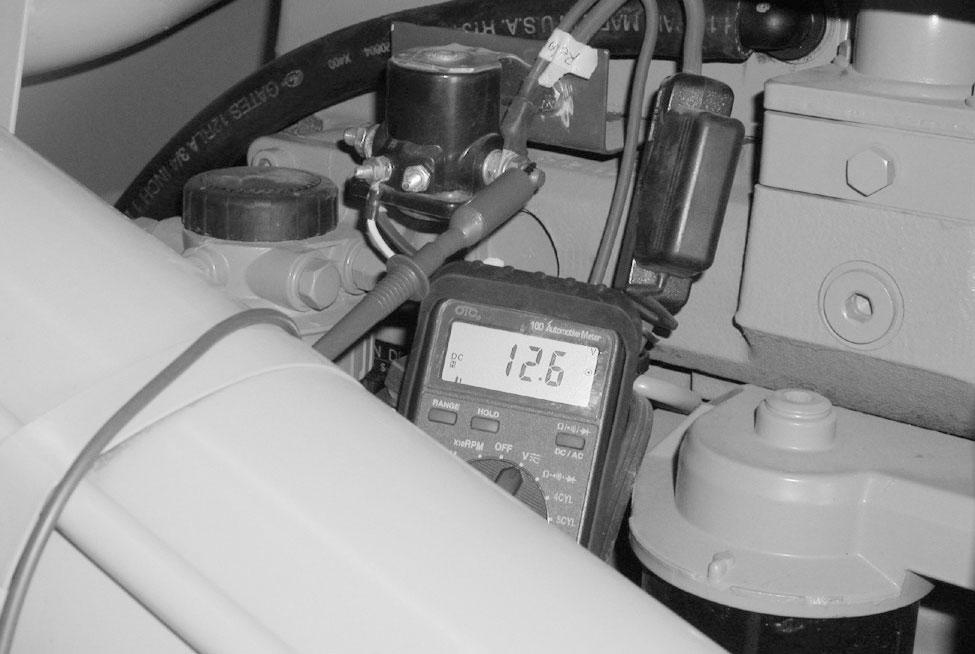

Connect the positive (+) test lead to the battery terminal of the starter relay. The multimeter should read 12 to 13 volts.

If there is no voltage, replace the wire between the starter relay battery terminal and the starter.

If there is 12 to 13 volts, proceed to the next step.

Step 9

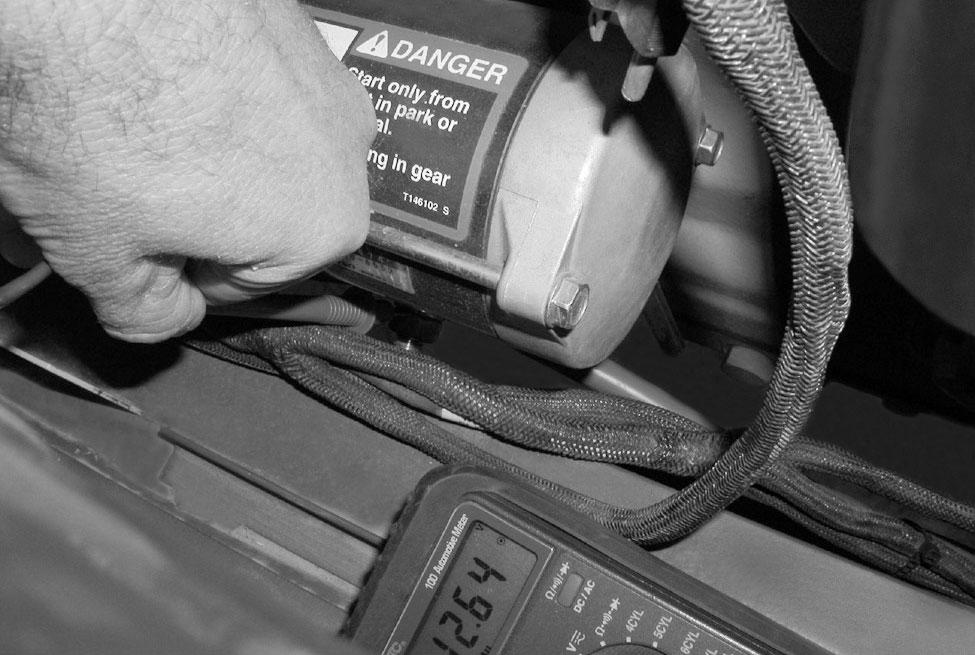

Connect the positive (+) test lead to the battery terminal of the starter. The multimeter should read 12 to 13 volts.

If there is no voltage, clean or replace the positive (+) battery cable between the starter and the battery. If there is 12 to 13 volts, proceed to the next step.

Warning

When the test involves turning over the engine or starting the engine, use test leads long enough to read the multimeter from the operators seat or standing clear of the machine.
