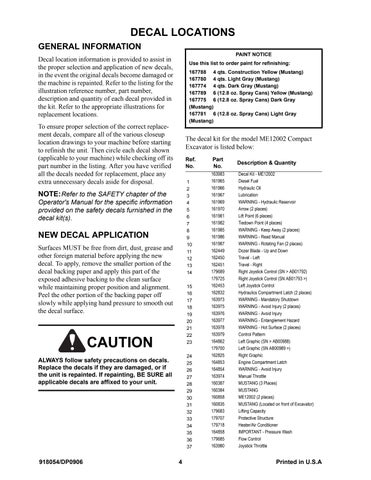

DECAL LOCATIONS GENERAL INFORMATION PAINT NOTICE
Decal location information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description and quantity of each decal provided in the kit. Refer to the appropriate illustrations for replacement locations.
Use this list to order paint for refinishing: 167788 4 qts. Construction Yellow (Mustang) 167780 4 qts. Light Gray (Mustang) 167774 4 qts. Dark Gray (Mustang) 167789 6 (12.8 oz. Spray Cans) Yellow (Mustang) 167775 6 (12.8 oz. Spray Cans) Dark Gray (Mustang) 167781 6 (12.8 oz. Spray Cans) Light Gray (Mustang)
To ensure proper selection of the correct replacement decals, compare all of the various closeup location drawings to your machine before starting to refinish the unit. Then circle each decal shown (applicable to your machine) while checking off its part number in the listing. After you have verified all the decals needed for replacement, place any extra unnecessary decals aside for disposal.
The decal kit for the model ME12002 Compact Excavator is listed below: Ref. No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14
NOTE: Refer to the SAFETY chapter of the Operator's Manual for the specific information provided on the safety decals furnished in the decal kit(s).
NEW DECAL APPLICATION Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Peel the other portion of the backing paper off slowly while applying hand pressure to smooth out the decal surface.
15 16 17 18 19 20 21 22 23
CAUTION
24 25 26 27 28 29 30 31 32 33 34 35 36 37
ALWAYS follow safety precautions on decals. Replace the decals if they are damaged, or if the unit is repainted. If repainting, BE SURE all applicable decals are affixed to your unit.
918054/DP0906
4
Part No.
Description & Quantity
163983 161965 161966 161967 161969 161970 161981 161982 161985 161986 161987 162449 162450 162451 179689 179725 162453 162832 163973 163975 163976 163977 163978 163979 164862 179700 162825 164853 164854 163974 160387 160384 160858 160835 179683 179707 179718 164858 179685 163980
Decal Kit - ME12002 Diesel Fuel Hydraulic Oil Lubrication WARNING - Hydraulic Reservoir Arrow (2 places) Lift Point (6 places) Tiedown Point (4 places) WARNING - Keep Away (2 places) WARNING - Read Manual WARNING - Rotating Fan (2 places) Dozer Blade - Up and Down Travel - Left Travel - Right Right Joystick Control (SN > AB01792) Right Joystick Control (SN AB01793 >) Left Joystick Control Hydraulics Compartment Latch (2 places) WARNING - Mandatory Shutdown WARNING - Avoid Injury (2 places) WARNING - Avoid Injury WARNING - Entanglement Hazard WARNING - Hot Surface (2 places) Control Pattern Left Graphic (SN > AB00988) Left Graphic (SN AB00989 >) Right Graphic Engine Compartment Latch WARNING - Avoid Injury Manual Throttle MUSTANG (3 Places) MUSTANG ME12002 (2 places) MUSTANG (Located on front of Excavator) Lifting Capacity Protective Structure Heater/Air Conditioner IMPORTANT - Pressure Wash Flow Control Joystick Throttle
