Operation

1.20Ventilation

Windshield

WARNING!

•When opening the windshield, be sure to lock both latches. When closing the windshield, keep hands on handle and away from path of window.

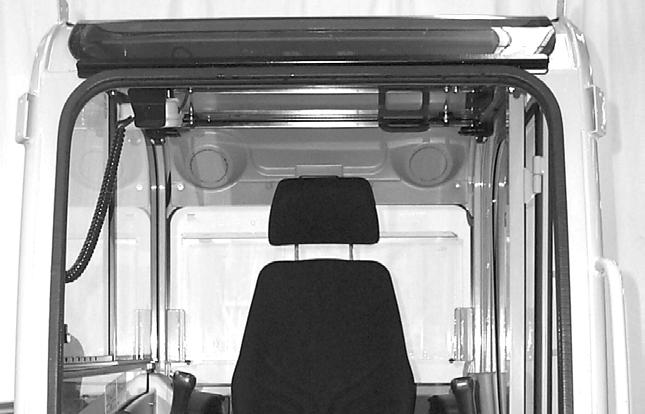

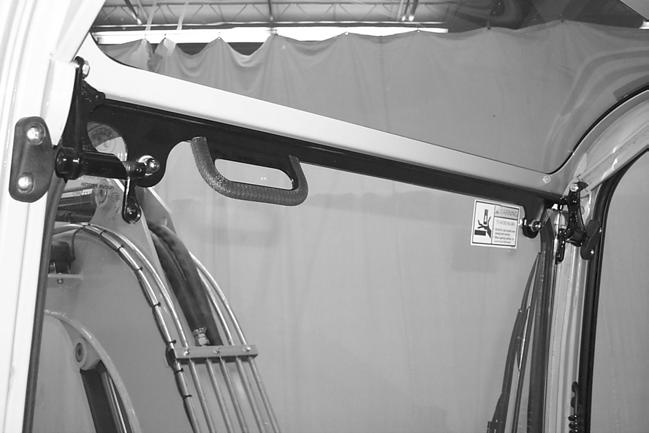

1.The windshield can be opened for ventilation. Turn the latches (1), located at the upper corners of the windshield. See Fig. 17. Grasp the handle (2) and pull the windshield up until the latches lock in the open position. For additional ventilation, the lower portion of the windshield can be removed and securely stored in the glass holder (3) located on the rear window.

2.To close the windshield, reinstall the lower windshield and turn the latches; then lower the windshield and lock the latches in the closed position.

1.21Cab door latch release

When fully opened, the left-hand cab door will lock in position to the side of the cab. To release the latch, use the black knob (1) located on the inside of the door. See Fig. 18.

1.22Interior light

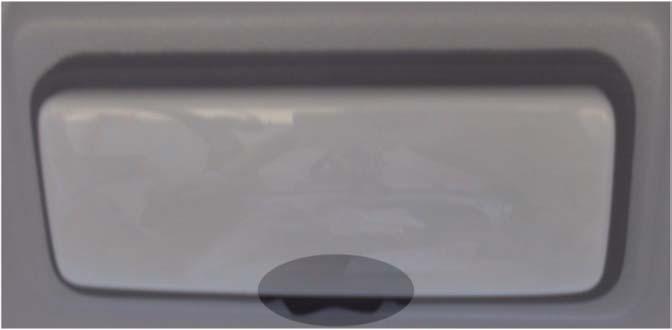

The interior light is located on the back of the cab, above the rear window. Press the switch to the right or left to turn the light ON. Move the switch to the center position to turn the light OFF.

1.23Tool kit and cab jack handle
