Chapter 8 SERVICE AND STORAGE

Problem

WPS System switch lamp flashes when switch is pressed to “ON.”

Parking brake did not engage when WPS System switch was pressed to “ON.”

Carriage tilt and auxiliary functions continue operating when the WPS System switch is pressed to “ON.”

Transmission does not remain de-clutched when shifted into “Forward” or “Reverse” when the WPS System switch is “ON.”

Boom control functions do not operate.

Possible Cause

Remedy

WPS System switch lamp flashes when switch is turned “OFF.”

Parking brake switch lamp stays “ON” when WPS System switch is “OFF”.

WPS System not activated.

With WPS System switch “ON,” apply service brakes for three seconds until WPS System switch lamp is lit continuously.

Machine is not level.

WPS System remote shutdown switch is disengaged.

(742, 944 Models): WPS System remote shutdownswitch is not plugged into the connector at the end of the boom.

(1155 Model): Low or dead batteries in WPS System remote shutdown switch.

WPS System level sensor unplugged or faulty.

Level the machine.

Engage the WPS System remote shutdown switch.

Plug in and engage the WPS System remote shutdown switch. Replace batteries and engage the WPS System remote shutdown switch.

WPS System is not de-activated.

Contact your Mustang dealer for assistance. With engine running, apply service brakes for three seconds until WPS System switch lamp goes off.

Chapter 9 Decallocations

Generalinformation

Caution

ALWAYS read and follow the safety precautions and information shown on decals. If any decals are damaged or unreadable, or if the unit is repainted, the decals must be replaced. If repainting, BE SURE that all decals that apply to your machine are affixed in their proper locations.

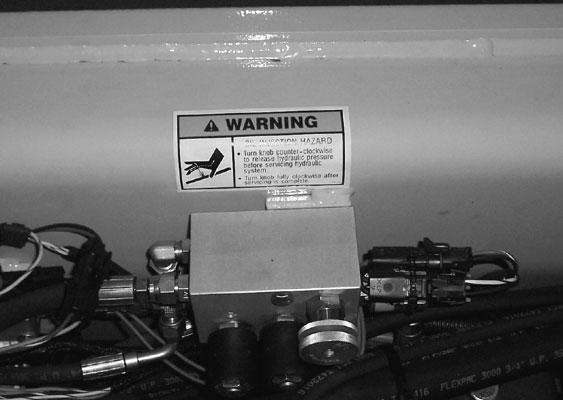

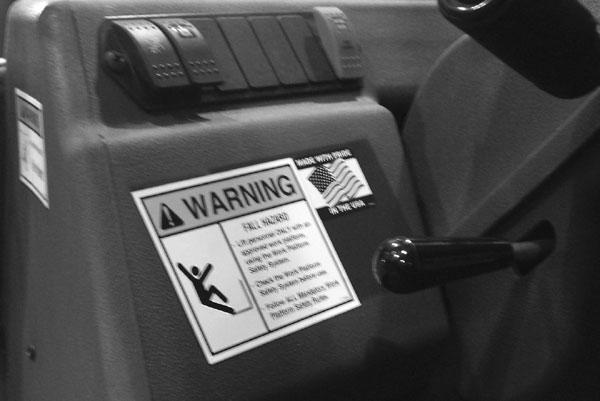

Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted.

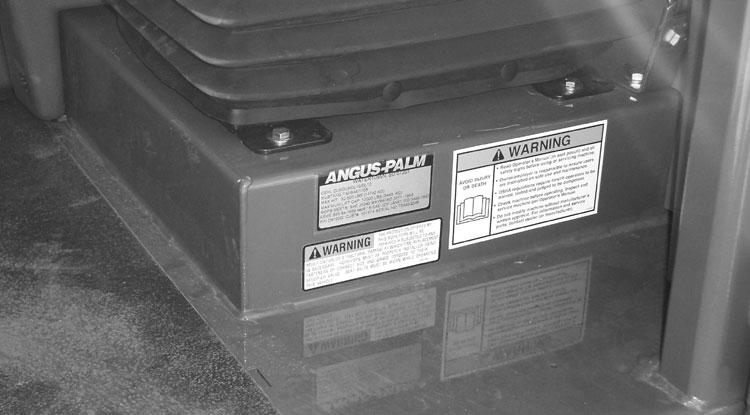

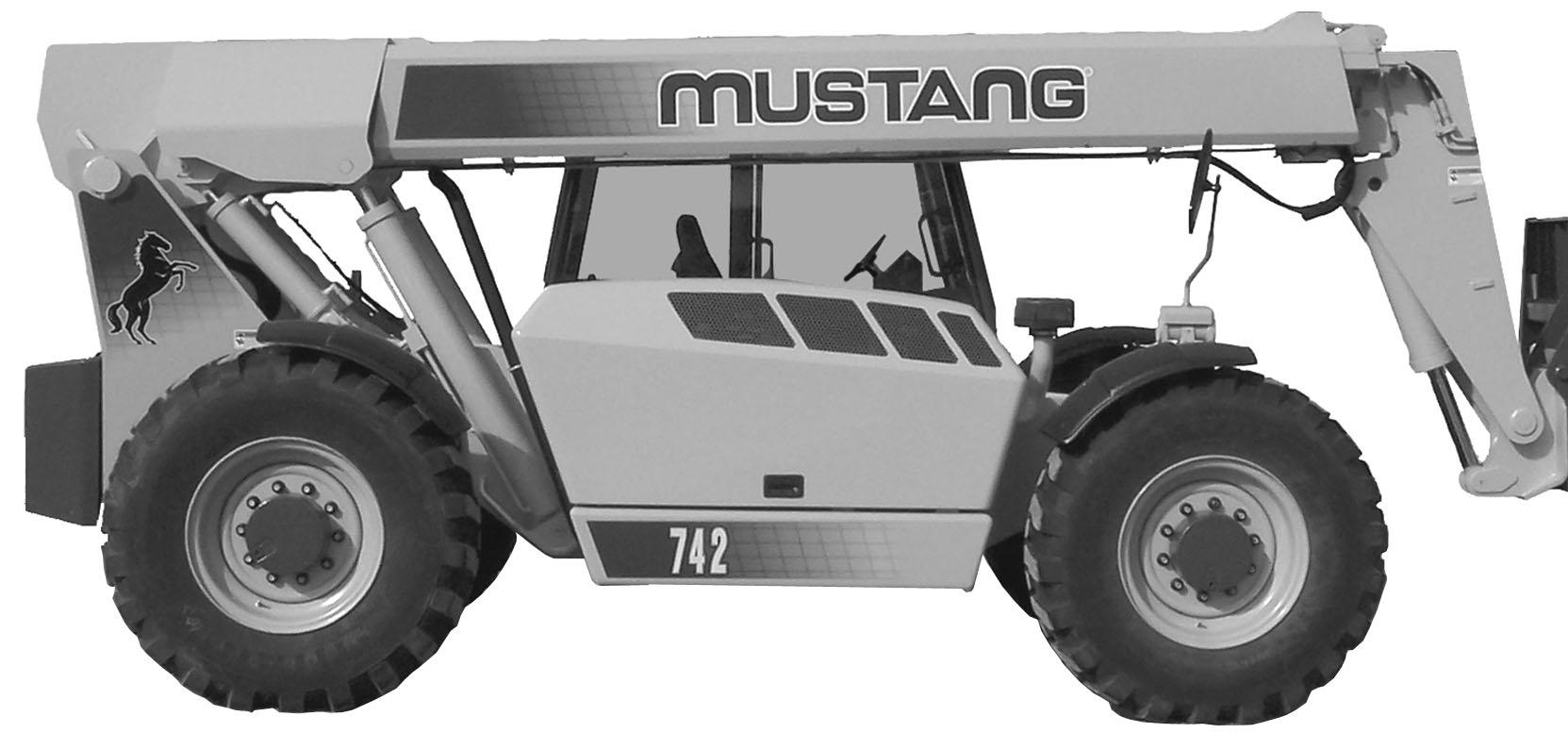

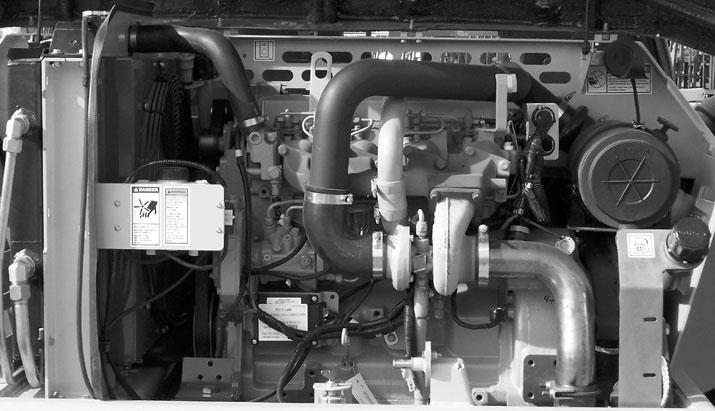

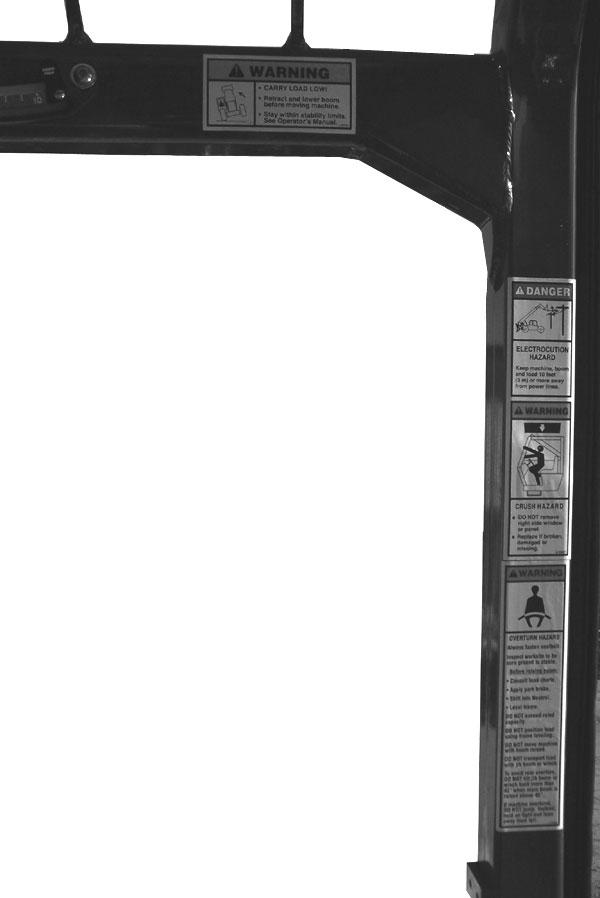

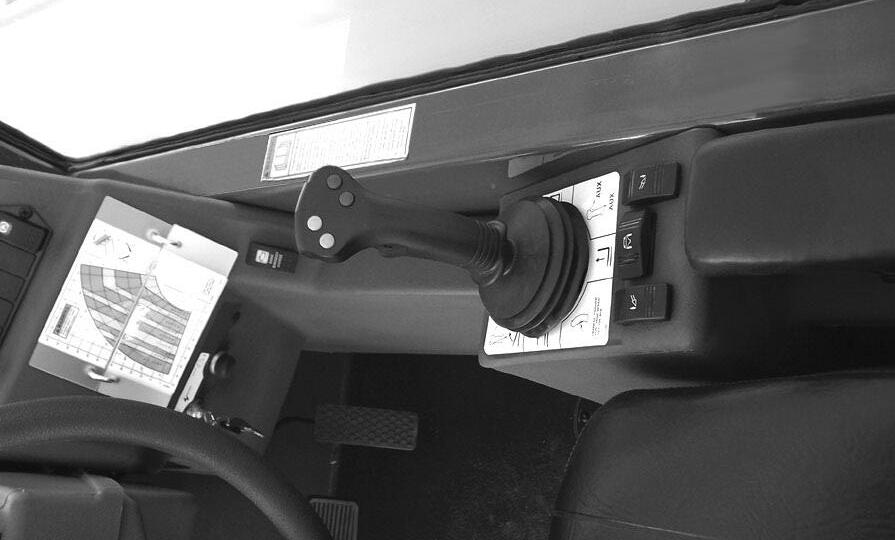

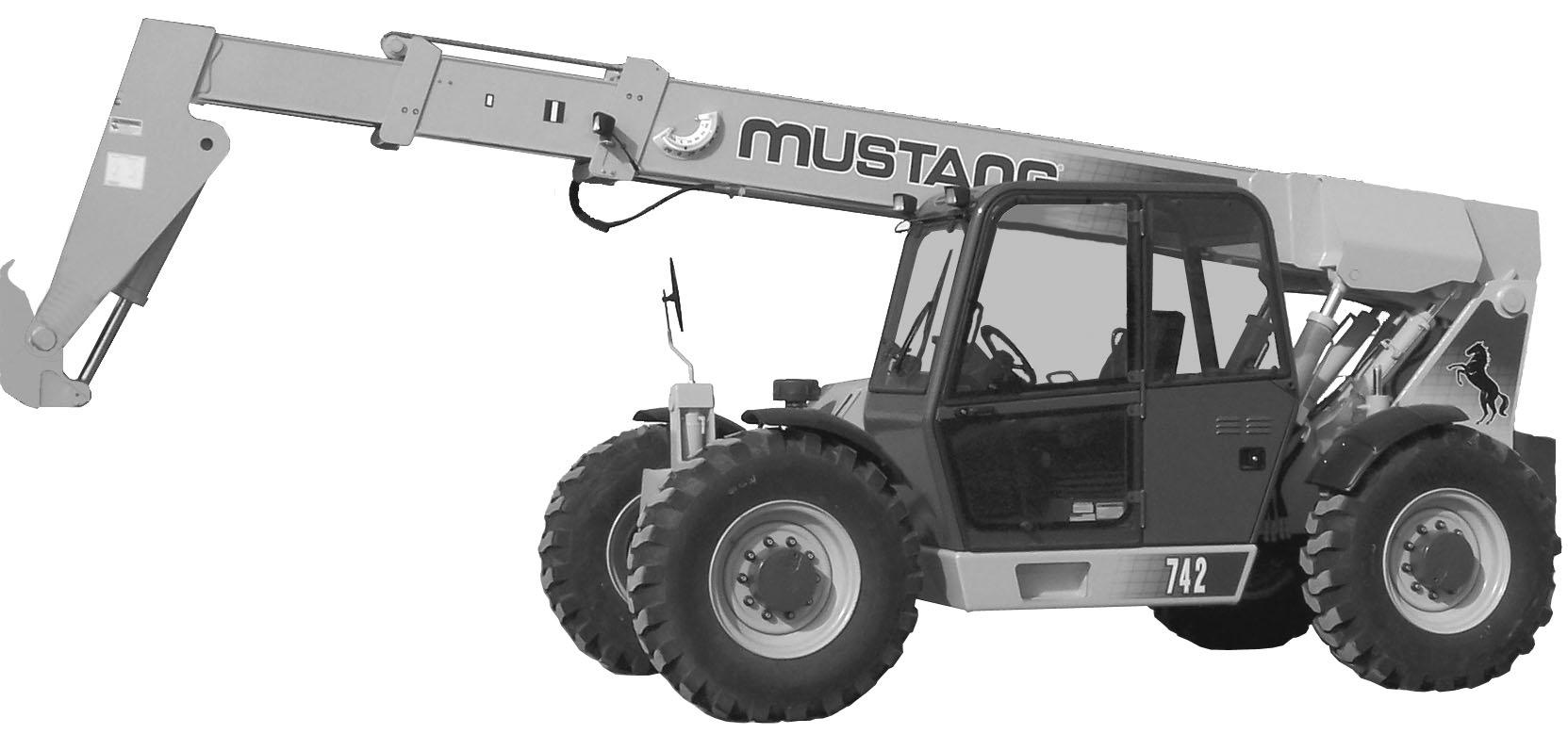

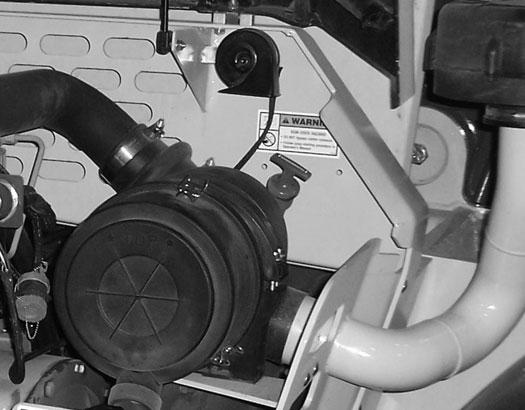

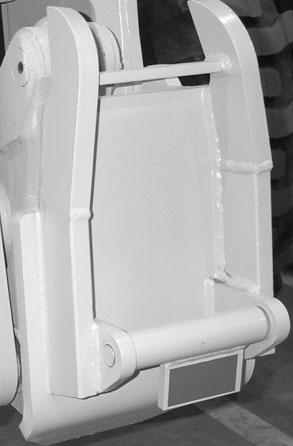

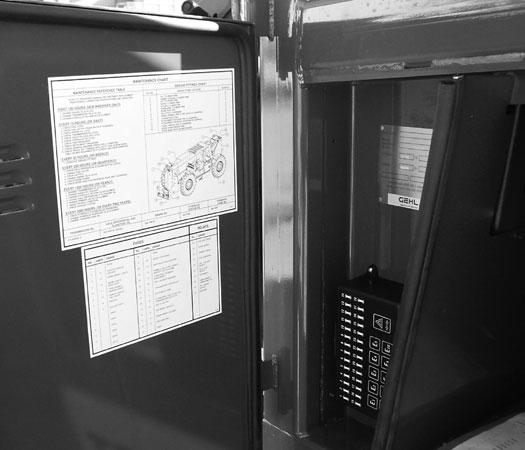

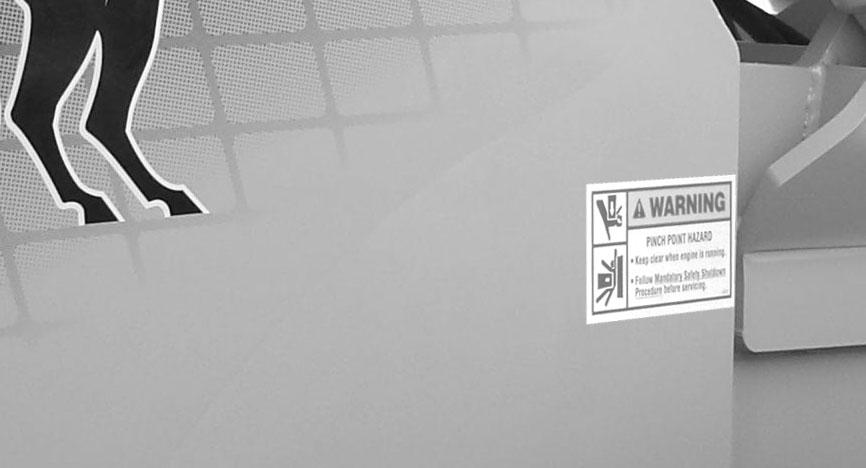

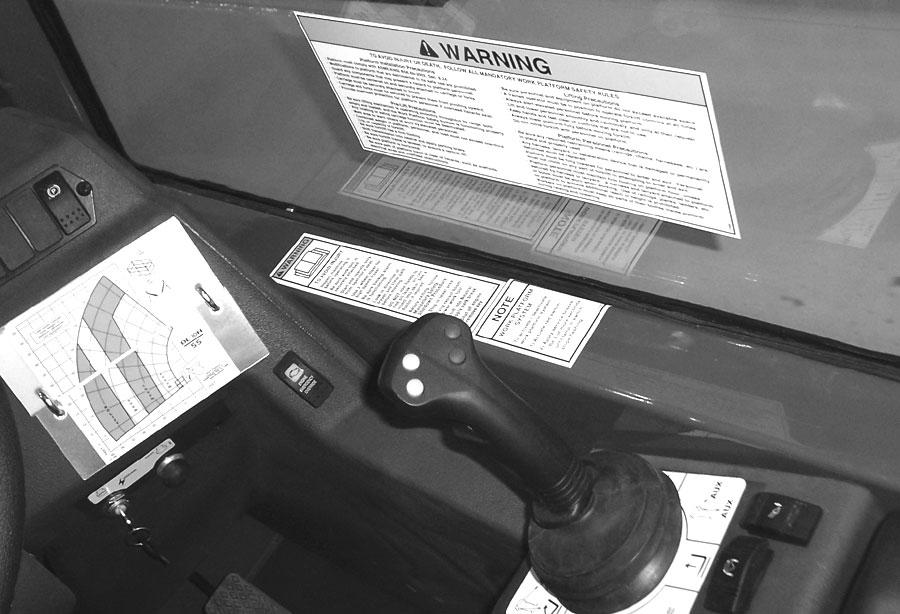

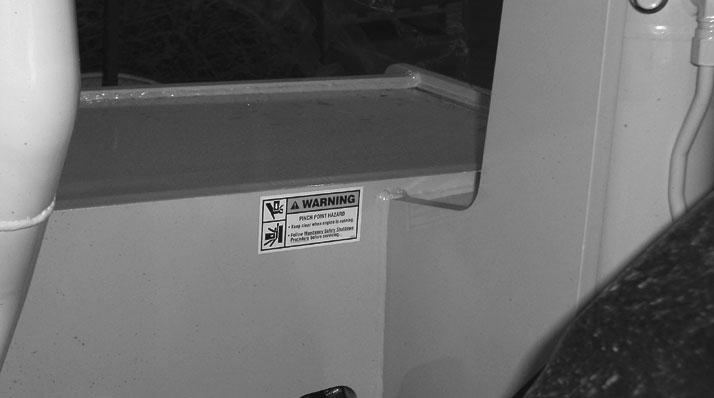

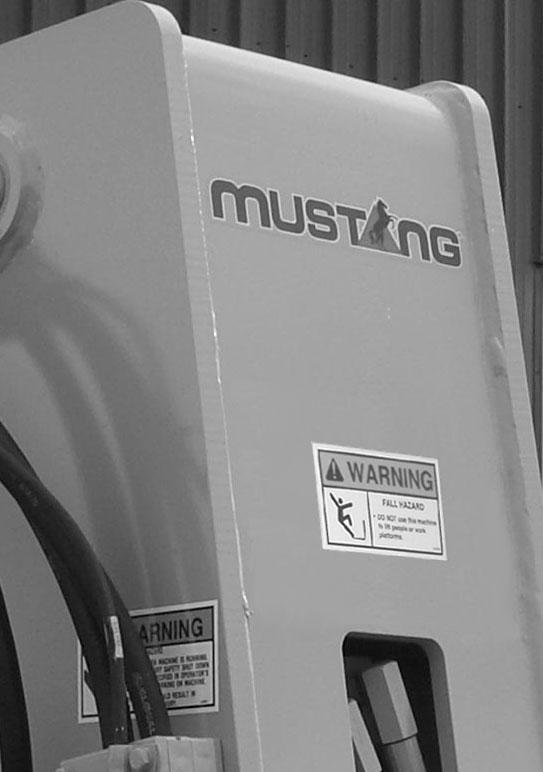

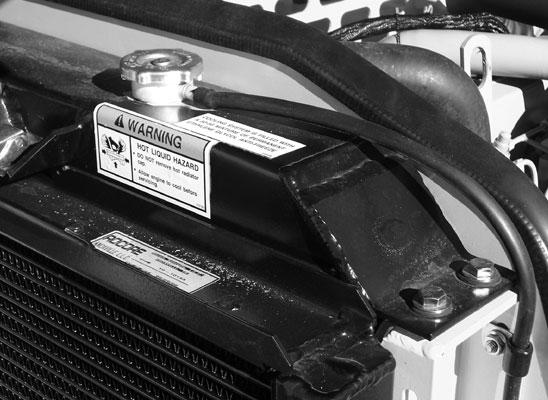

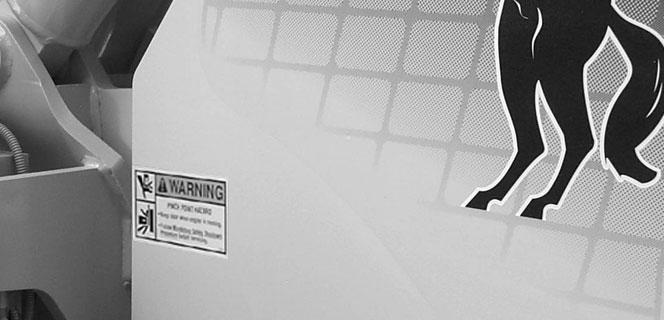

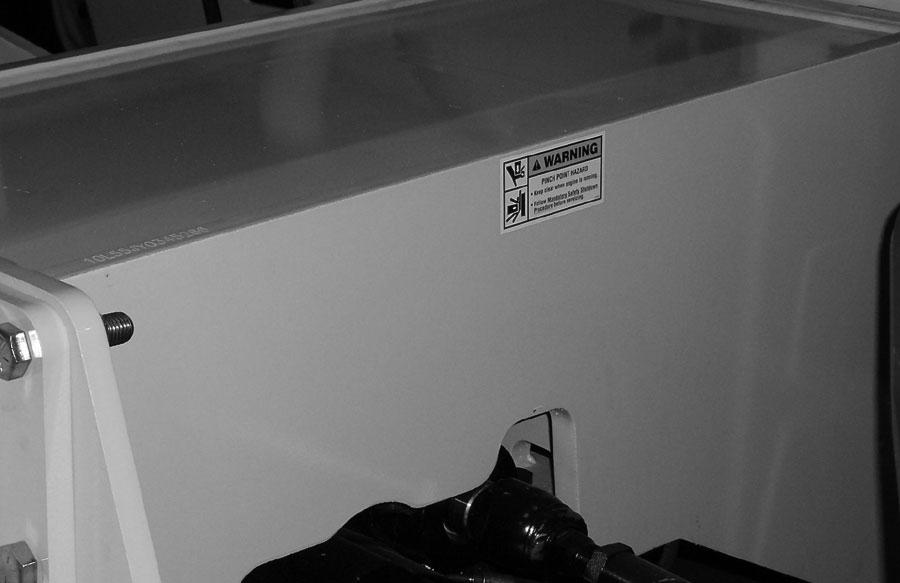

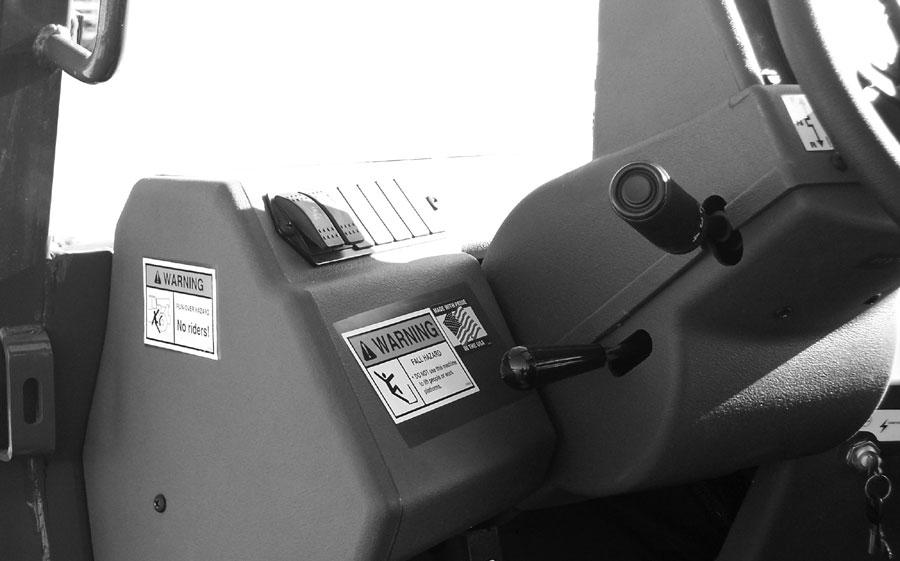

For correct replacement of decals, compare the location photographs to the machine before starting to refinish the unit. Checkoff each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustrations for replacement locations.

NOTE: Refer to the SAFETYchapter of this manual for the specific information provided on the various safety decals.

New Decalapplication

Before applying the new decals, surfaces must be free from dirt, dust, grease and other foreign material. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out decal surface. To apply a pre-mask decal, first remove the backing paper to expose the adhesive side of the decal. Then, properly orient and position the decal onto the clean mounting surface. After the decal is firmly applied and smoothly pressed down, peel off the top covering paper.
