7.8 Charge-Air Cooling

7.8.1 Charge-air cooler – Checking condensate drain for water discharge and obstruction

DANGER Rotating and moving engine parts.

Risk of crushing, danger of parts of the body being caught or pulled in!

• Only run the engine at low power. Keep away from the engine's danger zone.

WARNING High level of engine noise when the engine is running.

Risk of damage to hearing!

• Wear ear protectors.

WARNING Compressed air gun ejects a jet of pressurized air.

Risk of injury to eyes and damage to hearing, risk of rupturing internal organs!

• Never direct air jet at people. • Always wear safety goggles/face mask and ear defenders.

Charge-air cooler – Checking condensate drain for water discharge and obstruction

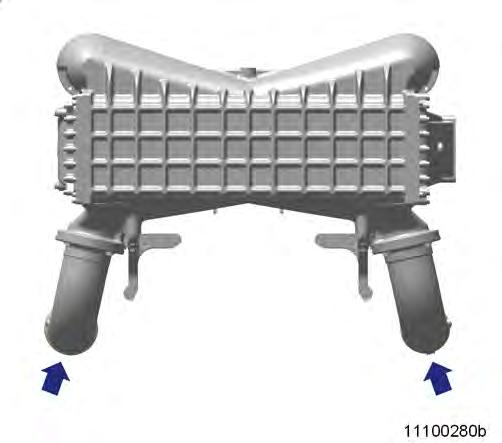

1. With the engine running, check if air emerges from drain bore(s) on the left and right sides on engine driving end. Result: If no air emerges: • Clean condensate drain bore(s). • Blow out with compressed air. 2. If a large amount of coolant is continuously discharged, the charge-air cooler is leaking. Contact Service.

Emergency measures prior to engine start with a leaking charge-air cooler

1. Remove injectors (→ Page 147). 2. Bar engine manually (→ Page 132). 3. Bar engine with starting system to blow out combustion chambers (→ Page 132). 4. Install injectors (→ Page 147).
