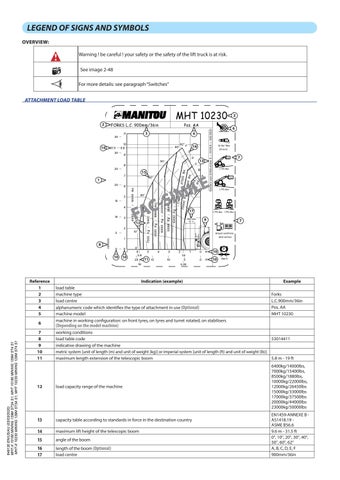

LEGEND OF SIGNS AND SYMBOLS OVERVIEW:
p
e
Warning ! be careful ! your safety or the safety of the lift truck is at risk. See image 2-48 For more details: see paragraph “Switches”
ATTACHMENT LOAD TABLE 2 2
6 3
4 16
14
7
13 15
E L I IM
1
S C FA
17
12
9
7
8 10 10 10
Reference 1 2 3 4 5
649130 EN/US/AU (03/03/2020) MHT-X 10180 MINING 129M ST3A S1, MHT 10180 MINING 129M ST4 S1 MHT-X 10230 MINING 129M ST3A S1, MHT 10230 MINING 129M ST4 S1
6 7 8 9 10 11
11
10
Indication (example) load table machine type load centre alphanumeric code which identifies the type of attachment in use (Optional) machine model machine in working configuration: on front tyres, on tyres and turret rotated, on stabilisers
Example Forks L.C.900mm/36in Pos. AA MHT 10230
(Depending on the model machine)
working conditions load table code 53014411 indicative drawing of the machine metric system [unit of length (m) and unit of weight (kg)] or imperial system [unit of length (ft) and unit of weight (lb)] maximum length extension of the telescopic boom 5.8 m - 19 ft
12
load capacity range of the machine
13
capacity table according to standards in force in the destination country
14
maximum lift height of the telescopic boom
15
angle of the boom
16 17
length of the boom (Optional) load centre
6400kg/14000lbs, 7000kg/15400lbs, 8500kg/1880lbs, 10000kg/22000lbs, 12000kg/26450lbs 15000kg/33000lbs 17000kg/37500lbs 20000kg/44000lbs 23000kg/50000lbs EN1459-ANNEXE B AS1418.19 ASME B56.6 9.6 m - 31.5 ft 0°, 10°, 20°, 30°, 40°, 50°, 60°, 62° A, B, C, D, E, F 900mm/36in
