Switches

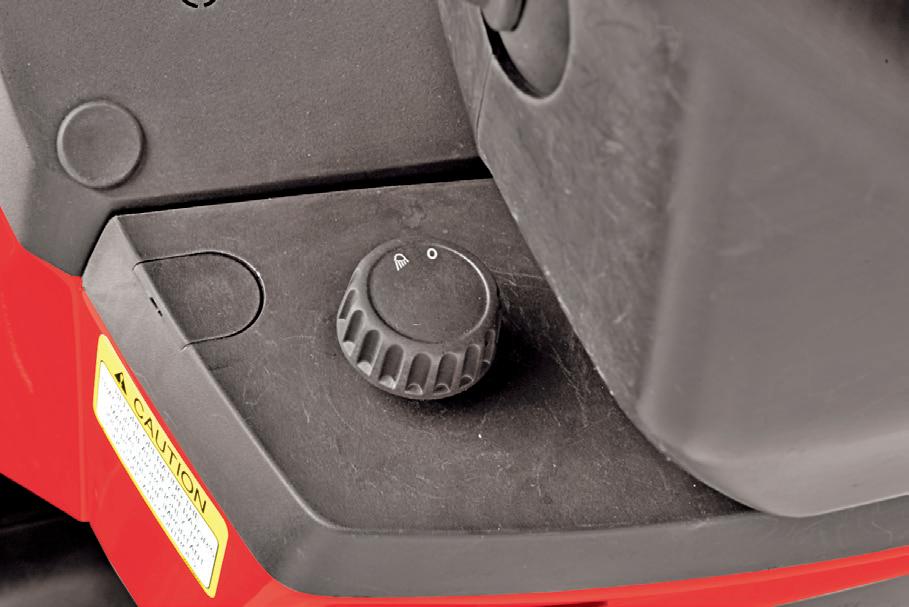

This is a 2-way rotary switch located on the LH side of the

1. Off

2. Illuminates Plough Lamp

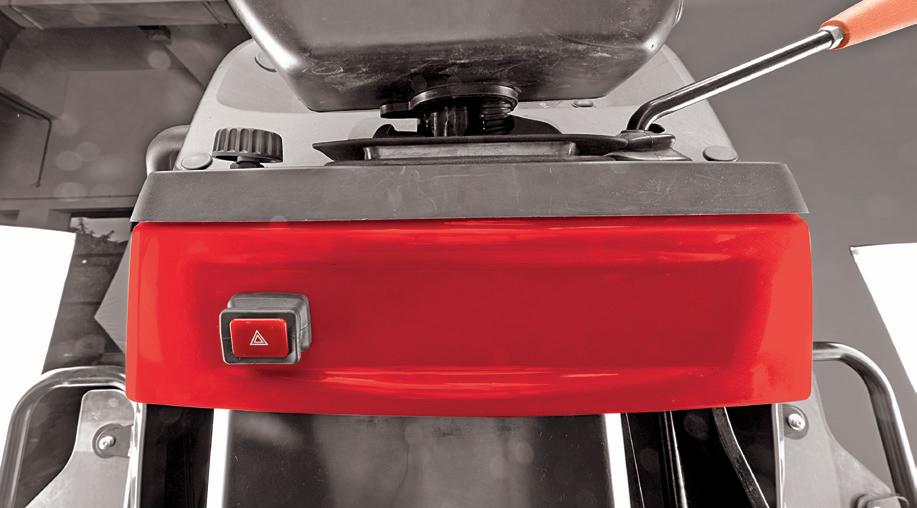

This is push type switch located bottom side of Steering column cover. The operations are as follows.

On Position - Operates left and right turn signal lamp simultaneously. This operation can be performed even if the key switch is in OFF position.

5. Brake Switch

The function of this switch is to automatically turn on the stop lamp when the brake pedal is pressed.

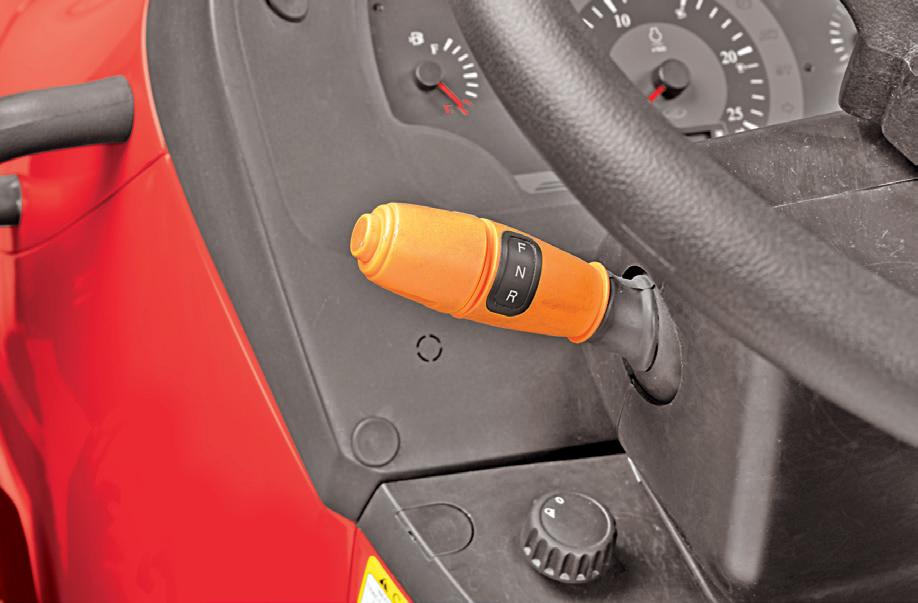

6. Forward Reverse Switch (E)

This is a 3 way lever switch. It operates by lifting the lever then up and down direction and the operations are as follows.

Center : Neutral position.

Forward : Vehicle move in forward direction.

Rearward : Vehicle move in reverse direction.

1. Moving the lever up and down without lifting, can damage the switch.

2. Don’t hold the lever while getting on or off the tractor.
