Switches

Switches

Combination Switch:

It is located in LH side of steering column on dashboard. It consists of:

1.Horn (in centre)

2.Light Switch

3.Turn Signal Switch

Horn

Pressing the horn switch will blow the horn.

Light Switch

It is a 4 positions rotary switch. It operates in clockwise direction and positions are as follows:

1.Off

2.Illuminate Parking Lamps

3.Illuminate low beam of head lamps & Parking Lamps

4.Illuminate high beam of head lamps & Parking Lamps

Turn Signal Switch

This is 3 positions rotary switch. The vertical position of knob operates in both directions and the positions are as follows:

1.Vertical - OFF

2.Left - Operates LH Turn signal Lamp

3.Right - Operates RH Turn Signal Lamp

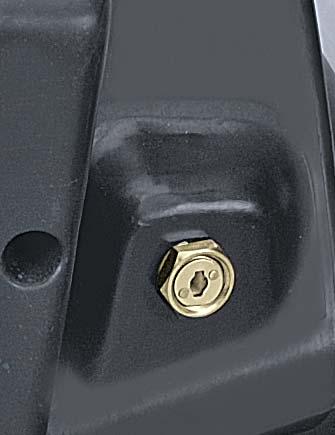

Starter Key Switch

It is a key operated 3 position rotary switch. It is located on RH side of steering column on dashboard. It operates in clockwise direction and positions are as follows:

1.Off

2.It gives readiness to electrical circuit for operation of plow lamp switch, combination switch, instrument cluster.

3.Activates the starting circuit for engine.

Work Lamp Switch

It is a 2 positions rotary switch located in LH side of steering column on dashboard. It operates in clockwise direction and positions are as follows:

1.Off

2.Illuminates the plow lamp

PTO Operation Switches

PTO can be operated by using a combination of "PTO ON/OFF Switch" and "PTO Mode Switch".

To start the PTO, start engine first, choose "AUTO MODE" or "MANUAL MODE".

Then press the PTO ON/OFF switch to start the PTO.

PTO ON/OFF Switch

This is a 2 in 1 switch, located on LH side of steering column on the dashboard.

1.Press the PTO switch to engage the PTO.

2.To disengage the PTO, press the PTO switch again.

PTO MODE switch (PTO Auto/Manual/Off Switch)

This rotary switch enables the operator to choose the AUTO or Manual mode of PTO and even turn-off the PTO when desired.

The Operating positions of knob are as follows:

1.Alignment of OFF - Mark with Pointer - PTO Turn-OFF

The Auto and Manual Mode switch will be activated when the “PTO Engage - Disengage Switch” is in ON position.

2.Alignment of Auto-mark with pointer - Operates AUTO mode

This switch can be used when the "PTO Engage - Disengage Switch" is in ON position.

When this switch is in AUTO-POSITION, the PTO shaft rotation will be stopped as soon as the implement is raised. While this switch is in AUTO-POSITION, if the PC lever is lowered, the PTO shaft will become operative and will be indicated by a CONTINUOUSLY-GLOWING "PTO EngageDisengage Switch".

Tampered electrical wiring or connections will render this feature INEFFECTIVE. In such a case, some Inadvertent movement of personnel near the PTO shaft can prove fatal.
