Controls Controls Controls Controls

Operator Seat Operator Operator Seat Operator Operator Seat

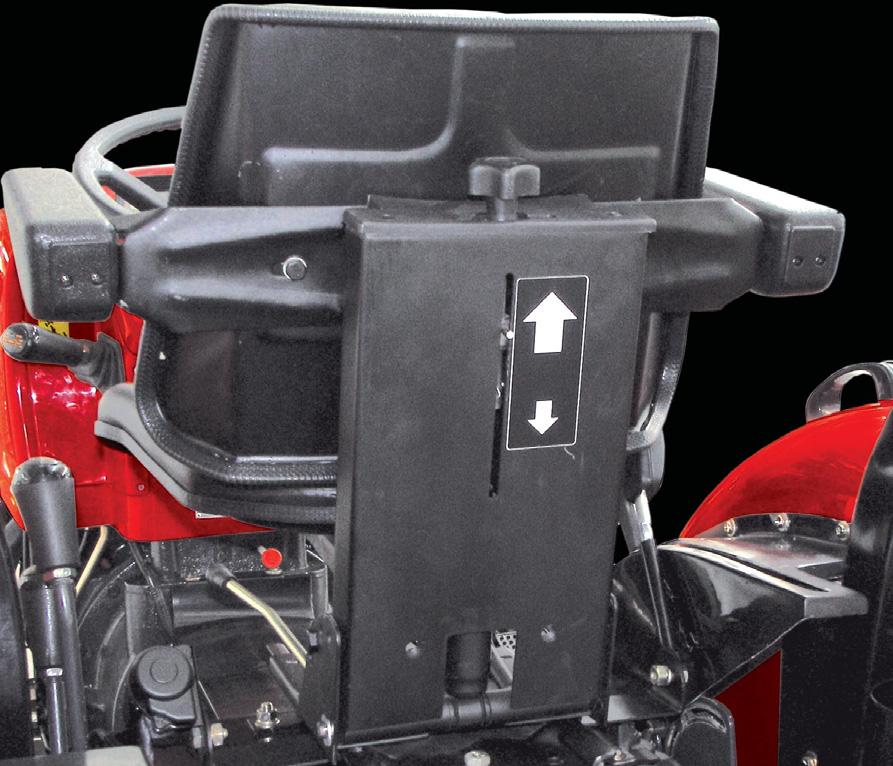

The operator’s seat can be adjusted for position and weight of operator. These adjustments are to be done prior to starting the engine.

Adjusting Seat Position Adjusting Seat Position Position

The seat can be adjusted fore and aft upto 6 inch. To adjust the position of seat, proceed as follows :

1. Sit on the operator seat.

2. Lift the Lever (B) upwards.

3. Move the seat fore-and-aft to adjust the seat to desired position.

4. Ensure that all controls can be accessed easily.

5. Release the Lever. Ensure that the pin of lever is engaged in groove.

Weight Adjustment Weight Adjustment Weight Adjustment Weight Adjustment Weight Adjustment

Optimum seat suspension can be adjusted as per the weight of operator. Turn the knob (D) in clockwise or counterclockwise direction according to the weight of operator.

Using Seat belt Using belt

Use a seat belt when you operate with Roll over protective structure (ROPS) to minimize chance of injury from an accident such as an overturn. Do not jump if machine tips.

Fasten Seat belt Fasten Seat

1. Pull belt end (C) across operator lap.

2. Install tab into buckle (A).

Release Seat belt Release belt

Press red button, the seat belt will automatically retract.

Attempting to adjust the seat while driving the tractor may cause the operator to lose control of the tractor

Do not use seat belt if operating without a ROPS or with an optional folding ROPS in the folded position.

Hand Throttle Operation Hand Throttle

Use the Hand Throttle Lever (A) to set a constant engine speed for stationary operation or for field operation wherever desired.

Increasing Engine Speed: Increasing Engine Speed: Move throttle lever downward.

Engine Tachometer Speeds : a. Low Idle speed - 650 rpm on Engine, adjustable to 950 rpm on Tractor b. Rated engine speed - 2500 rpm. c. High Idle speed - 2700 rpm

Decreasing Engine Speed: Decreasing Speed: Decreasing Engine Speed: Decreasing Speed:

Move throttle lever upward. Constant Speed Setting: Constant Speed Setting: Constant Speed Setting: Constant Speed Setting: Speed Certain operations may require a particular engine speed. This can be achieved by resting the Hand Throttle Lever in a position where you get the desired engine speed.

Flameout cable:

Flameout cable: Pull this trigger(B) to restore fuel supply Pull out this knob(C) to shut off the engine

Foot Foot Throttle Operation

Foot Throttle Operation

Foot Foot Throttle Operation a. Set the hand throttle lever at desired rpm. b. Depress foot throttle pedal(D) to increase Engine rpm. c. Release foot throttle pedal for decreasing Engine rpm to achieve the previous engine speed set by hand throttle lever.

When tractor operation requires repeated speed change, use the foot throttle pedal to temporarily increase engine speed above hand throttle setting. We recommend keeping the hand throttle at minimum and using foot throttle when driving on highway.
