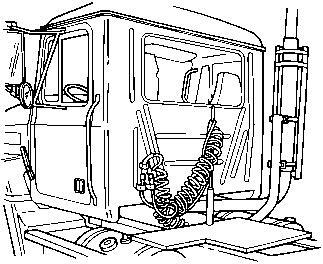

HOSE TENDERS

C0029319

Caution

A void loose hoses. Air lines and tractor - - trailer electrical connections must secur the tractor hose tenders (hose hanger , towel bar , pogo stick, etc.) event them tangling the

Doors

Standard Door Panel

Manual Locks and W indows —

Manual Door Lock

C0029320

Passenger Side (Right) Shown

Storage Pouch

Door Handle Lower V iew Window (Passenger Side Only)

Door Light

Window Crank

Manual Door Lock Push backward lock. Push forward unlock. The lock opening appears red when unlocked.

Door Handle — Lift handle

Door Light The door light automatically comes when the door opened and goes out when the door closed.

Storage Pouch — rigid storage

Lower V iew W indow — Provides safe viewing low lying obstacles construction sites.

W indow Crank — T urn counterclockwise clockwise https://www.truck-manuals.net/

Power Door Panel (Optional)

C0029322

Power Locks and W indows — Driver Side (Left) Shown

Manual Door Lock Door Handle

Left Side Power Window Control Door Light

Right Side Power Window Control Storage Pouch

Power Door Lock

Manual Door Lock — Push backward Push forward The lock opening appears red when

Left Side Power W indow Control Push back button for DOWN, front button for .

Right Side Power W indow Control — Push back button for front button for

Power Door Lock — Push back button lock, front button unlock. The power lock controls both doors.

Note: The right side (passenger) door has a power control for the right side window only https://www.truck-manuals.net/

Door Handle Lift handle

Door Light — The door light automatically comes when the door opened and goes out when the door closed.

Storage Pouch rigid storage

Opening the Cab Door

T o open the door , grasp the front the door handle and pull upward.

Locking the Cab Door

The doors can locked using the manual door lock (item 1 the illustration) a power door lock switch (item 4 the illustration).

Power door lock switches (on both sides the cab) lock and unlock both cab doors the same T o lock the push the rear the rocker

T o unlock the push the front the rocker

T o lock with the door open, push the lock lever forward and release. The lock lever will return the home position and the door will locked when closed.

T o unlock, pull the paddle and open the door .

W Arning

Always lock the doors while driving. This will lessen the chance personal injury . Locking the doors helps event the occupants being ejected the vehicle the event accident.

Power W indow Regulators

T o open the push and hold the rear the rocker switch (item 3 the T o close the push and hold the front the rocker switch. Release the rocker switch stop the window the desired position.
