SWING REDUCTION GEAR

Service specifications

Oil level check...............................................................................Every 250 hours Oil change...................................................................................Every 1000 hours (after the first 250 hours of operation) Grease........................................................................................Every 5000 hours Oil capacity.......................................................................................1.6 gal (6.0 L) Oil type.................................................................................................API GL-4 90

Level

STEP 1

Park the machine on flat, horizontal ground. Stop the engine and remove the starter switch key.

STEP 2

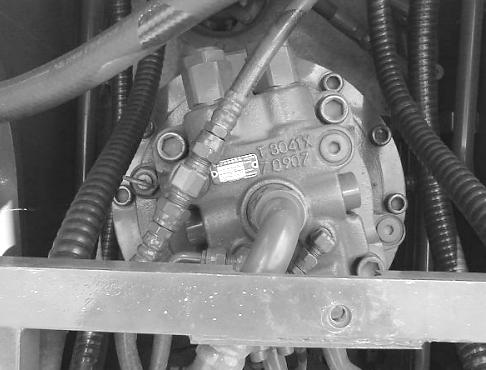

1

BD01G037

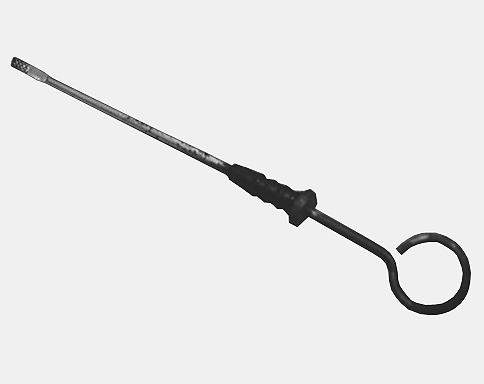

CP98N043 Remove the dipstick. The oil should come up to the hatched area. Add oil if necessary through the filler hole (1).

STEP 3

Install the dipstick

Draining and refilling

STEP 1

Park the machine on flat, horizontal ground. Stop the engine and remove the starter switch key.

STEP 2

BD01G037 Remove the dipstick and the filler plug.

STEP 3

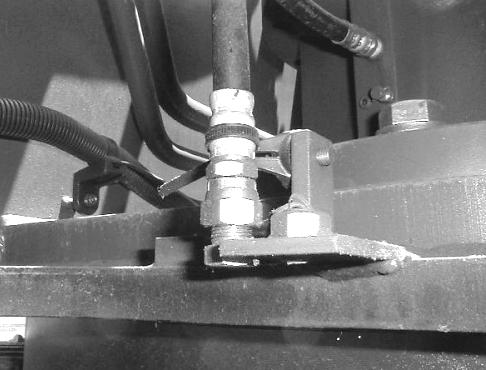

CD00E118 Place a receptacle of a suitable capacity under the upperstructure and remove the drain plug.

STEP 4

Allow the oil to drain. NOTE: The oil takes a relatively long time to drain. IMPORTANT: Check the condition of the drained oil. If it contains metal filings or foreign matter, see your authorized LBX Link-Belt distributor.

STEP 5

Install the drain plug.

STEP 6

BD01G037 Add oil through the filler hole until the level is correct.

STEP 7

Install the dipstick and the filler plug.

STEP 8

Wait ten minutes and then use the dipstick to check the oil level again. If necessary, add more oil through the filler hole. NOTE: When greasing the swing reduction gear, see “Greasing the swing reduction gear”.
