RADIATOR AND OIL COOLER

Service specifications

Check for leakage.......................................................Every 10 hours or every day Clean.............................................................................................Every 250 hours

Cleaning STEP 1 STEP 3

1

2

1

CD00E131 Remove the screws (1) and remove the cover plate (2). Clean between the oil cooler and radiator. When cleaning between Oil Cooler and Radiator Cores care should be taken not to damage “fins” on cores.

STEP 2

BD01G025 Open the access door and clean the outside of the cooler.

CD00E133 Clean the radiator and the oil cooler: ● Dry dust : use compressed air. ● Mud : clean with a hose. ● Greasy deposits : use a pressure washer. IMPORTANT: Make sure your face is protected before using compressed air. IMPORTANT: The use of trichlorethylene is strictly forbidden.

STEP 4

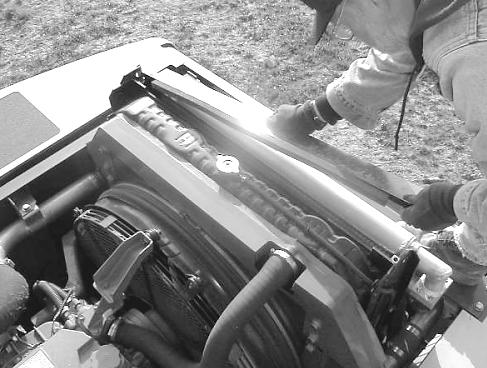

Tilt the oil cooler into position and mount the screws (3).

STEP 5

Install the intake grille (2) and mount the screws (1).
