Control and operation

Working with the machine

Standard control

The additional attachment can be operated alternatively with the left double pedal or with the right joystick. The commutation of control can be activated with the key switch S114 on the rear right control desk.

Turn the key switch S114 to select the joystick position

The additional attachment is now operated with the right joystick (movements to e and f).

The bucket tilt function is now operated with the left double pedal (m-k). The key is locked in the switch S114

Turn the key switch S114 to select the foot pedal position.

The additional attachment is now operated with the left double pedal again. The key can be removed from the switch S114

Proportional control

Mini joystick / Joystick

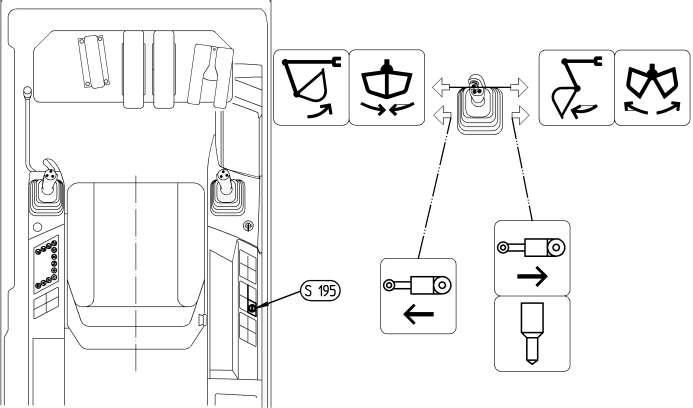

The additional attachment can be operated alternatively with the right mini joystick or with the right joystick. The commutation of control can be activated with the key switch S195 on the rear right control desk.

Turn the key switch S195 to select the joystick position

The additional attachment is now proportionally operated with the right joystick (movements to e and f).

The bucket tilt function is operated with the right mini joystick (movements to X- and X+).

The key is locked in the switch S195

Turn the key switch S195 to select the mini joystick position

The additional attachment is proportionally operated with the right mini joystick.

The key can be removed from the switch S195

Mini joystick / Pedals

Fig. 3-83 Commutation of proportional control for an additional attachment

The additional attachment can be operated alternatively with the right mini joystick or with the left pedals. The commutation of control can be activated with the touch on the right control desk.

Press the touch.

LED in the touch illuminates.

The additional attachment is proportionally operated with the right mini joystick.

Press the touch.

LED in the touch goes out.

The additional attachment is proportionally operated with the left pedals.

3.4.14Special control system of the joysticks

At delivery, the control system of the joysticks, i. e. the correspondence between the actuated directions at the joystick levers and the resulting working movements of the excavator always correspond to the standard control according to ISO. You can find the description of this ISO-control-systems in the subchapters "Working attachment control" and "Operating the swing gear" in this manual.

"commutation for special control system".

With this option, the commutation from the ISO control system into the special control system is achieved by commuting the switching lever situated on the floor of the cabin, under the right joystick.

Danger!

Risk of accident due to an unintentional movement by an uninformed machine operator!

With switched on special control system, the correspondence between movements of the joystick and the induced working movements is changed.

With the switching lever in PCSA position, the excavator can be operated only according to ISO-control-system.

It is the responsibility of the owner of the machine to authorize an operator to operate the machine with the AHS11 proportional control.

Turn the switching lever to position 1. the special control system is turned on, now the joystick functions correspond to the information on the label pos. A which is sticked on the side window of the cab.

The label A is specific to the special control system installed on the machine and ordered by the customer.

Fig. 3-85 Instruction plate A and warning plate B

The label B informs that the excavator is fitted with a special control system which can be activated with the switching lever.

Caution!

Make sure that stickers A and B are present on the machine and are well readable! If necessary they can be reordered at the LIEBHERR Spare Parts Department.

3.4.15Oil flow reduction for long working attachment (option)

While using a long working attachment (long bank attachment, ...), the key switch S168 allows to limit the speed of the whole working attachment.

Note:

To limit all the excavator movements, not just the movements of the working attachment, use the push button S354 of the control unit.

Using working equipment with oil flow reduction: Turn key switch S168 into position 1. Value EV1 on display is at 50%. Oil flow reduction is available. Use the equipment.

Using working equipment with normal oil flow: Turn key switch S168 into position 0. Value EV1 on display is at 100%. Normal oil flow is available.

3.4.16Cut-off of attachment movements (option)

The movement cut-off restricts the movements of the boom cylinder or the stick cylinder. It enables: orking height, working depth, maximal reach, minimal reach).

Danger!

The movement cut-off is not a safety device! It is only an assistance to the driver during an attachment movement near a prohibited zone!

Caution!

Danger of rocking motion of the machine and oscillations of the working tool! Avoid fast attachment movements close to a cut-off point.

Note!

The movement is only cut off to enter into the prohibited zone. The movement to leave it remains possible.

Adjustment of the movement cut-off point

At the time of the cut-off, the attachment can enter into the prohibited zone in case of oscillations of the working tool, variations of its dimensions (open/close position) or attachment inertia.

Danger!

The machine driver is responsible for the adjustments precision!

You must keep a safety margin of at least 1.5 m from the prohibited zone.

As soon as the proximity switch detects the reflector, the movement is cut off. The proximity switch or the reflector position is adjustable depending on the configurations.

Bring the attachment into the desired cut-off position.

Loosen the nut 2 of the proximity switch 3 (or reflector).

Move the proximity switch 3 (or reflector) on the rail 4. Place it face to face with the reflector 1 (or proximity switch).

If the proximity switch 3 does not detect the reflector 1 when they are face to face, move them closer.

Retighten the nut 2 of the proximity switch 3 (or reflector). Check the actual cut-off position of the attachement.

If necessary, repeat the adjustment procedure and check the cut-off position again.

Note!

If the proximity switch and the reflector are difficult to be reached in the cut-off position:

Bring the attachment in a stretched and close to the ground position. Adjust approximately the cut-off point. Correct it by successive approaches until the desired cut-off position is reached.

Unlocking of movements cut-off

Danger!

Danger of personal injury and material damage in case of attachment movements within a prohibited zone by the movement cut-off! The operator is in any case responsible for the accidents which can occur when the movement cut-off is unlocked.

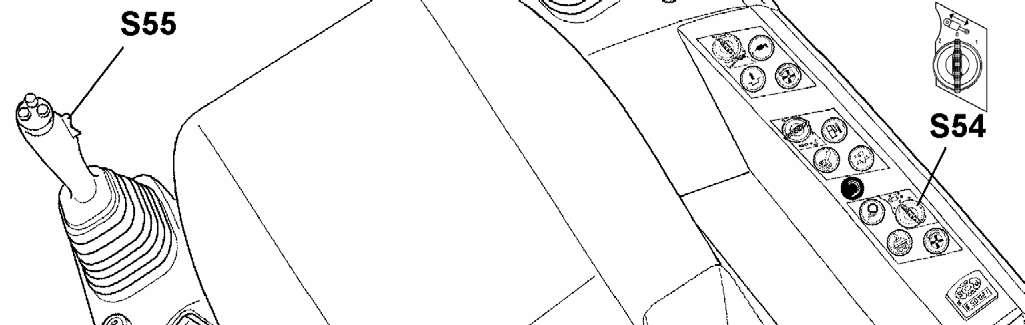

Fig. 3-88 Unlocking of movement cut-off

Bring the attachment into the cut-off position. Turn the key switch S54 to position I

Tilt up or down the switch S55 of the left joystick and keep it pressed. The cut-off of attachement movements is unlocked. It is possible to move the attachment within the prohibited zone as long as the switch S55 is kept pressed.

Turn the key switch S54 to position 0 The movement cut-off is actuated again.

If two movement cut-offs are fitted on the machine attachment, turn the key switch S54 to position II to unlock the second cut-off.

Note!

For the machines for the North-American market and fitted with a lifting magnet: Use the switch S5L of the left joystick to unlock the cut-off.

3.4.17Use of the excavator for lifting loads overhead

Under "lifting loads overhead" it is understood the lifting, transporting and unloading of loads requiring a securing method (ropes, chains, or other permitted lifting accessories) and where personnel are required to assist in securing and unloading the load. This includes, for example, the lifting and unloading of pipes, shaft-top supporting rings or containers.

Danger!

An hydraulic excavator may only be operated for lifting loads overhead if all the prescribed safety devices are present and functioning correctly.

In accordance with European standard EN 474-5, and so to guarantee the protections of the persons attaching or removing the loads during lifting operations, the machines used for lifting loads overhead must be equipped with the following safety devices: a load hooking system ensuring the safe attaching and removing of the loads (optional equipment) an overload warning device (optional extra) a boom lowering control device (such as load check valves) to prevent unintentional lowering or dropping of the boom because of the weight of the load, which could happen if a line in this hydraulic circuit suddenly develops a leak (for example, should a hydraulic line break or a hose burst,...). This boom lowering control device must correspond with the requirements of ISO 8643. a rated lift capacity chart (commonly called load chart), attached inside the cab and within the view of the operator..

Safe hooking systems include for example lifting hooks which are mounted in place of the bucket. Safety lifting hooks welded directly to the bucket are also allowed.

The overload warning device must alert the machine operator visually or acoustically if the permitted load value has been reached or exceeded, according to the rated lift capacity chart.

Such a boom lowering device can be installed as an option on all models up to R924C, it is serially installed on all models R934C and above.

If the points referred to above are not or are only partially fulfilled, the machine may not be used for lifting loads overhead.

Every LIEBHERR hydraulic excavator can be fitted with all the safety devices required for lifting loads operation.

Danger!

Only employ sling ropes and accessories which are permitted for lifting operation, regularly checked and in good condition.

No person may fasten or unfasten a load without approval of the operator and this person may only approach the load from one side. The operator may only approve this action when the excavator has stopped and the attachment is not moving.

Never lift loads over people.

3.4.18Overload warning system (option)

Description

The overload warning system indicates to the machine operator when the maximum permitted load capacity is reached or exceeded.

The permitted load capacity depends on the configuration of the machine (undercarriage, working attachment). The maximum load capacity can be found on the load capacity chart in the operator's cab.
