Control and operation

Installation and removal of attachment parts integrated lifting hook can exceed or fall short of the load carrying capacity of the carrier device.

When operating, it should be ensured that the values for the carrier device / quickchange adapter given in the load chart and the technical data are adhered to.

Load hoisting work can be carried out with attached or dismounted work tools. With dismounted work tools, it is sensible to fully insert the locking pins when carrying out hoisting work. This prevents the load take-up device being turned round too strongly by the locking pins and damaged.

Danger!

Never use the take-up hook 6 to fasten a load because there is no secure hold for the load take-up device, eg. rope or chains, in the take-up hook. Before using for hoisting work, deactivate the quick-change adapter. LED in switch S19 has gone out.

Release button S47

To cancel the buzzer (warning tone)

the quick-change adapter is not locked or is incorrectly locked.

After putting down the work tool, the buzzer (warning tone) continues to sound if the locking pins are not removed.

When the overload warning device is switched on, the warning tone for the quickchange adapter can be cancelled.

If no new work tool is to be taken up, it is sensible to switch off the warning tone so avoid constant noise disturbance. Also, another buzzer (overload warning device) can be heard more easily.

Press switch S349

The buzzer will switch off. en will continue to be displayed. The acoustic warning device will only activate automatically once the locking pins have been removed again.

To reactivate the warning tone for the quick-change adapter, remove the locking

The buzzer (warning tone) for monitoring the quick-change adapter is reactivated.

coupling system (option)

LIKUFIX enables automatic coupling of hydraulic lines in connection with the hydraulic quick-change adapter. The machine operator does not have to connect or separate hydraulic lines for work tools himself.

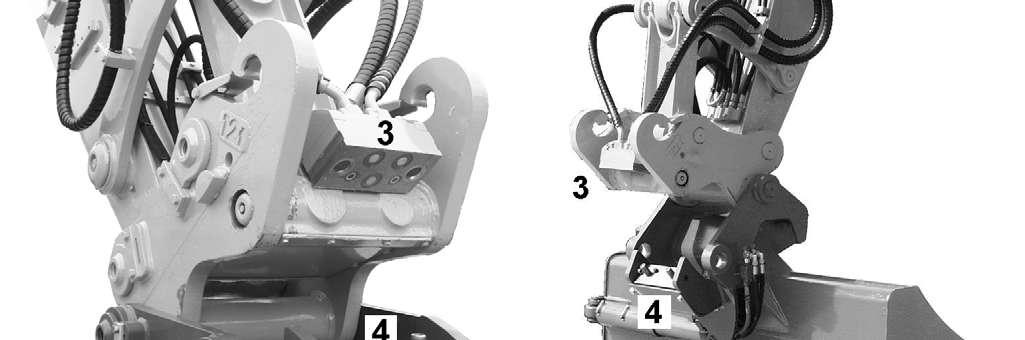

1 Protective cover on quick-change adapter

2 Protective covering on work tool

3 LIKUFIX hydraulic coupling on quick-change adapter

4 LIKUFIX hydraulic coupling on work tool

5 Alternative hydraulic coupling on work tool

Attaching and dismounting work tools

Connecting

Please also note:

Before attaching, remove the protective coverings on the quick-change adapter 1 and the work tool 2

Always keep hydraulic couplings 3 and 4 clean. Perform a visual check for cleanliness before attaching. If necessary, clean all coupling parts and the sealing surfaces with a clean, oil-soaked cloth.
