TRAVEL MOTOR

Removal k Lower the working equipment until it is resting on the ground, and stop the engine. k Release all residual pressures from all circuits and from the tank. a PC14R-3 with travel increment and PC16R-3. Also disconnect the travel increment hose (4) and drain hose (5). a Plug lines and holes to prevent contamination.

(For details, see "20 CONTROLS AND ADJUSTMENTS").

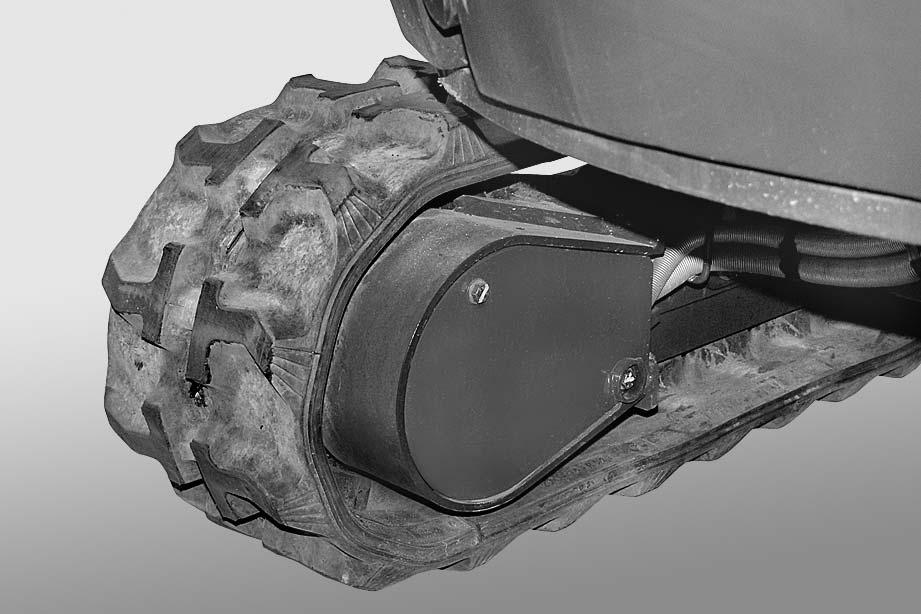

1 -Remove the protective cover (1).

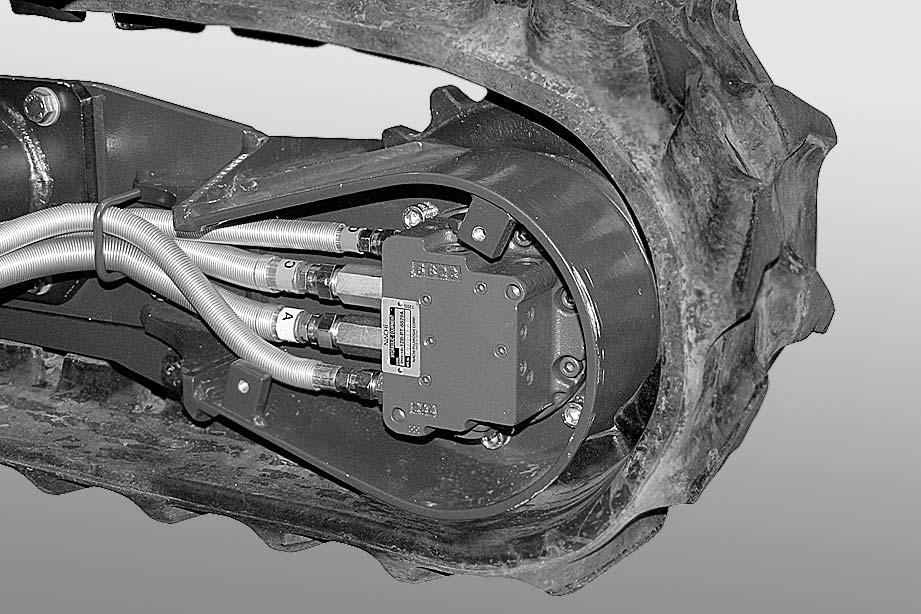

2 -Disconnect the hydraulic feed lines (3) from the motor (2).

3 -Take out the screws (6) that secure the motor (2).[*1]

4 -Remove the motor (2).

Installation

•To install, reverse the removal procedure. [*1]

2 Motor screws: Loctite 262

3 Motor screws: 75 Nm

1 -Start the engine and bleed air from the travel motors. (For details, see "20 CONTROLS AND ADJUSTMENTS").

2 -Stop the engine and check the oil level in the tank. If necessary, top it up.
