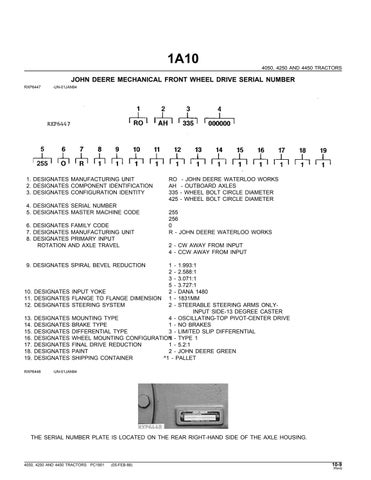

1A10 4050, 4250 AND 4450 TRACTORS
JOHN DEERE MECHANICAL FRONT WHEEL DRIVE SERIAL NUMBER RXP6447
-UN-01JAN94
1. DESIGNATES MANUFACTURING UNIT 2. DESIGNATES COMPONENT IDENTIFICATION 3. DESIGNATES CONFIGURATION IDENTITY 4. DESIGNATES SERIAL NUMBER 5. DESIGNATES MASTER MACHINE CODE 6. DESIGNATES FAMILY CODE 7. DESIGNATES MANUFACTURING UNIT 8. DESIGNATES PRIMARY INPUT ROTATION AND AXLE TRAVEL
9. DESIGNATES SPIRAL BEVEL REDUCTION
10. DESIGNATES 11. DESIGNATES 12. DESIGNATES 13. 14. 15. 16. 17. 18. 19.
DESIGNATES DESIGNATES DESIGNATES DESIGNATES DESIGNATES DESIGNATES DESIGNATES
RXP6448
RO AH 335 425
- JOHN DEERE WATERLOO WORKS - OUTBOARD AXLES - WHEEL BOLT CIRCLE DIAMETER - WHEEL BOLT CIRCLE DIAMETER
255 256 0 R - JOHN DEERE WATERLOO WORKS 2 - CW AWAY FROM INPUT 4 - CCW AWAY FROM INPUT 1 2 3 5 2 1 2
-
1.993:1 2.588:1 3.071:1 3.727:1 INPUT YOKE DANA 1480 FLANGE TO FLANGE DIMENSION 1831MM STEERING SYSTEM STEERABLE STEERING ARMS ONLYINPUT SIDE-13 DEGREE CASTER MOUNTING TYPE 4 - OSCILLATING-TOP PIVOT-CENTER DRIVE BRAKE TYPE 1 - NO BRAKES DIFFERENTIAL TYPE 3 - LIMITED SLIP DIFFERENTIAL WHEEL MOUNTING CONFIGURATION 1 - TYPE 1 FINAL DRIVE REDUCTION 1 - 5.2:1 PAINT 2 - JOHN DEERE GREEN SHIPPING CONTAINER ^1 - PALLET
-UN-01JAN94
THE SERIAL NUMBER PLATE IS LOCATED ON THE REAR RIGHT-HAND SIDE OF THE AXLE HOUSING.
4050, 4250 AND 4450 TRACTORS PC1901
(05-FEB-88)
10-9
