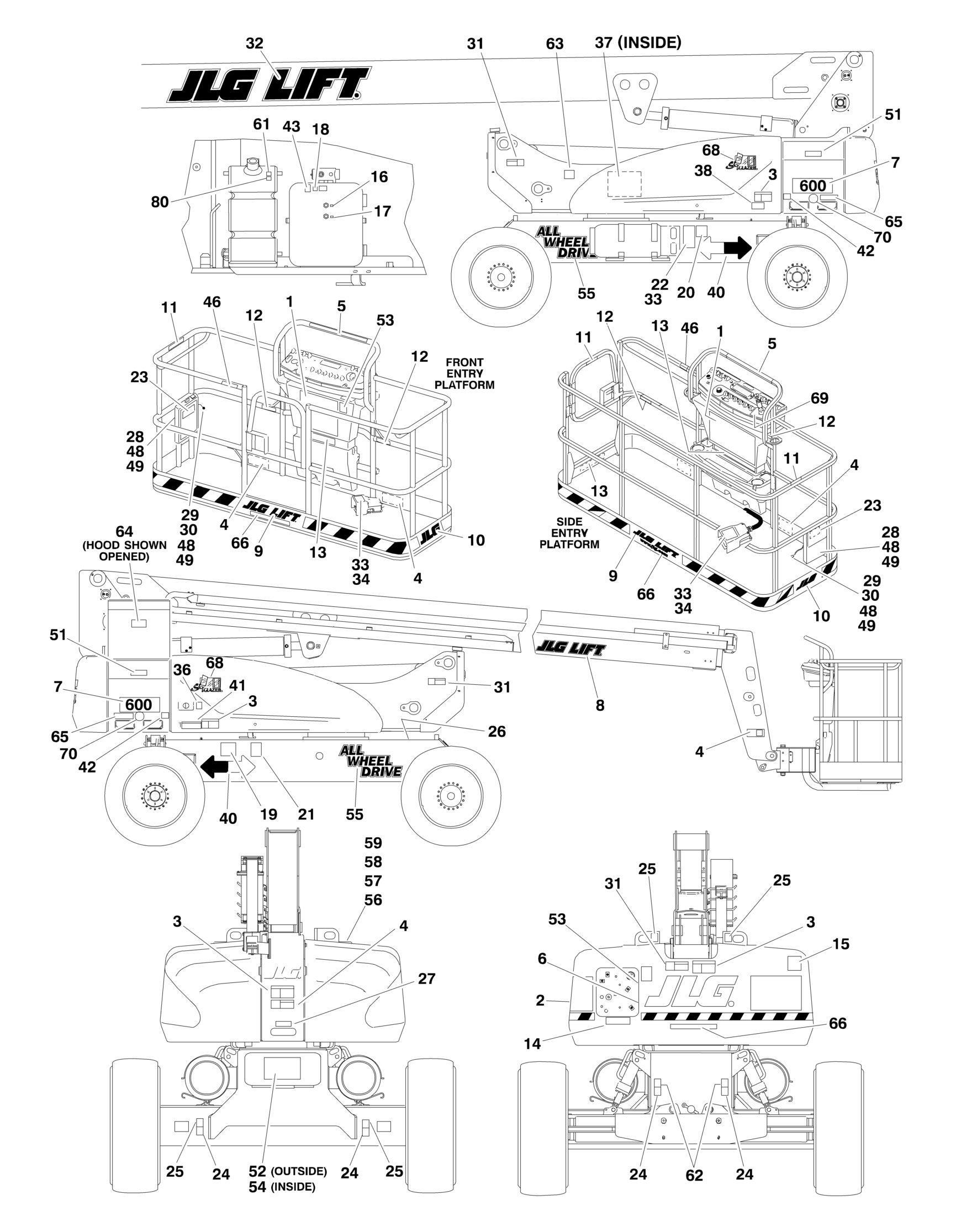

FIGURE 8 1. DECALS INSTALLATION ANSI SPEC
FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC
FIGURE 8-1. DECALS INSTALLATION - ANSI SPEC
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD DECAL INSTALLATION 0270031 Ref Standard Decal Installations E600 0270033 Ref Standard Decal Installations E600J 0270036 Ref Standard Decal Installations E600JP 0270032 Ref Standard Decal Installations M600 0270034 Ref Standard Decal Installations M600J 0270035 Ref Standard Decal Installations M600JP 0270129 Ref ANSI Decals 0259937 Ref JLG Decals (E/M600 & E/M600J) 0270869 Ref JLG Decals (E/M600JP) 1 1703797 1 Decal - Danger/Warning (Platform) 2 1704575 1 Decal - Danger/Warning (MTB) 3 1703805 4 Decal - Electrocution 4 1703804 3 Decal - Crushing 5 1704661 1 Decal - Legend (Platform) 6 Ref Decal - Legend (Ground Control) Options: 6 1704579 1 Decal - Legend (Ground Control) (Prior to SN 0300100373) 6 1707035 1 Decal - Legend (Ground Control) (SN 0300100373 through
0300219271)
7 Ref Decal - Model Designation Options: 7 1704490 2 Decal - Model Designation E600 7 1704492 2 Decal - Model Designation E600J 7 1704495 2 Decal - Model Designation E600JP 7 1704491 2 Decal - Model Designation M600 7 1704493 2 Decal - Model Designation M600J 7 1704494 2 Decal - Model Designation M600JP 8 1702860 1 Decal - JLG Lift (5in) 9 1702774 1 Decal - JLG Lift (3-1/2in) 10 Ref Decal - JLG Options: 10 1702773 2 Decal - JLG E/M600 & E/M600J (JLG) 10 1704200 2 Decal - JLG E/M600JP (Jib Plus) 11 1702868 2 Decal - No Hands 12 1704277 3 Decal - Attach Lanyard 13 Ref Decal - 500 LBS Max Capacity (Platform) Options: 13 1701645 2 Decal - 500 LBS Max Capacity (Platform) (Prior to SN
0300142694)
13 1001121801 2 Decal - 500 LBS Max Capacity (Platform) (SN 0300142694
through 0300219271)
14 Ref Decal - 500 LBS Max Capacity (Ground) Options: 14 1702688 1 Decal - 500 LBS Max Capacity (Ground) (Prior to SN
0300100373)
14 1707013 1 Decal - 500 LBS Max Capacity (Ground) (SN 0300100373
through 0300142693)
14 1001121814 1 Decal - 500 LBS Max Capacity (Ground) (SN 0300142694
through 0300219271)
15 3251813 1 Decal - USA 16 1701502 1 Decal - Hydraulic Oil Level High 17 1701503 1 Decal - Hydraulic Oil Level Low 18 1701504 1 Decal - Hydraulic Oil 19 1702153 1 Decal - Inspection Only (Prior to SN 0300138701) 20 See Note NSS Decal - Bar Code (Note: Not Available for Purchase)
REV
2 2 2 4 4 4 D C I
ITEM PART NUMBER QTY DESCRIPTION
21 Ref Decal - Patent Options: 21 1700584 1 Decal - Patent (Prior to SN 0300161219) 21 1001131269 1 Decal - Patent (SN 0300161219 through 0300219271) 22 See Note NSS Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 2 Decal - Arrow 27 Ref Nameplate Options: 27 3251243 1 120V/60Hz 27 3252507 1 220V/50-60Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Lanyard Only (Prior to SN 0300143953) 30 0641408 AR Bolt 1/4in-20NC x 1in 31 1703953 3 Decal - Warning/Crushing 32 1702862 1 Decal - JLG Lift (12in) 33 3820001 AR Rivet 34 3252347 1 Nameplate - Footswitch 35 1704708 4 Decal - Max Tire Load 36 1701644 1 Decal - Charger 37 1704705 1 Decal - Manual Descent 38 1702901 1 Decal - Instructions Inside 40 1701501 2 Decal - Arrow 41 1704248 1 Decal - Battery Charger Instructions 42 1702155 2 Decal - Battery Disconnect 43 1704412 1 Decal - Oil Chart 46 Ref Decal - Prop 65 Options: 46 Not Required 0 Decal - Prop 65 E600, E600J & E600JP 46 1702962 1 Decal - Prop 65 M600, M600J & M600JP 48 3311405 AR Locknut 1/4in-20NC 49 4711400 AR Flatwasher 51 1703813 2 Decal - Warning Battery Ventilation 52 3252673 1 Decal - Lift Diagram 53 Ref Decal - Generator Danger Options: 53 Not Required 0 Decal - Generator Danger E600, E600J & E600JP 53 1704286 1 Decal - Generator Danger M600, M600J & M600JP 54 1704254 1 Decal - Cable Routing 55 Ref Decal - All Wheel Drive Options: 55 Not Required 0 Decal - All Wheel Drive 2WD 55 1704724 2 Decal - All Wheel Drive 4WD 56 Ref Cover, Exhaust Hole Options: 56 1670954 1 Cover, Exhaust Hole E600, E600J & E600JP 56 Not Required 0 Cover, Exhaust Hole M600, M600J & M600JP 57 3900283 AR Screw, Button Head 58 4711600 AR Flatwasher 3/8in Thin 59 3311605 AR Locknut 3/8in-16NC 61 Ref Decal - Fuel Options 61 Not Required 0 Decal - Fuel E600, E600J & E600JP 61 1701505 1 Decal - Fuel M600, M600J & M600JP 62 1701499 2 Decal - No Lift 63 1702391 2 Decal - Warning Hand Crushing
REV
ITEM PART NUMBER QTY
DESCRIPTION
64 1704725 2 Decal - Tip Over (Battery Weight) 65 1704723 2 Decal - Patents Pending Only (Prior to SN 0300143328) 66 1704885 AR Decal - Website Options: 66 Ref Decal - Website (Prior to SN 0300176058) 66 Ref Decal - Website (SN 0300176058 through 0300219271) 67 0641406 4 Bolt, 1/4in-20 x 3/4in (Not Shown) 68 See Note 2 Sky Accessory Decal (Note: See SPECIAL OPTIONS SECTION for Breakdown) 69 1705351 1 Decal - Drive/Steer Instructions (Machines with Drive Orientation Only) 70 1001121510 2 Decal - Hybrid (M600/M600J/M600JP) (SN 0300143328 through
0300219271)
80 1001108923 1 Decal - EPA/Carb Fuel Spec Only (SN 0300134976 through
