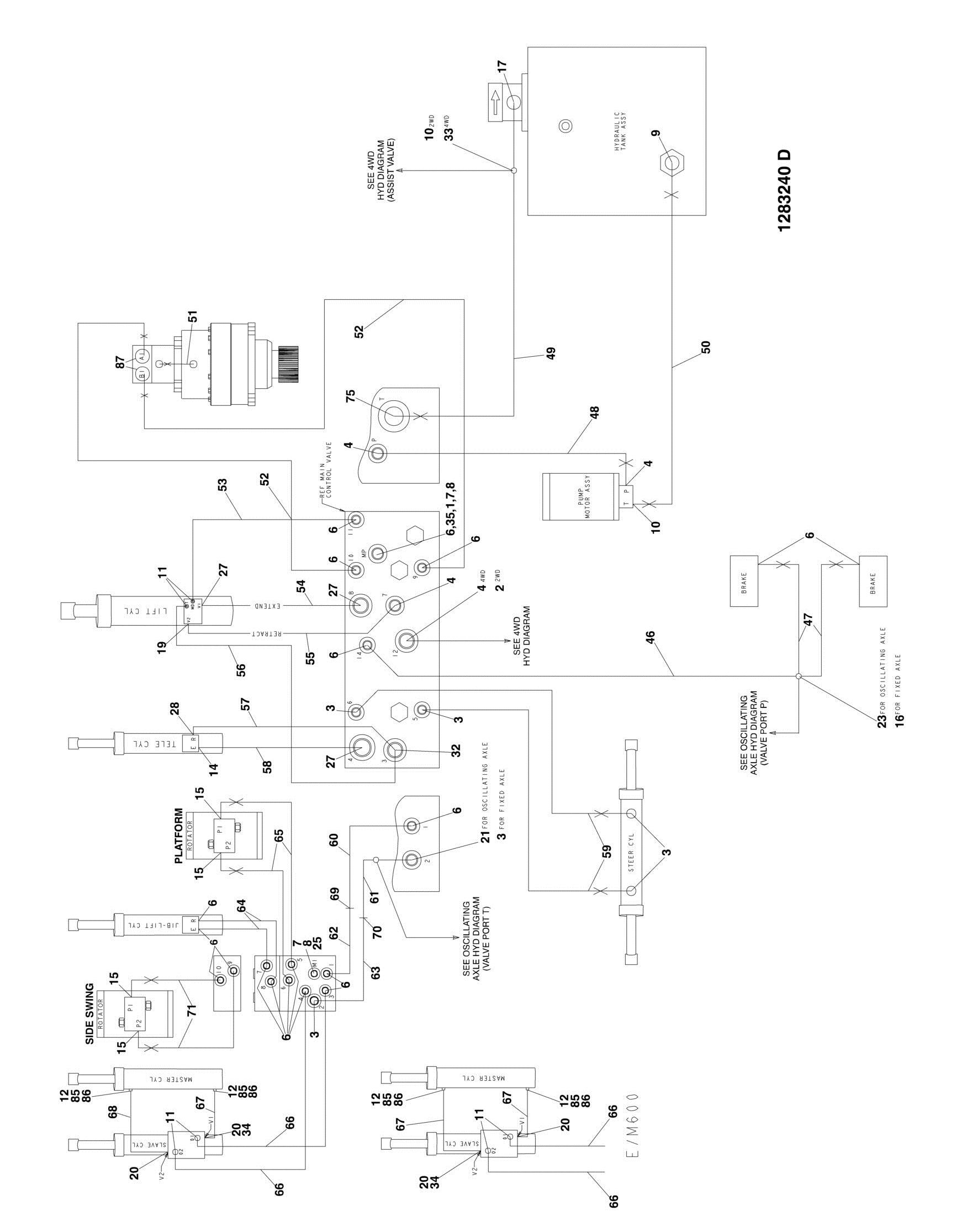

FIGURE 6 3. STANDARD HYDRAULIC DIAGRAM

FIGURE 6-3. STANDARD HYDRAULIC DIAGRAM

FIGURE 6-3. STANDARD HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

Ref STANDARD HYDRAULIC DIAGRAM 2792460 Ref Standard Hydraulic Diagram E600 & M600 2792461 Ref Standard Hydraulic Diagram E600J & M600J 2792462 Ref Standard Hydraulic Diagram E600JP & M600JP 2792427 Ref Standard Hydraulic Diagram 2WD 2792428 Ref Fixed Axle 1 2220414 1 Fitting, Straight 2 2220238 1 Fitting, Plug (2WD Only) 3 2220371 AR Fitting, Straight 4 2220373 4 Fitting, Straight 6 2220415 AR Fitting, Straight 7 2220428 AR Fitting, Quick Disconnect 8 2220429 AR Cap, Dust 9 2220435 1 Fitting, Straight 10 2220451 1 Fitting, Straight 11 2220466 4 Fitting, Elbow 12 2220934 2 Fitting, Elbow 14 2220500 1 Fitting, Elbow 15 2220502 5 Fitting, Elbow 16 2220504 1 Fitting, Tee (Fixed Axle Only) 17 2220550 1 Fitting, Reducer 19 2220596 1 Fitting, Elbow 20 Ref Fitting Options: 20 2220603 2 Fitting E/M600 & E/M600J 20 2220602 2 Fitting E/M600JP 21 2220606 1 Fitting, Tee 23 2220739 1 Fitting, Tee 25 Ref Fitting Options 25 2220873 1 Fitting, Straight (Prior to SN 0300175053) 25 2221086 1 Fitting, Diagnostic Test Port (SN 0300175053 through

0300219271)

27 2220947 3 Fitting, Straight 28 2220950 1 Fitting, Elbow 32 2221061 1 Fitting, Tee 33 2221063 1 Fitting, Tee 34 4567139 1 Tube 35 2752444 1 Hose 46 2753462 1 Hose 47 2753010 2 Hose 48 2752498 1 Hose 49 2753441 1 Hose 50 2753440 1 Hose 52 2753458 2 Hose 53 2753444 1 Hose 54 2753456 1 Hose 55 2753454 1 Hose 56 2753443 1 Hose 57 2753453 1 Hose 58 2753455 1 Hose 59 2753451 2 Hose

REV

B B C 1 1

ITEM PART NUMBER QTY DESCRIPTION

60 2753445 1 Hose 61 2753447 1 Hose 62 Ref Hose Options: 62 2753463 1 Hose E600 & M600 62 2753446 1 Hose E600J & M600J 62 2753493 1 Hose E600JP & M600JP 63 Ref Hose Options: 63 2753464 1 Hose E600 & M600 63 2753450 1 Hose E600J & M600J 63 2753494 AR Hose E600JP & M600JP 64 Ref Hose Options: 64 Not Required 0 Hose E600 & M600 64 2753457 2 Hose E600J & M600J 64 2753390 AR Hose E600JP & M600JP 65 Ref Hose Options: 65 2753469 2 Hose E600 & M600 65 2753458 2 Hose E600J & M600J 65 2753458 2 Hose E600JP & M600JP 66 Ref Hose Options: 66 2753470 2 Hose E600 & M600 66 2753442 2 Hose E600J & M600J 66 2753492 2 Hose E600JP & M600JP 67 Ref Hose Options: 67 2753450 2 Hose E600 & M600 67 2753448 1 Hose E600J & M600J 67 2753448 1 Hose E600JP & M600JP 68 Ref Hose Options: 68 Not Required 0 Hose E600 & M600 68 2753449 1 Hose E600J & M600J 68 2753449 AR Hose E600JP & M600JP 69 2230031 1 Fitting, Elbow 70 2230033 NLA Fitting, Elbow (Use p/n 8770189) 71 Ref Hose Options: 71 Not Required 0 Hose E600 & M600 71 Not Required 0 Hose E600J & M600J 71 2753491 2 Hose E600JP & M600JP 75 2220578 1 Fitting, Elbow 85 4640861 2 Fitting, Bleeder 86 0100020 AR Loctite, #567 Pipe Sealant (Not Shown) 87 2221033 2 Fitting, Straight
