FIGURE 6 2. OSCILLATING AXLE HYDRAULIC DIAGRAM

from JLG E600 E600J E600JP M600 M600J M600JP Parts Manual_english

FIGURE 10 1. SPECIAL OPTIONS LIST

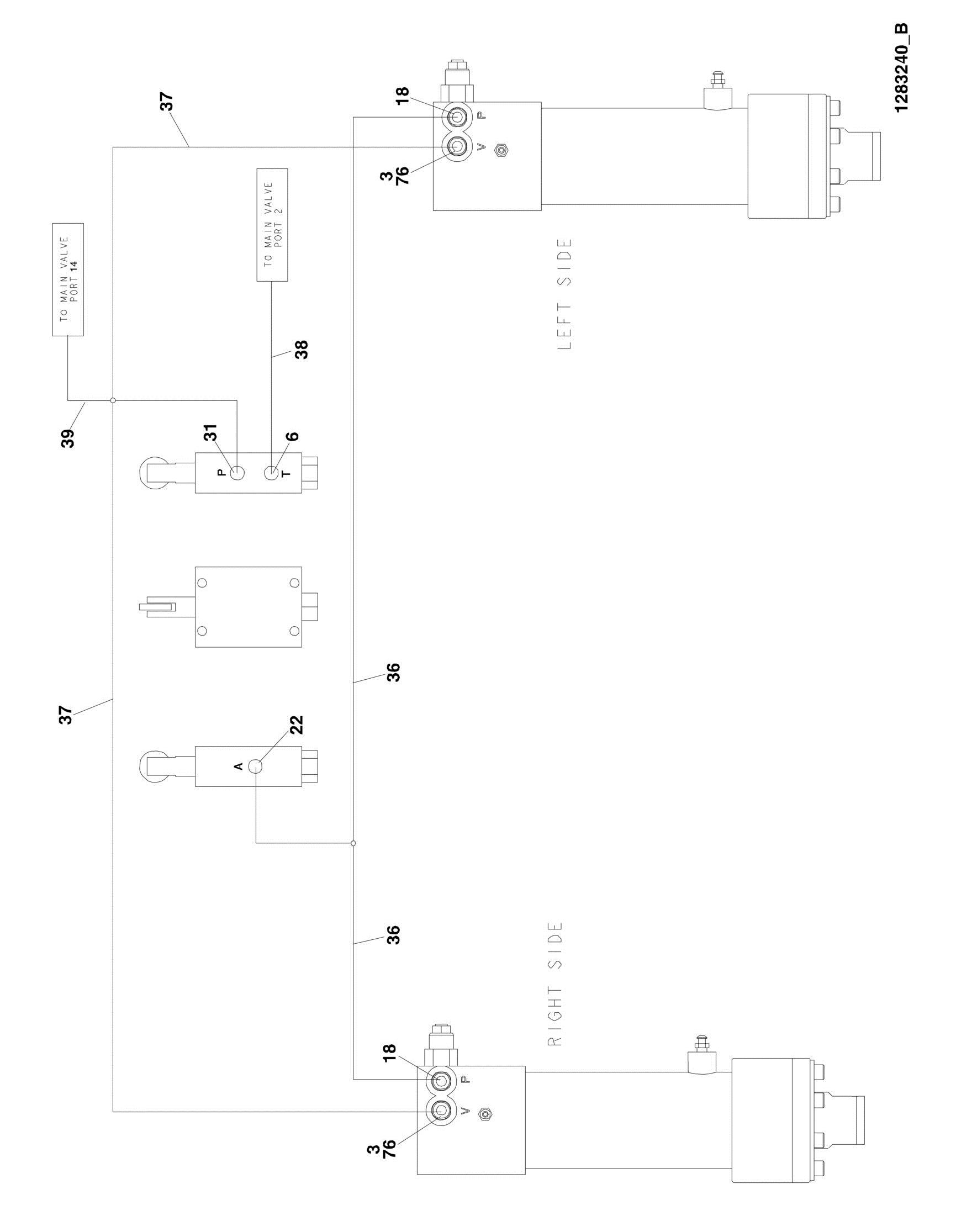

FIGURE 6-2. OSCILLATING AXLE HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

2792404 Ref OSCILLATING AXLE HYDRAULIC DIAGRAM 3 2220371 2 Fitting, Straight 6 2220415 1 Fitting, Straight 18 2220582 2 Fitting, Straight 22 2220711 1 Fitting, Tee 31 2221043 1 Fitting, Tee 36 2753002 1 Hose 37 2752471 1 Hose 38 2752631 1 Hose 39 2752977 1 Hose 76 2221074 2 Fitting, Straight Orifice

FIGURE 6 2. OSCILLATING AXLE HYDRAULIC DIAGRAM

Next Article

FIGURE 10 1. SPECIAL OPTIONS LIST

FIGURE 6-2. OSCILLATING AXLE HYDRAULIC DIAGRAM

FIGURE 6-2. OSCILLATING AXLE HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

REV
