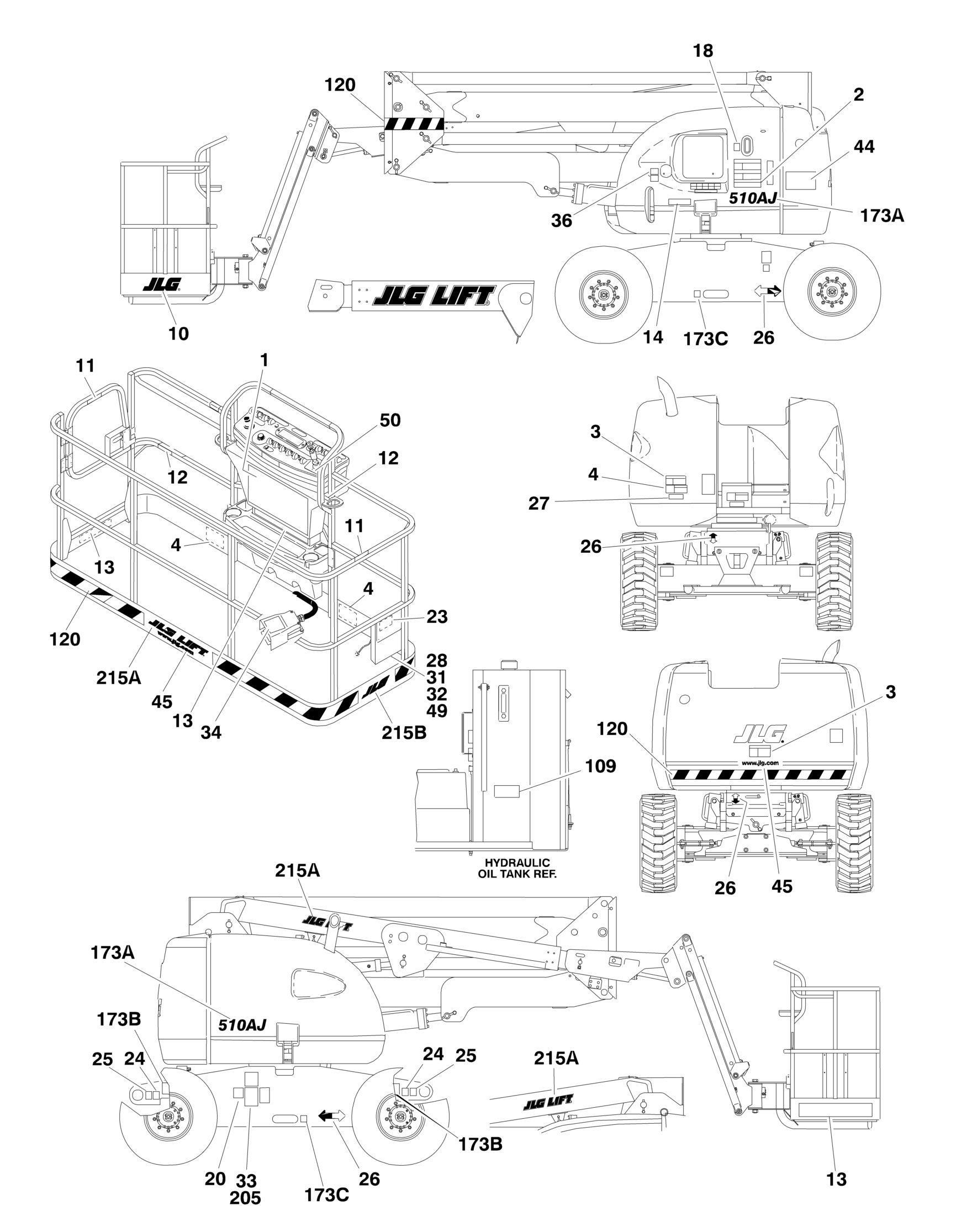

FIGURE 8-2. DECAL INSTALLATION - ANSI EXPORT SPECS (OTHER LANGUAGES
ITEM PART NUMBER QTY DESCRIPTION
Ref DECAL INSTALLATIONS 1001143105 Ref Brazil Spec (Spanish/Portuguese) 1001143104 Ref Chinese Spec (English/Chinese) 1001143102 Ref Korean Spec 1001143107 Ref Latin America Spec (English/Spanish) 1 Ref Decal - Danger/Warning Options: 1 1703928 1 Brazil Spec 1 1703925 1 Chinese Spec 1 1703927 1 Korean Spec 1 1703923 1 Latin American Spec 2 Ref Decal - Danger/Warning Options: 2 1703934 1 Brazil Spec 2 1703931 1 Chinese Spec 2 1703933 1 Korean Spec 2 1703929 1 Latin American Spec 3 Ref Decal - Danger Electrocution Options: 3 1703940 2 Brazil Spec 3 1703937 2 Chinese Spec 3 1703939 2 Korean Spec 3 1703935 2 Latin American Spec 4 Ref Decal - Warning/Crushing 4 1703952 3 Brazil Spec 4 1703949 3 Chinese Spec 4 1703951 3 Korean Spec 4 1703947 3 Latin American Spec 11 Ref Decal - No Hands Options: 11 1704002 2 Brazil Spec 11 Not Required 0 Chinese/Japanese/Korean Spec 11 1704000 2 CSA Spec 11 1704001 2 Latin American Spec 12 1704277 3 Decal - Attach Lanyard 13 Ref Decal - Max Capacity Options: 13 1001121920 2 Brazil Spec 13 1001121810 2 Chinese Spec 13 1001121918 2 Korean Spec 13 1001121805 2 Latin American Spec 14 Ref Decal - Max Capacity Options: 14 1001121923 1 Brazil Spec 14 1001121823 1 Chinese Spec 14 1001121921 1 Korean Spec 14 1001121818 1 Latin American Spec 18 1701504 1 Decal - Hydraulic Oil 19 Ref Decal - Inspection Options: 19 1704008 1 Brazil Spec 19 1704007 1 Latin American Spec 19 Not Required 0 Chinese/Korean Spec 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down/Lift 25 1701500 4 Decal - Tie Down/Lift
REV
E E E E
ITEM PART NUMBER QTY DESCRIPTION
26 1701529 4 Decal - Arrow 27 Ref Decal Options: 27 3251243 1 120V-60Hz - Brazil/Latin American Spec 27 Not Required 0 Chinese/Korean Spec 28 0860520 1 Box, Manual Storage 31 4751400 4 Flatwasher 1/4in Regular 32 3311405 4 Locknut 1/4in-20NC 33 3820001 4 Rivet 34 Ref Decal - Footswitch Options: 34 1703985 1 Brazil Spec 34 1703982 1 Chinese Spec 34 1703981 1 Korean Spec 34 1703983 1 Latin American Spec 36 1701505 1 Decal - Diesel Fuel 44 1001143110 1 Decal - Lift Diagram 45 1704885 AR Decal - Website 49 0641406 4 Bolt 1/4in-20NC x 3/4in 50 Ref Decal, Drive/Steer Options 50 1705905 1 Brazil Spec 50 1705430 1 Chinese Spec 50 1705427 1 Korean Spec 50 1705910 1 Latin American Spec 1001142990 Ref DECAL OPTIONS 109 1704412 1 Decal - Hydraulic Fluid 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft/6.61m Decal - Warning Stripes 173 0272582 Ref Model Designation Decal Installation 2
173A 1705487 2 Decal - 510AJ 173B 1705669 4 Decal - Max Tire Load 173C 1702300 2 Decal - Tie-Down (SN E300001114 through E300001395) 205 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 215 0272530 Ref JLG Logo Decals 215A 1702774 3 Decal - JLG Lift (3 1/2in) 215B 1702773 1 Decal - JLG (5in)
REV
1
