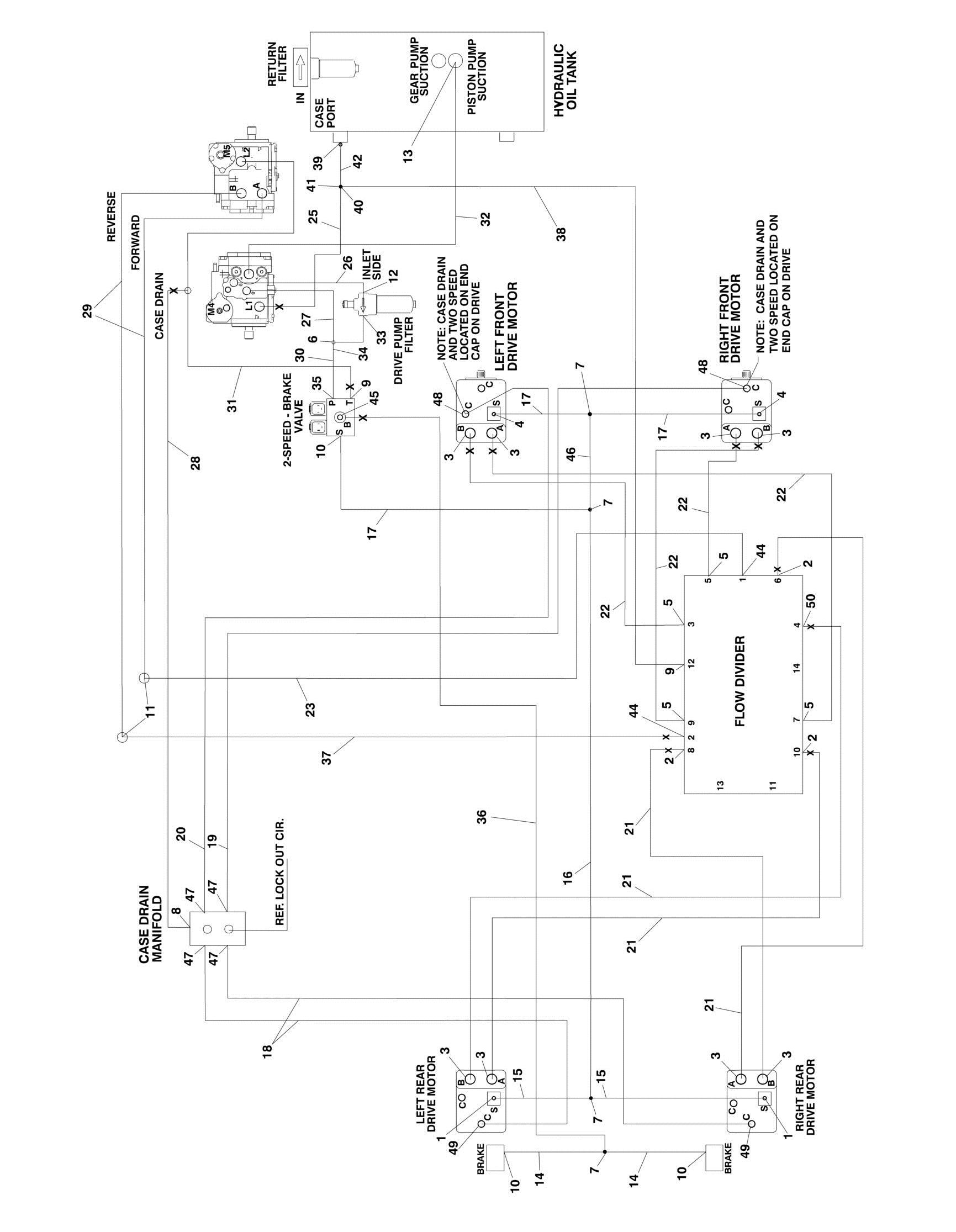

FIGURE 6-2. DRIVE HYDRAULIC DIAGRAM
FIGURE 6-2. DRIVE HYDRAULIC DIAGRAM
FIGURE 6-2. DRIVE HYDRAULIC DIAGRAM
ITEM PART NUMBER QTY
DESCRIPTION
1001138578 Ref DRIVE HYDRAULIC DIAGRAM - 4WD 1 2220582 2 Fitting, Straight 2 2110808 AR Fitting, Straight 3 2110812 8 Fitting, Straight 4 2220472 2 Fitting, Elbow 5 2130808 4 Fitting, Elbow 6 2221063 1 Fitting, Tee 7 2220504 4 Fitting, Tee 8 2220366 1 Fitting, Elbow 9 2220603 2 Fitting, Straight 10 2220466 3 Fitting, Elbow 11 2221085 2 Fitting, Elbow 12 2221042 1 Fitting, Elbow 13 1001143501 1 Clamp 14 1001138601 2 Hose 15 1001138598 2 Hose 16 1001140491 1 Hose 17 Ref Hose Options: 17 1001140491 3 Hose (SN E300001114 through E300001394) 17 1001143526 3 Hose (SN E300001395 to Present) 18 1001143490 2 Hose 19 Ref Hose Options: 19 1001138599 1 Hose (SN E300001114 through E300001394) 19 1001143527 1 Hose (SN E300001395 to Present) 20 Ref Hose Options: 20 1001138600 1 Hose (SN E300001114 through E300001394) 20 1001143527 1 Hose (SN E300001395 to Present) 21 2754244 4 Hose 22 1001094649 4 Hose 23 2753605 1 Hose 25 1001138414 1 Hose 26 1001138415 1 Hose 27 1001138597 1 Hose 28 1001138417 1 Hose 29 2753604 2 Hose 30 1001138418 1 Hose 31 1001138419 1 Hose 32 1001143498 1 Hose 33 2221216 1 Fitting, Straight 34 2220618 1 Fitting, Straight 35 2220415 1 Fitting, Straight 36 1001140499 1 Hose 37 2753602 1 Hose 38 1001140692 1 Hose 39 2220465 1 Fitting, Elbow 40 2220621 1 Fitting, Straight 41 2220481 1 Fitting, Tee 42 1001138423 1 Hose 44 2111212 2 Fitting, Straight 45 4641282 1 Valve, Check
REV
F
ITEM PART NUMBER QTY DESCRIPTION
46 1001140491 1 Hose 47 Ref Fitting, Elbow Options: 47 2220373 4 Fitting, Elbow (SN E300001114 through E300001394) 47 2220500 4 Fitting, Elbow (SN E300001395 to Present) 48 2220596 2 Fitting, Elbow 49 2220373 2 Fitting, Straight 50 Ref Fitting Options: 50 2110808 1 Fitting, Straight (SN E300001114 through E300001454) 50 2220472 1 Fitting, Elbow (SN E300001455 through E300001913) 50 2110808 1 Fitting, Straight (SN E300001914 to Present)
