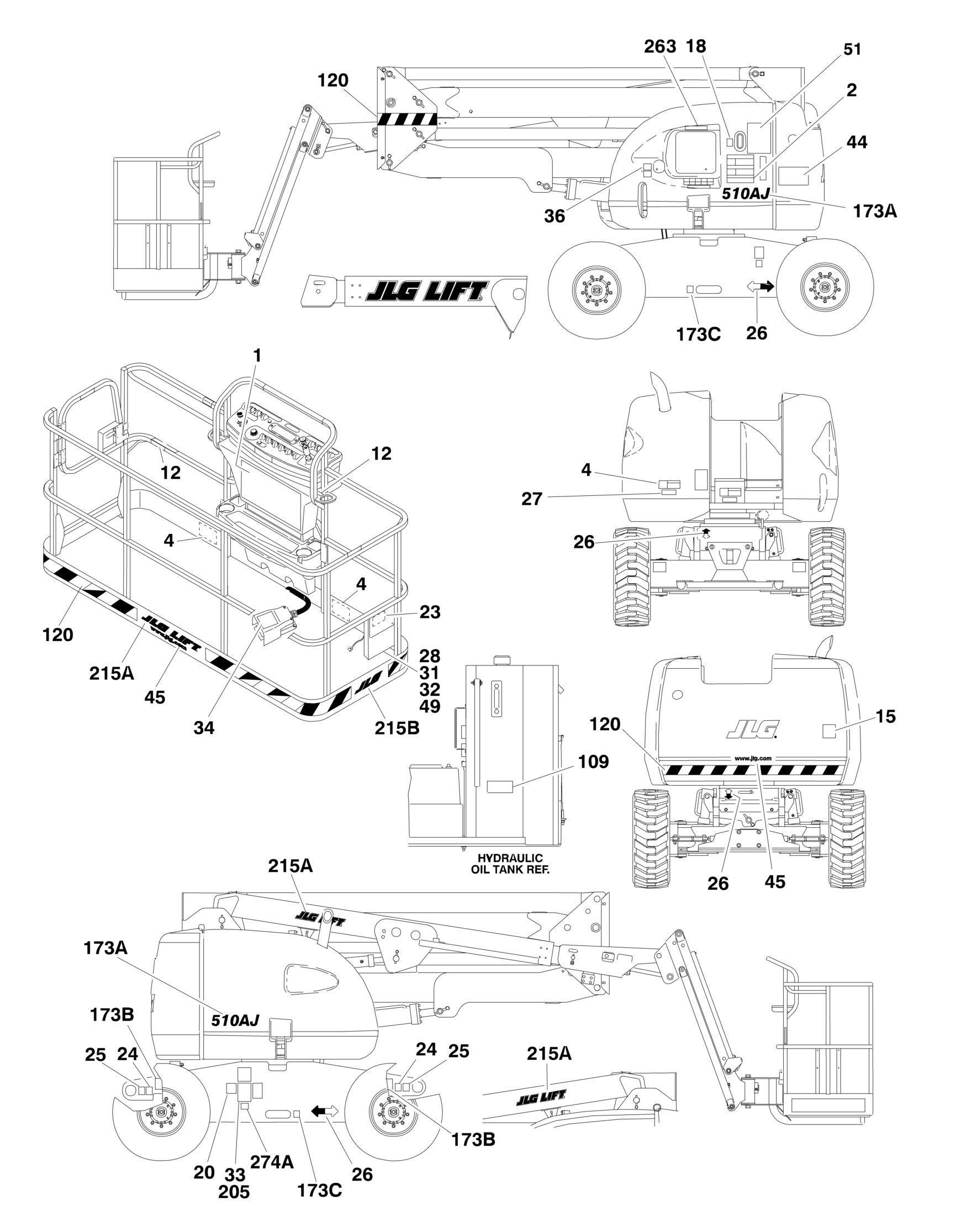

FIGURE 8-3. DECALS INSTALLATION - AUSTRALIAN AND CE SPECS
ITEM PART NUMBER QTY DESCRIPTION
Ref DECAL INSTALLATIONS 1001143100 Ref Australian Spec 1001143106 Ref CE Spec 1 Ref Decal - Danger/Warning Options: 1 1703992 1 Australian Spec 1 1705821 1 CE Spec 2 Ref Decal - Danger/Warning Options: 2 1705332 1 Australian Spec 2 1705822 1 CE Spec 4 1701518 3 Decal - Warning/Crushing 12 1704277 3 Decal - Attach Lanyard 15 Ref Decal - Sound Power Level Options: 15 Not Required 0 Australian Spec 15 1705084 1 CE Spec 18 1701504 AR Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down/Lift 25 1701500 4 Decal - Tie Down/Lift 26 1701529 4 Decal - Arrow 27 Ref Decal Options: 27 3251242 1 240V-50Hz - Australian Spec 27 Not Required 0 CE Spec 28 0860520 1 Box, Manual Storage 31 4751400 4 Flatwasher 1/4in Regular 32 3311405 4 Locknut 1/4in-20NC 33 Ref Fastener Options: 33 3820001 4 Australian Spec 33 2080057 2 CE Spec 34 Ref Decal - Footswitch Options: 34 3252347 1 Australian Spec 34 1705828 1 CE Spec 36 1701505 1 Decal - Fuel 44 1001143110 1 Decal - Lift Diagram 45 1704885 AR Decal - Website 49 0641406 4 Bolt, 1/4in-20NC x 3/4in 51 Ref Decal - Emergency Controls Options: 51 1001112551 1 Australian Spec 51 Not Required 0 CE Spec 1001142990 Ref DECAL OPTIONS 109 1704412 1 Decal - Hydraulic Fluid 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft/ 6.61m Decal - Warning Stripes 173 0272582 Ref Model Designation Decal Installation 173A 1705487 2 Decal - 510AJ 173B 1705669 4 Decal - Max Tire Load 173C 1702300 2 Decal - Tie-Down (SN E300001114 through E300001395) 205 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 215 0272530 Ref JLG Logo Decals
REV
E E
B
ITEM PART NUMBER QTY
DESCRIPTION
215A 1702774 3 Decal - JLG Lift (3 1/2in) 215B 1702773 1 Decal - JLG (5in) 263 1001189882 NLA Decal - MSSO (Note: Use p/n 1001197408) (CE Spec Only) (SN
E300002416 through E300002822)
263 1001197408 1 Decal - MSSO (CE Spec Only) (SN E300002823 to Present) 274 1001214029 1 Decal - EAC Installation (CIS and Russia Specs) 274A 1001173703 1 Decal - EAC
