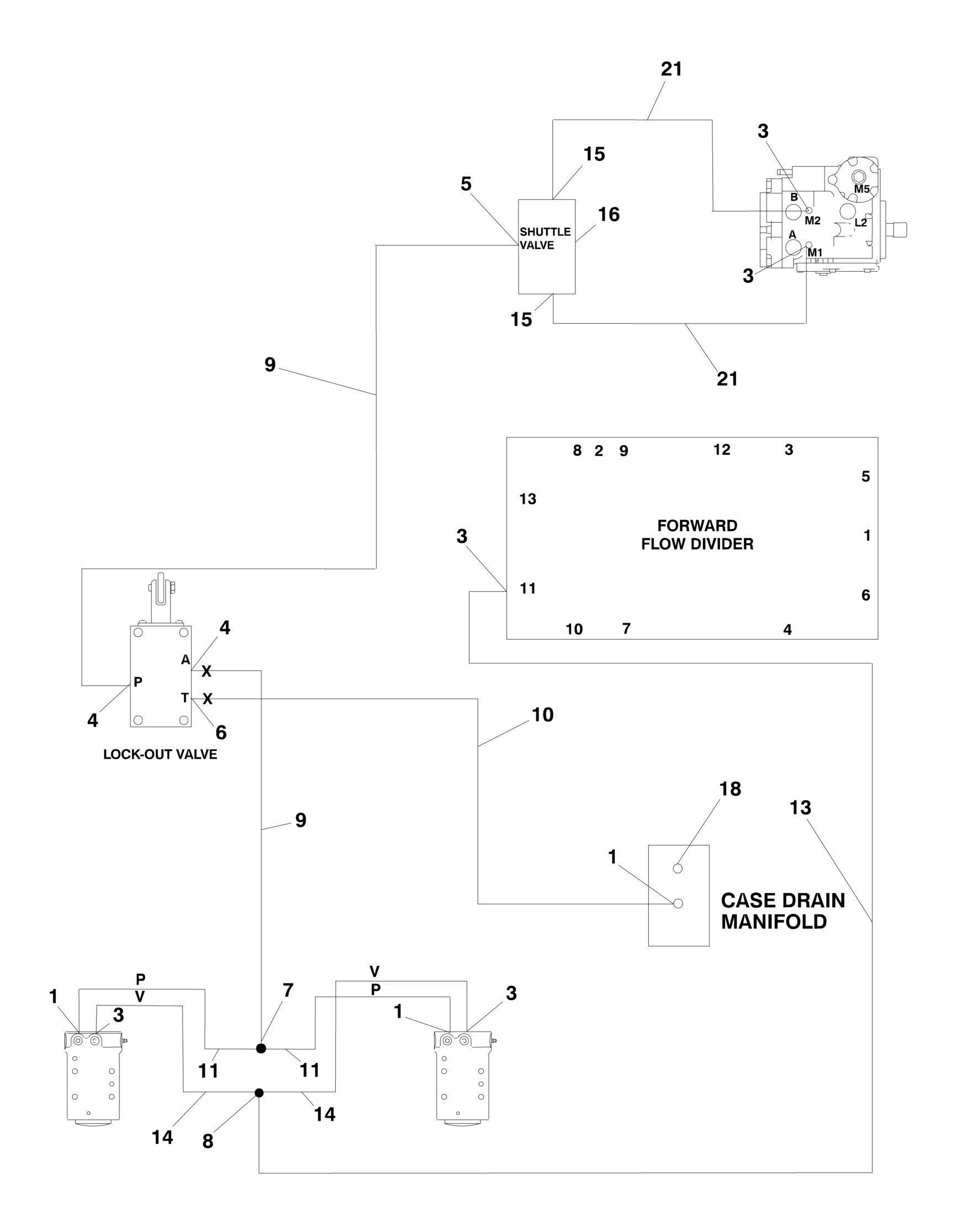

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

from JLG 510AJ Parts Manual (3121294) - PDF DOWNLOAD

FIGURE 10-1. SPECIAL OPTIONS

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

1001140559 Ref AXLE LOCKOUT HYDRAULIC DIAGRAM 1 2220415 3 Fitting, Straight 3 2220371 5 Fitting, Straight 4 2220466 2 Fitting, Elbow 5 1001138697 1 Fitting, Straight 6 2220502 1 Fitting, Elbow 7 2220504 1 Fitting, Tee 8 2220490 1 Fitting, Tee 9 1001138688 1 Hose 10 1001138689 1 Hose 11 1001140537 2 Hose 13 1001140692 1 Hose 14 1001140693 2 Hose 15 2220473 2 Fitting, Elbow 16 8902175 1 Valve, Shuttle 18 2220235 1 Plug 21 1001143486 2 Hose 22 1001138688 1 Hose
