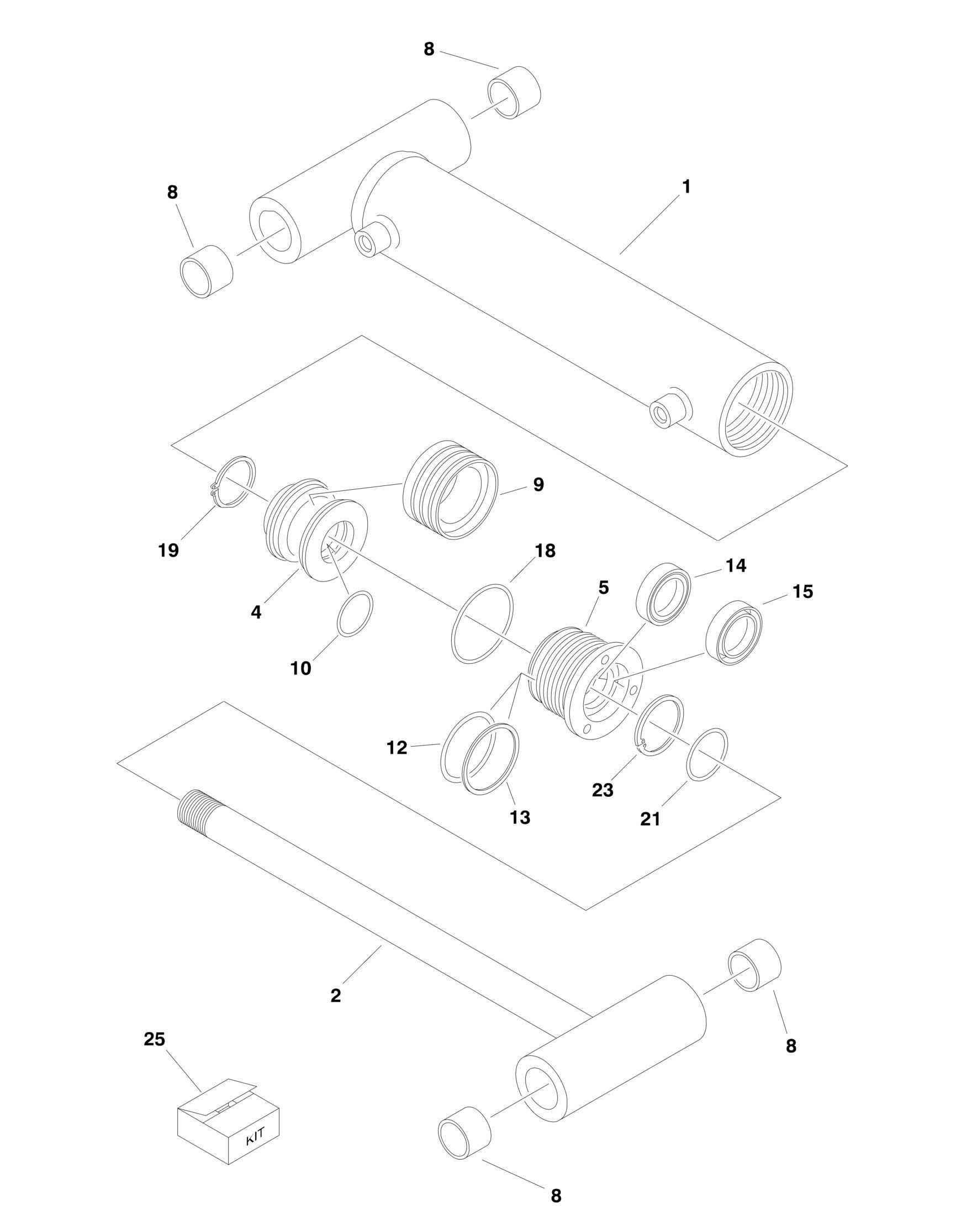

FIGURE 5-6. MASTER CYLINDER ASSEMBLY
FIGURE 5-6. MASTER CYLINDER ASSEMBLY
FIGURE 5-6. MASTER CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1684241 Ref MASTER CYLINDER ASSEMBLY 1 7026085 1 Barrel 2 7026086 1 Rod 4 7026081 1 Piston 5 7026082 1 Head 8 0961951 4 Bearing 9 7026087 1 Seal 10 7026087 1 O-Ring 12 7026087 1 O-Ring 13 7026087 1 Ring, Back-up 14 7026087 1 Seal 15 7026087 1 Wiper 18 7026087 1 O-Ring 19 70002216 1 Ring, Retaining 21 7026087 1 O-Ring 23 70002217 1 Ring, Retaining 25 7026087 1 Seal Kit - Cylinder (Includes Items 9, 10, 12-15, 18 & 21)
REV
C
