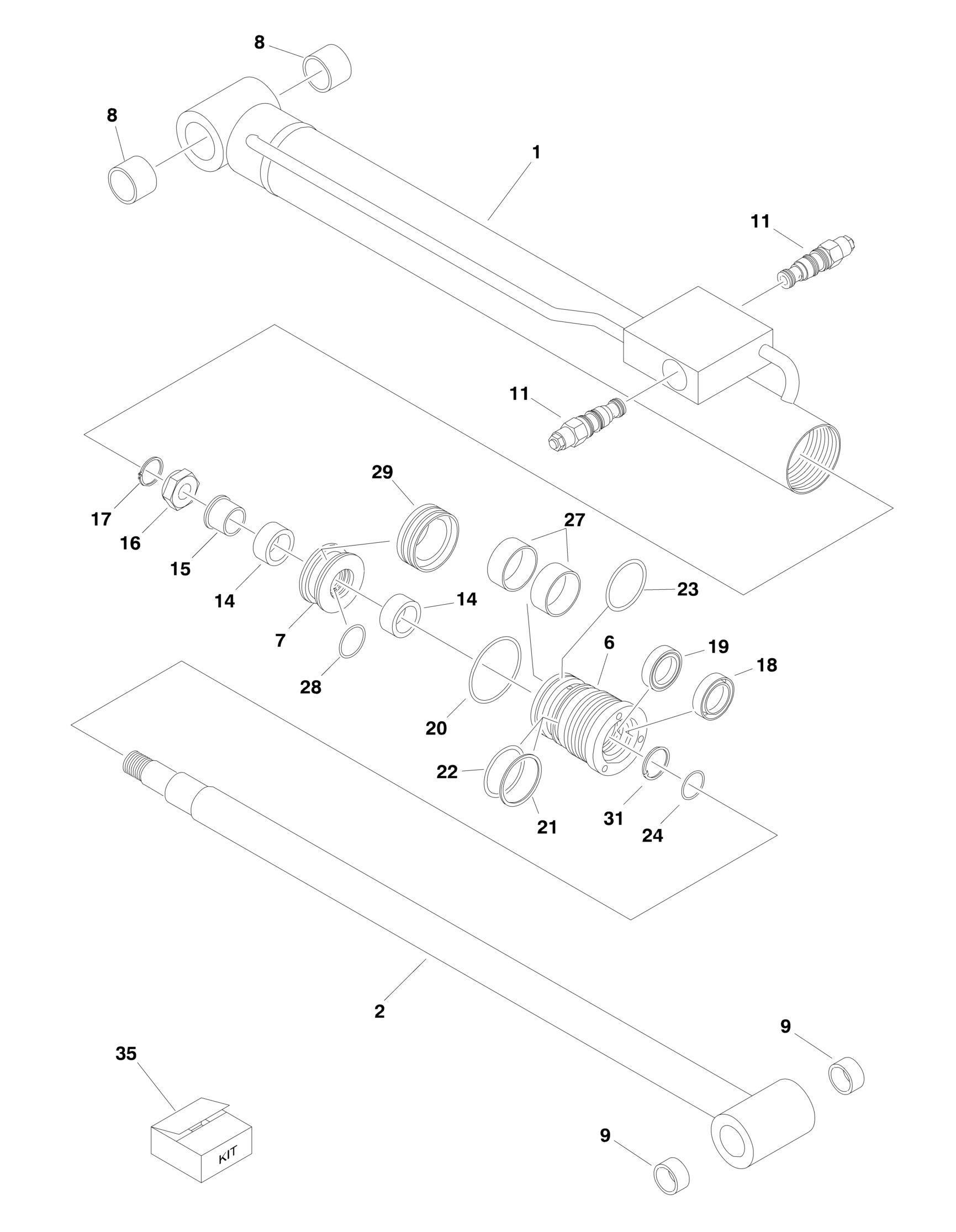

FIGURE 5-3. LIFT (JIB) CYLINDER ASSEMBLY

FIGURE 5-3. LIFT (JIB) CYLINDER ASSEMBLY

FIGURE 5-3. LIFT (JIB) CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1684242 Ref JIB LIFT CYLINDER ASSEMBLY 1 7026093 1 Barrel 2 7026094 1 Rod 6 7026088 1 Head 7 7026089 1 Piston 8 0961951 2 Bearing 9 0961947 2 Bearing 11 7026096 2 Cartridge, Valve 11 2900770 2 Seal Kit - 7026096 Valve (1 Per Cartridge) 14 7026090 2 Bushing 15 7026091 1 Sleeve 16 7026092 1 Nut 17 70002223 1 Ring, Retaining 18 7026095 1 Wiper 19 7026095 1 Seal 20 7026095 1 O-Ring 21 7026095 1 Ring, Back-up 22 7026095 1 O-Ring 23 7026095 1 O-Ring 24 7026095 1 O-Ring 27 7026095 2 Ring, Ware (SN E300001237 to Present) 28 7026095 1 O-Ring 29 7026095 1 Seal 31 70002220 1 Ring, Retaining 35 7026095 1 Seal Kit - Cylinder (Includes Items 18-24, 28 & 29)

REV

D
