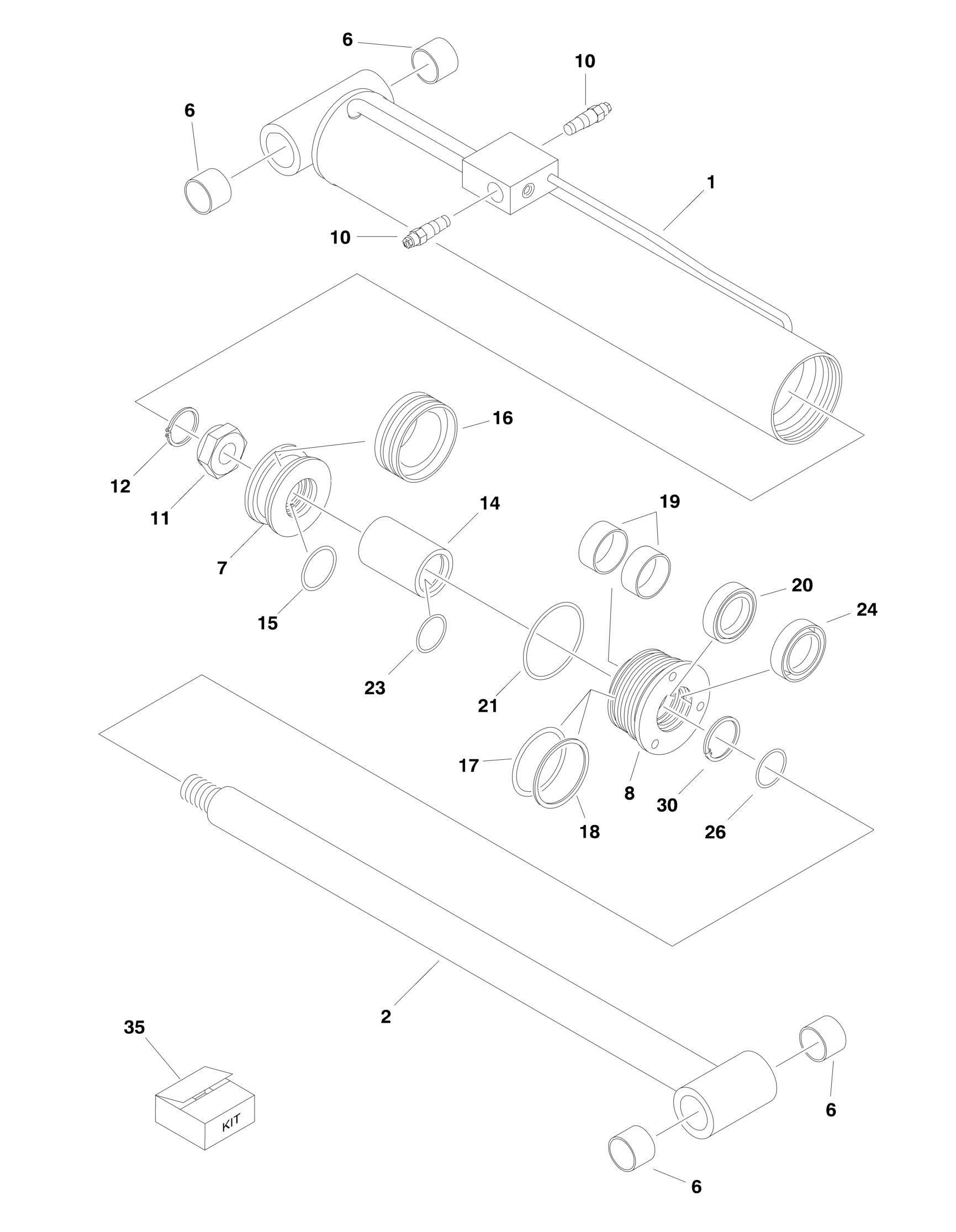

FIGURE 5-5. LIFT (TOWER BOOM) CYLINDER ASSEMBLY

FIGURE 5-5. LIFT (TOWER BOOM) CYLINDER ASSEMBLY

FIGURE 5-5. LIFT (TOWER BOOM) CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1684239 Ref TOWER LIFT CYLINDER ASSEMBLY 1 7026078 1 Barrel 2 7026079 1 Rod 6 0961950 4 Bearing 7 7026073 1 Piston 8 7026074 1 Head 10 4641260 2 Cartridge, Valve 10 2900770 2 Seal Kit - 4641260 Valve (1 Per Assembly) 11 7026075 1 Nut 12 70002221 1 Ring, Retaining 14 7026076 1 Spacer 15 7026080 1 O-Ring 16 7026080 1 Seal 17 7026080 1 O-Ring 18 7026080 1 Ring, Back-up 19 7026080 2 Ring, Wear 20 7026080 1 Seal 21 7026080 1 O-Ring 23 7026080 1 O-Ring 24 7026080 1 Wiper 26 7026080 1 O-Ring 30 70002222 1 Ring, Retaining 35 7026080 1 Seal Kit - Cylinder (Includes Items 15-21, 23, 24 & 26)

REV

D
