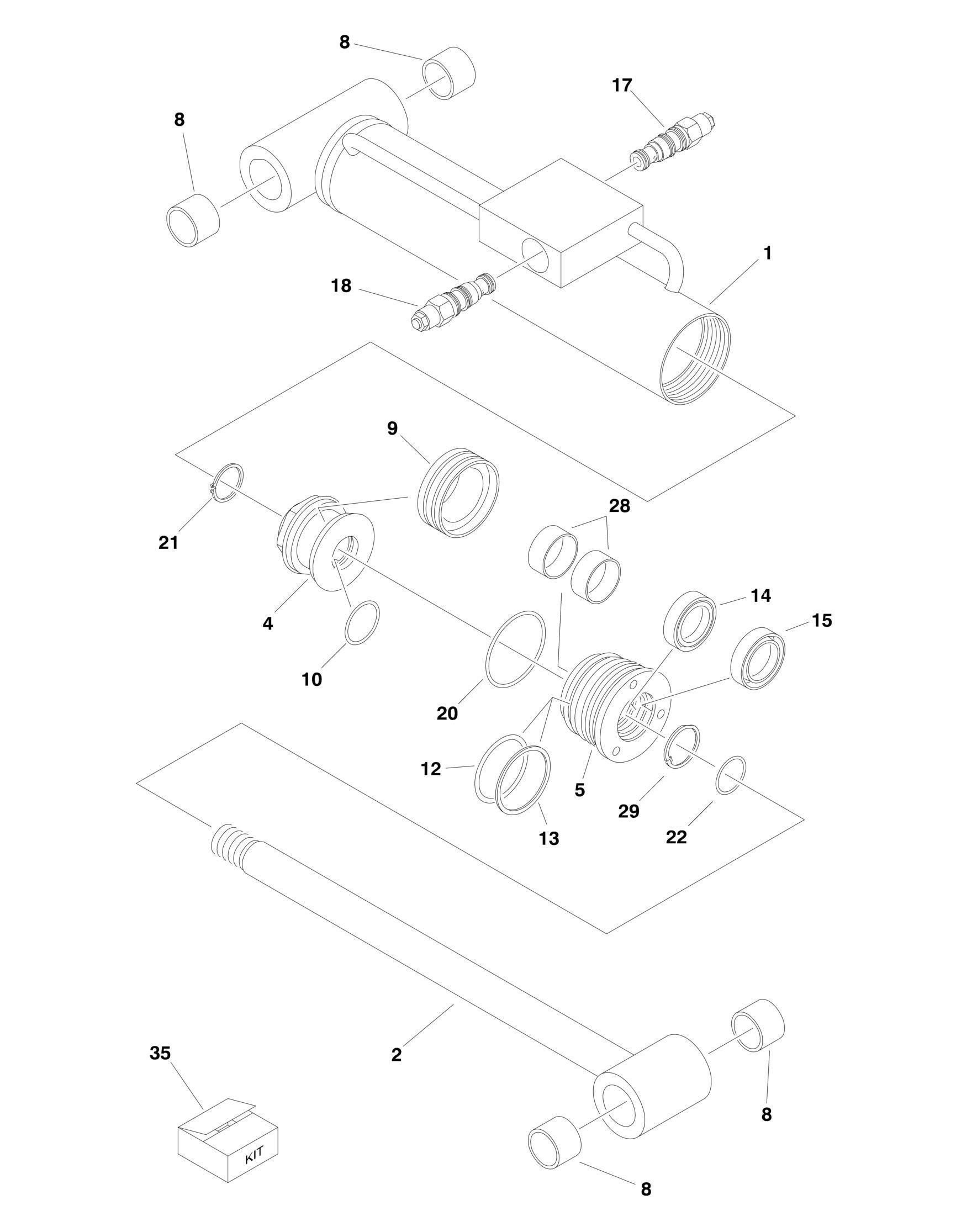

FIGURE 5-2. LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001094789 Ref LEVEL CYLINDER ASSEMBLY 1 7026117 1 Barrel 2 7026118 1 Rod 4 7026081 1 Piston 5 70005580 1 Head 8 0961951 4 Bearing 9 7026087 1 Seal 10 7026087 1 O-Ring 12 7026087 1 O-Ring 13 7026087 1 Ring, Back-up 14 7026087 1 Seal 15 7026087 1 Wiper 17 70001086 1 Cartridge, Valve Options: 17 2900770 1 Seal Kit - 70001086 Valves 18 7011377 1 Cartridge, Valve 18 7011358 1 Seal Kit - 7011377 Valve 20 7026087 1 O-Ring 21 70002216 1 Ring, Retaining 22 7026087 1 O-Ring 28 7026087 2 Ring, Wear (SN E300001237 to Present) 29 70002217 1 Ring, Retaining 35 7026087 1 Seal Kit - Cylinder (Includes Items 9, 10, 12-15, 20, 22 & 28)
REV
B
