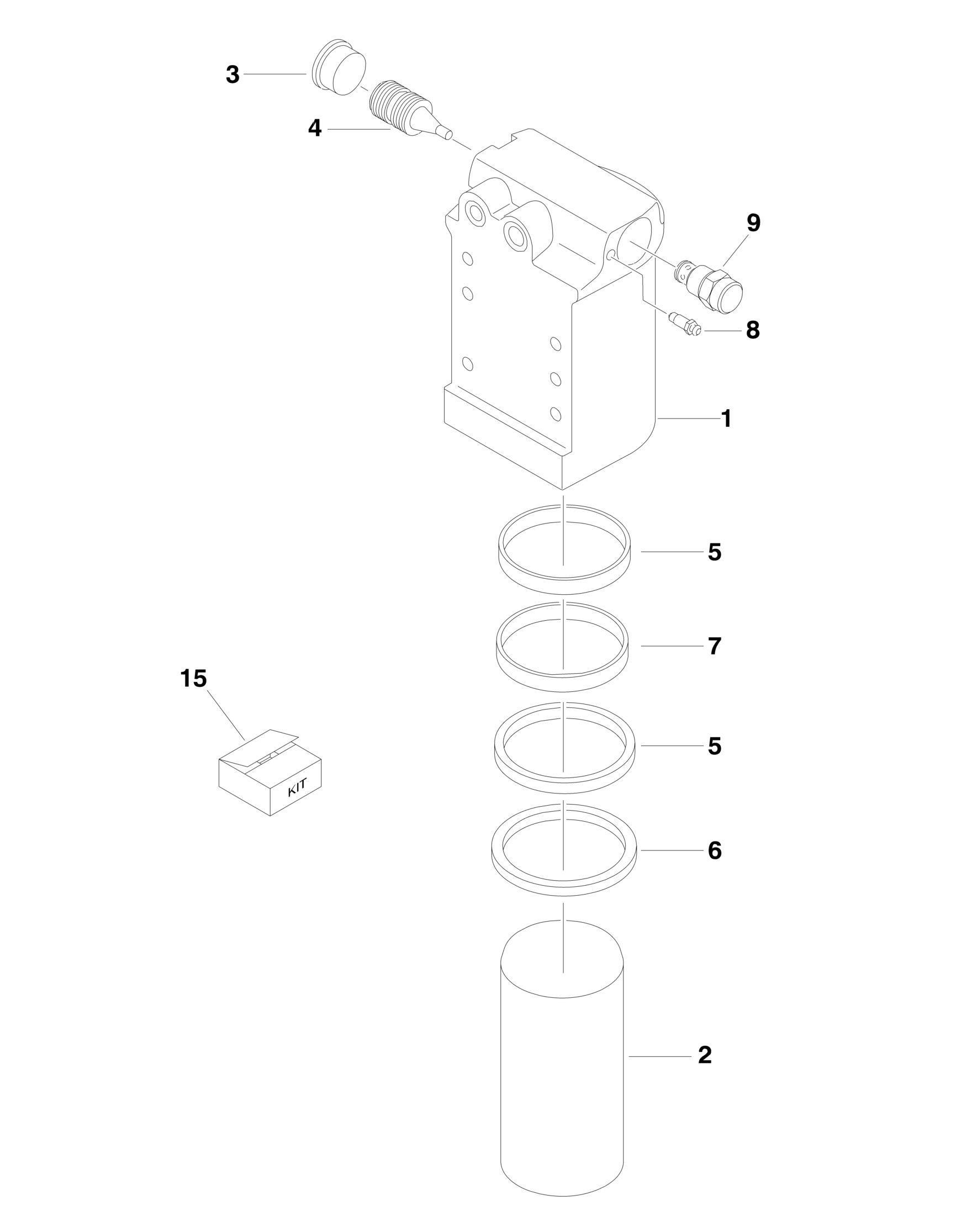

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY

FIGURE 5-1. AXLE LOCKOUT CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1684465 Ref AXLE LOCKOUT CYLINDER ASSEMBLY 1 0370026 1 Barrel 2 1684290 1 Rod 3 2220890 1 Plug 4 3480288 1 Piston, Pilot 5 2902266 2 Ring, Wear 6 2902266 1 Wiper 7 2902266 1 Seal, Rod 8 4640858 1 Bleeder 9 4641390 1 Cartridge, Valve 9 7017496 1 Seal Kit 15 2902266 1 Seal Kit, Cylinder (Includes Items 5-7)

REV

H
