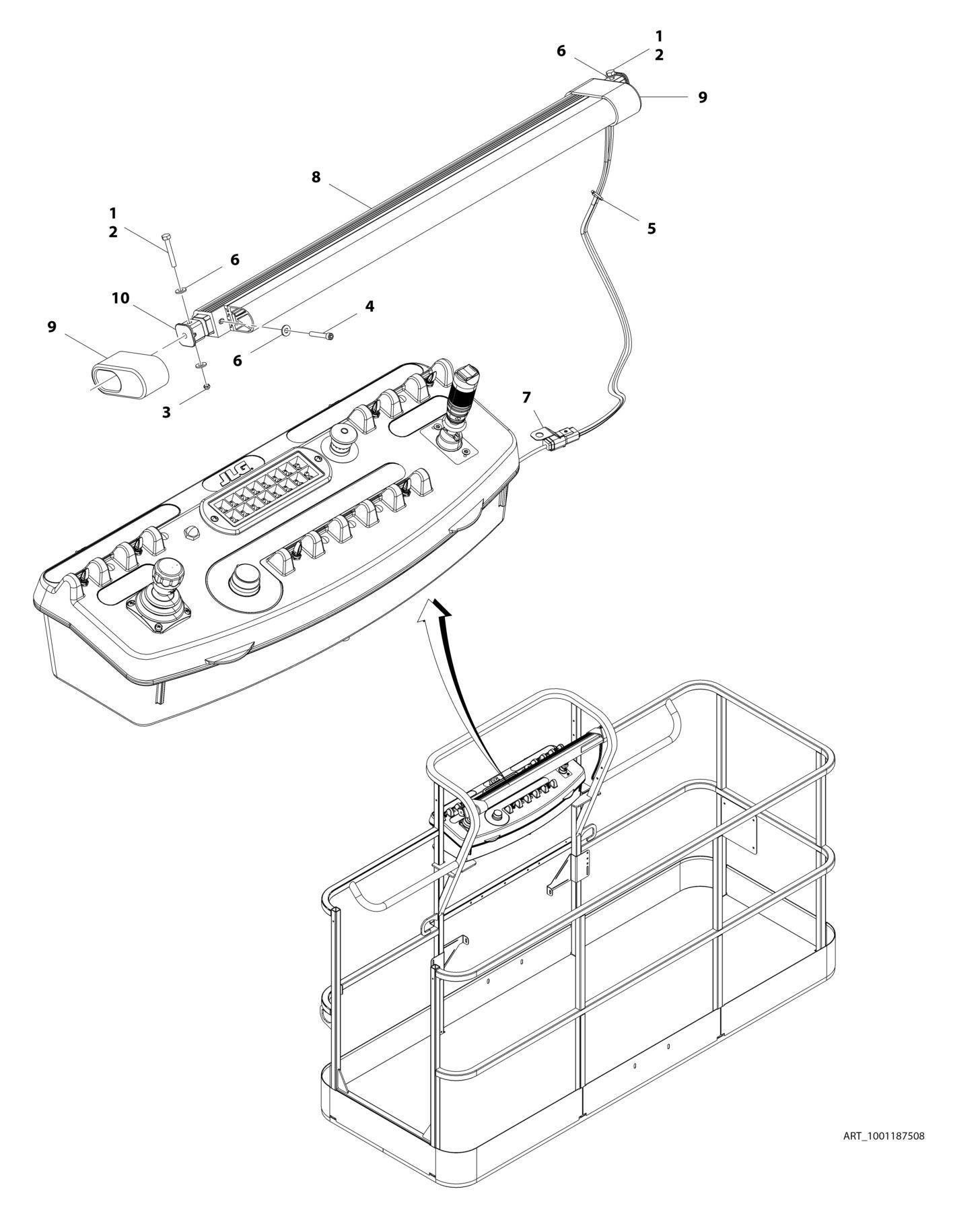

FIGURE 4-10. SKYGUARD SYSTEM INSTALLATION

from JLG 510AJ Parts Manual (3121294) - PDF DOWNLOAD

FIGURE 10-1. SPECIAL OPTIONS

FIGURE 4-10. SKYGUARD SYSTEM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001187508 Ref SKYGUARD SYSTEM INSTALLATION 1 0100011 AR Compound, Locking 2 0641414 2 Bolt 1/4 x 1-3/4 3 3300430 2 Nut 1/4 4 3931424 2 Capscrew 1/4 x 1-1/2 5 4240033 1 Tie-Strap 6 4711400 6 Washer 1/4 7 1001120328 1 Mount 8 1001137673 1 Switch, SkyGuard Assembly 9 1001186517 2 Cover, Platform Sensor 10 1001188889 2 Support, Block

FIGURE 4-10. SKYGUARD SYSTEM INSTALLATION

Next Article

FIGURE 10-1. SPECIAL OPTIONS

FIGURE 4-10. SKYGUARD SYSTEM INSTALLATION

FIGURE 4-10. SKYGUARD SYSTEM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
