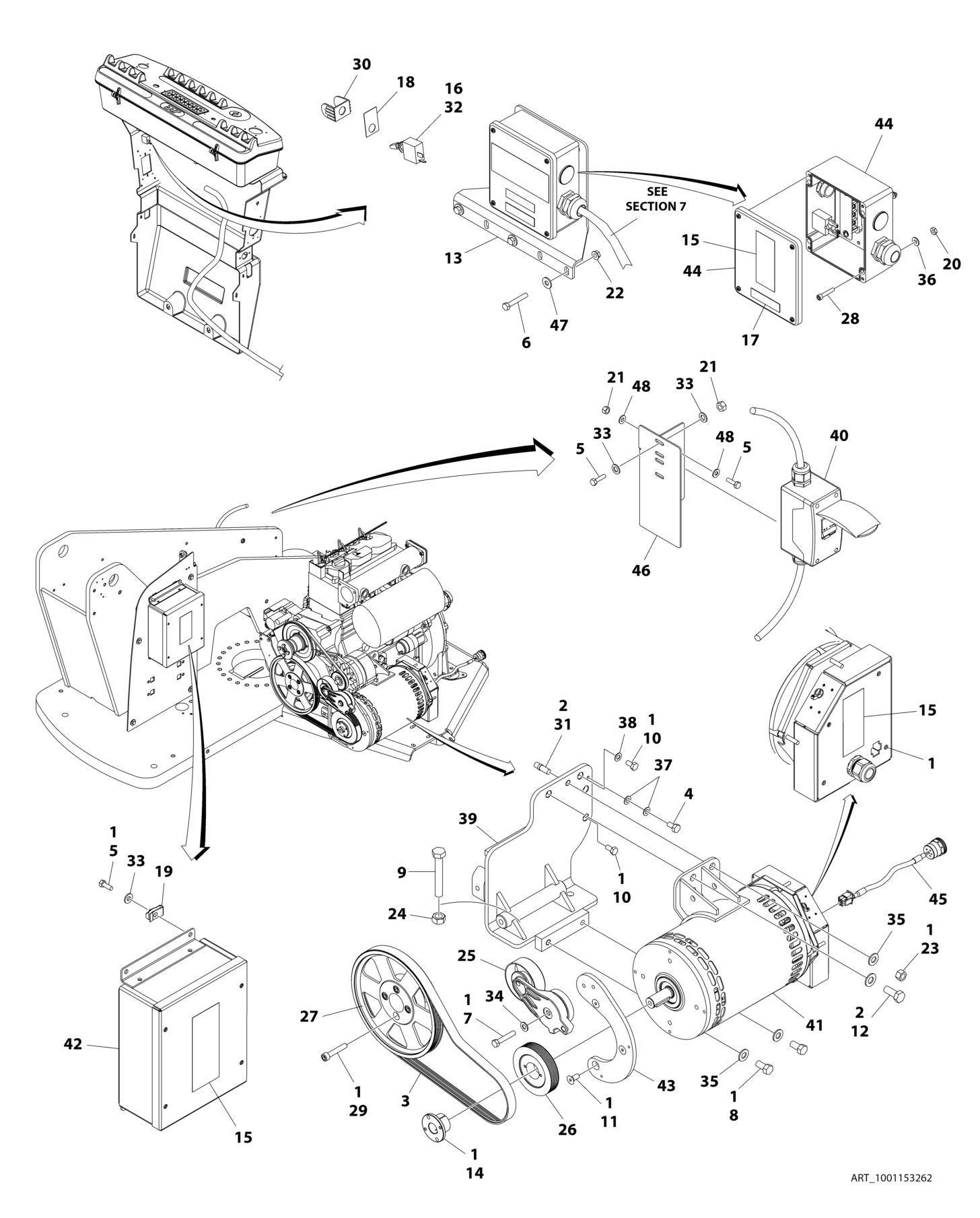

FIGURE 2-18. 4000W GENERATOR INSTALLATION - DEUTZ D2011 ENGINES (SN E300001114 through E300002603
ITEM PART NUMBER QTY
DESCRIPTION
1001153262 Ref 4000W GENERATOR INSTALLATION 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0480129 1 Belt 4 0641404 1 Bolt 1/4 x 1/2 5 0641407 8 Bolt 1/4 x 7/8 6 0641516 AR Bolt 5/16 x 2 7 0641616 1 Bolt 3/8 x 2 8 0641808 2 Bolt 1/2 x 1 9 0641820 1 Bolt 1/2 x 2-1/2 10 0711414 3 Bolt M14 x 30 11 0741607 3 Screw 3/8 x 7/8 12 0771415 1 Bolt M14 x 35 13 0902888 1 Bracket (SN E300001114 through E300002543) 14 0962520 1 Bushing, Split Taper 15 1705489 AR Decal - Hazardous Voltage 16 2820031 AR Heatshrink 17 3251242 1 Decal - 240V-50Hz (SN E300001114 through E300002543) 18 3251102 1 Nameplate - Generator 19 3300454 4 Nut - Tinnerman 1/4 20 3311005 AR Nut #10 21 3311405 4 Nut 1/4 22 3311508 AR Nut 5/16 23 3311801 1 Nut 1/2 24 3311805 1 Nut 1/2 25 3580317 1 Tensioner, Belt 26 3580319 1 Pulley 27 3580320 1 Pulley 28 3931016 AR Capscrew #10 x 1 29 4032015 4 Capscrew M10 x 55 30 4060802 1 Guard, Switch 31 4300157 1 Stud 32 4360336 1 Switch, Toggle 33 4711400 8 Washer 1/4 34 4711600 1 Washer 3/8 35 4711800 3 Washer 1/2 36 4751000 AR Washer #10 37 4791400 2 Washer 1/4 38 4812200 1 Washer M14 39 4846567 1 Bracket, Motor Mount 40 1001096070 1 Breaker Box Kit 41 1001138565 1 Generator Assembly (50Hz) 41 70003709 1 Ring, Retaining (External) 41 70003708 1 Ring, Retaining (Internal) 41 70001966 1 Bearing 41 70004092 1 Endbell (Shaft End) 41 70004171 1 Key 41 70004676 1 Rotor 41 70004677 1 Stator
REV
E
ITEM PART NUMBER QTY DESCRIPTION
41 70004678 1 Endbell (Rear) 41 70004679 1 Cover, Endbell (Rear) 41 70004680 1 Enclosure, Wiring 41 70004681 1 Cover, Enclosure 41 70004682 1 Switch, Reset (Located on Enclosure Cover) 41 70004683 1 Connector, Strain Relief (Located on Enclosure Cover) 42 1001138566 1 Control Box Assembly 42 70006552 1 Capacitor 42 70006553 1 Relay 43 1001139357 1 Mount, Tensioner 44 1001152458 1 Junction Box Assembly (SN E300001114 through E300002543) 45 1001152532 1 Generator Harness 46 1001162445 1 Bracket 47 4751500 AR Washer 5/16 48 4751400 4 Washer 1/4
