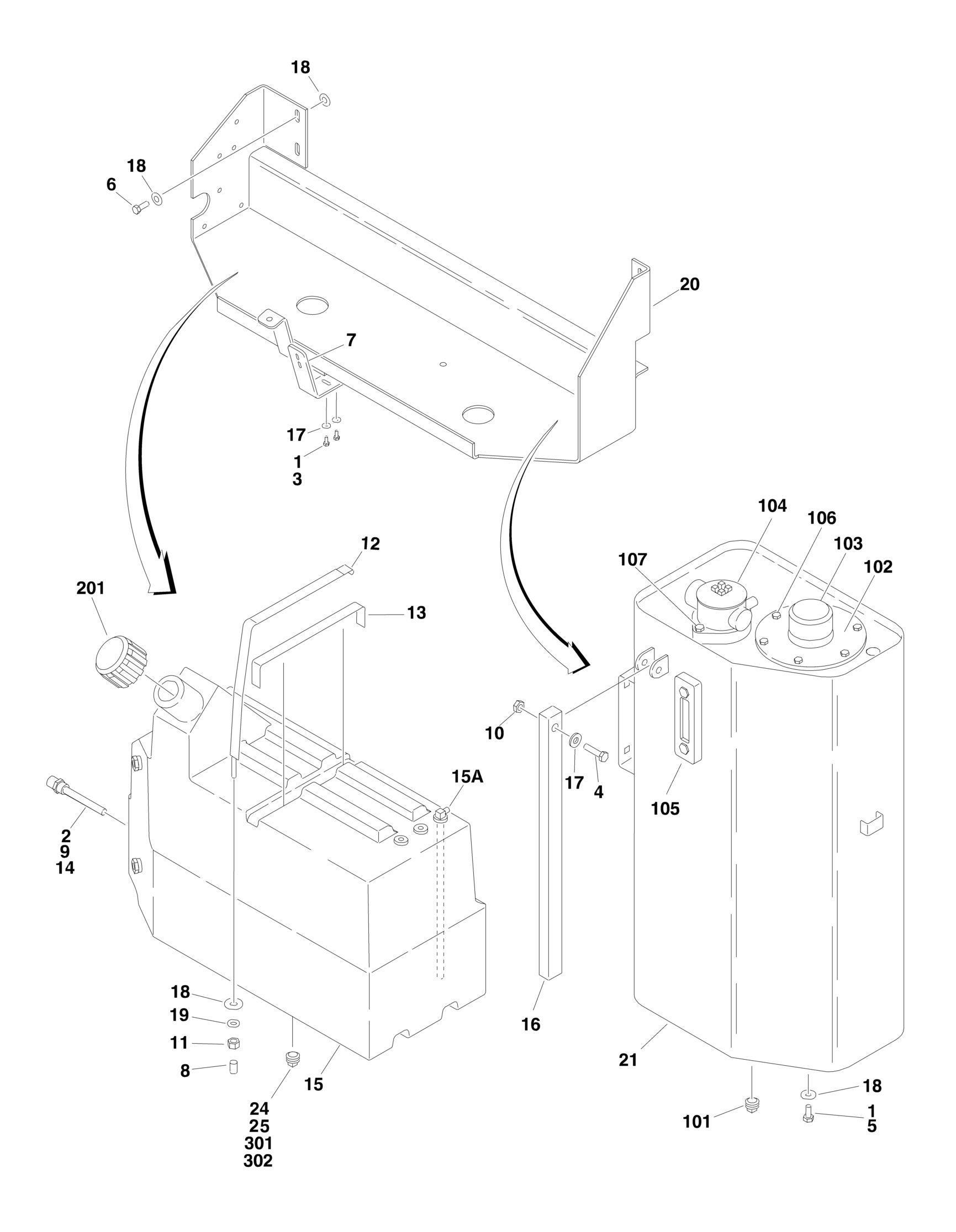

FIGURE 2-11. TANK INSTALLATIONS
FIGURE 2-11. TANK INSTALLATIONS
FIGURE 2-11. TANK INSTALLATIONS
ITEM PART NUMBER QTY
1001144403 Ref TANK INSTALLATION
DESCRIPTION
1 0100011 AR Compound, Locking 2 1001182997 AR Adhesive 3 0641405 2 Bolt 1/4in-20NC x 5/8in 4 0641416 1 Bolt 1/4in-20NC x 2in 5 0641606 3 Bolt 3/8in-16NC x 3/4in 6 0641608 4 Bolt 3/8in-16NC x 1in 7 0902535 1 Bracket, Hood Latch 8 1120532 1 Cap, Protective 9 2820035 2 ft/.61m Insulate, Tubing 10 3311405 1 Locknut 1/4in-20NC 11 3311601 1 Nut 3/8in-16NC 12 4240145 1 Strap, Tank Mount 13 4280295 2 ft/.61m Strip, Bumper 14 4360436 1 Switch, Fuel Level 15 4400408 1 Tank, Fuel (Includes Standard Non-Locking Cap) (SN
E300001114 through E300002147)
15A 7020056 1 Fitting and Pick-up Tube (Supply Line) 15 1001160569 1 Tank, Fuel (Includes Standard Non-Locking Cap) (SN
E300002148 to Present)
15a 70004786 1 Fitting and Pick-up Tube (Supply Line) 16 4567627 1 Tube, Hood Prop 17 4751400 4 Flatwasher 1/4in Regular 18 4751600 10 Flatwasher 3/8in Regular 19 4761600 4 Lockwasher 3/8in 20 4846665 1 Tray Weldment 21 1001141821 1 Hydraulic Tank Assembly (See Items 101-107 for Breakdown) (Use p/n 1001153619) 24 0100020 AR Sealant, Pipe 25 2200222 1 Plug, Pipe Ref HYDRAULIC TANK ASSEMBLY 1001141821 Ref Original Equipment 1001153619 Ref Service Replacement Ref Note: Original Equipment Tank may have been replaced with
Service Replacement Tank p/n 1001153619. Identify p/n stamped on tank before ordering parts.
101 7024446 1 Plug, Magnetic 102 7024439 1 Cover 103 7024444 1 Cap 103 7024445 1 Strainer 103 Ref Neck, Fill Options: 7024443 1 Neck, Fill (USA Built Machines) 70004862 1 Neck, Fill (Romanian Built Machines) 103 7024440 1 Gasket (Cover to Tank) 104 70001959 1 Filter, Return 104 70001960 1 Element, Filter 104 7023347 1 Gasket (Filter Flange to Tank) 104 7023306 Seal (Filter Cap to Filter Housing 105 Ref Gauge, Sight Options: 105 70003865 1 1001141821 Tank 105 7024441 1 1001153619 Tank
REV
D
C C
ITEM PART NUMBER QTY DESCRIPTION
106 83304174 6 Nut 1/4in-20NC 106 83304173 6 Flatwasher 1/4in Regular 106 83304172 6 Stud 1/4in-20NC 107 83304170 2 Bolt 3/8in-16NC x 1-1/4in 107 4751600 2 Flatwasher 3/8in Regular 201 Ref FUEL CAP OPTIONS 201 7016314 Ref Cap, Fuel (Standard) 201 1120487 Ref Cap, Fuel (Optional) Ref ENGINE INSTALLATIONS 301 2200222 1 Plug 302 0100020 AR Sealant, Pipe
