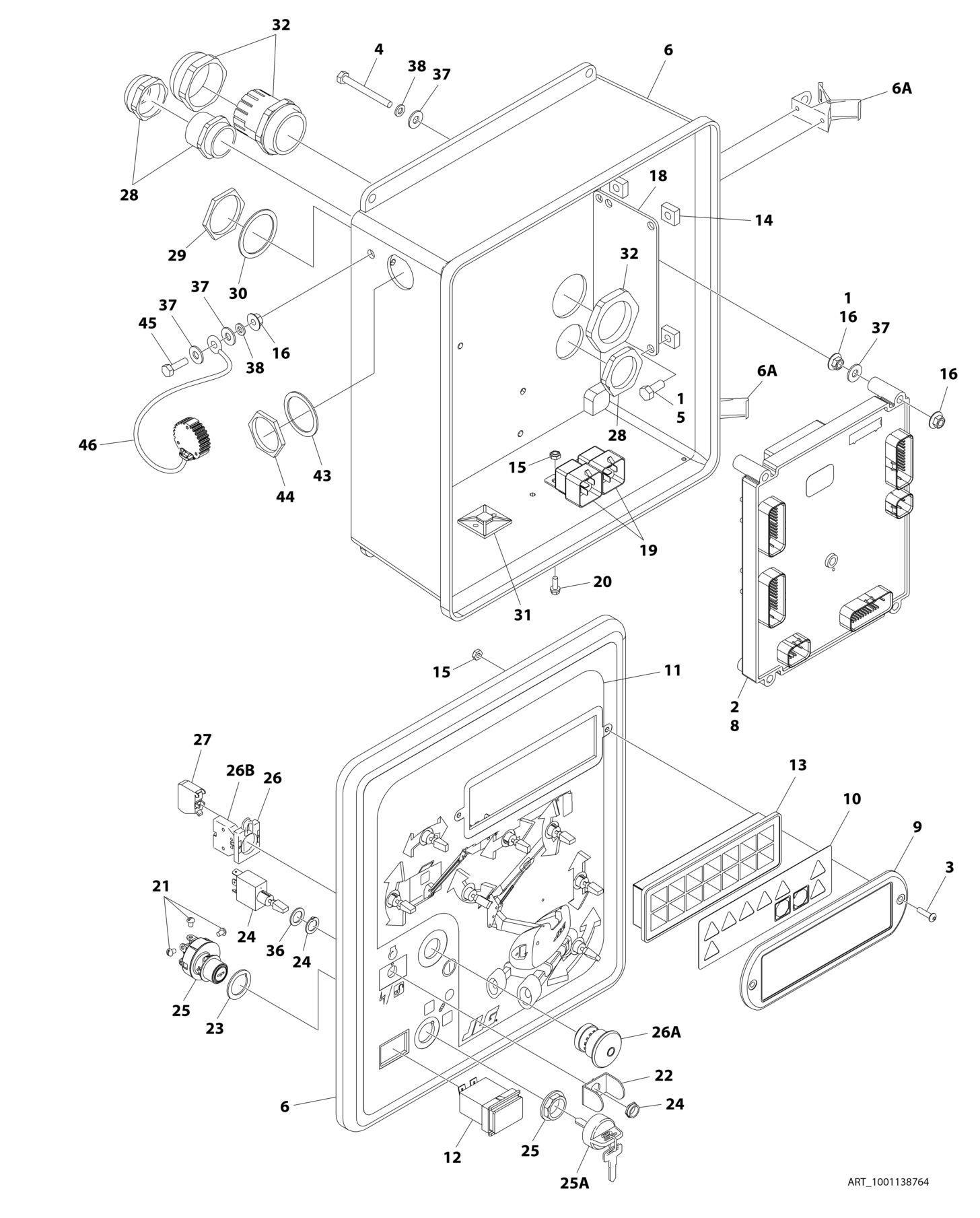

FIGURE 2-12. GROUND CONTROL BOX ASSEMBLY (FIBERGLASS BOX
ITEM PART NUMBER QTY
DESCRIPTION
Ref GROUND CONTROL BOX ASSEMBLIES (FIBERGLASS BOX) 1001138764 Ref Deutz Engine Machines (ANSI Export and Australian Specs)
(SN E300001114 through E300001997)
1001138676 Ref Deutz Engine Machines (CE Specs) (SN E300001114 through
E300001997)
1001138761 Ref Caterpillar Engine Machines (CE Specs) Ref Note: Caterpillar Engines not available on ANSI Export and
Australian Specs.
1 0100011 AR Compound, Locking 2 0100048 AR Grease, Dielectric 3 0630518 2 Screw, Button Head 4 0630548 5 Bolt 5 0641506 4 Bolt 5/16in-18NC x 3/4in 6 1001105784 1 Box, Fiberglass 6A 7020246 2 Latch 8 1001103667 1 Module, Control (Re-calibration Required When Replaced) 9 1670829 1 Bezel 10 1706712 1 Decal - Ground Control Display 11 1001102598 1 Decal - Faceplate 12 2420172 1 Gauge, Hourmeter 13 2760105 1 Housing, Display Light 14 3300205 4 Nut, Retainer 15 3300408 4 Locknut, Plastic Insert 16 77143013 11 Locknut 1/4in-20NC 18 3539219 1 Plate, Reinforcement 19 3740049 2 Relay - SPDT 20 3900268 2 Screw #10-24NC x 1/2in 21 3910804 6 Screw #8-32NC x 1/4in 22 4060906 1 Shield, Toggle Switch 23 4070987 1 Shim (.015in) 23 1001151393 1 Shim, Nylon (.068in) 24 4360328 8 Switch, Toggle 25 Ref Switch, Key Options: 25 4360469 1 ANSI Export and Australian Specs 25 4360470 1 CE Specs 25A 2860030 1 Key 26 4360475 1 Switch, Emergency Stop 26A 7020175 1 Cap, Mushroom Head 26B 7020176 1 Block, Contact 27 4360476 1 Switch, Contact Block 28 4460426 1 Connector, Strain Relief 29 4460470 1 Nut, Terminal 30 4460471 1 Locknut, Terminal 31 4460488 10 Base, Terminal Mounting 32 4460526 1 Connector, Strain Relief 36 4740444 8 Washer, Special 37 4751400 12 Flatwasher 1/4in Regular 38 4761400 6 Lockwasher 1/4in 39 1001138588 1 Valve Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown)
REV
C
C
B
ITEM PART NUMBER QTY
DESCRIPTION
40 Ref Engine Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 40 1001139084 1 Caterpillar Engine Machines 40 1001139085 1 Deutz Engine Machines 41 1001105636 1 Ground Control Box Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 43 4460496 1 Lockwasher 44 4460497 1 Nut 45 0641407 1 Bolt 1/4in-20NC x 7/8in 46 1001106736 1 Cap, Dust
