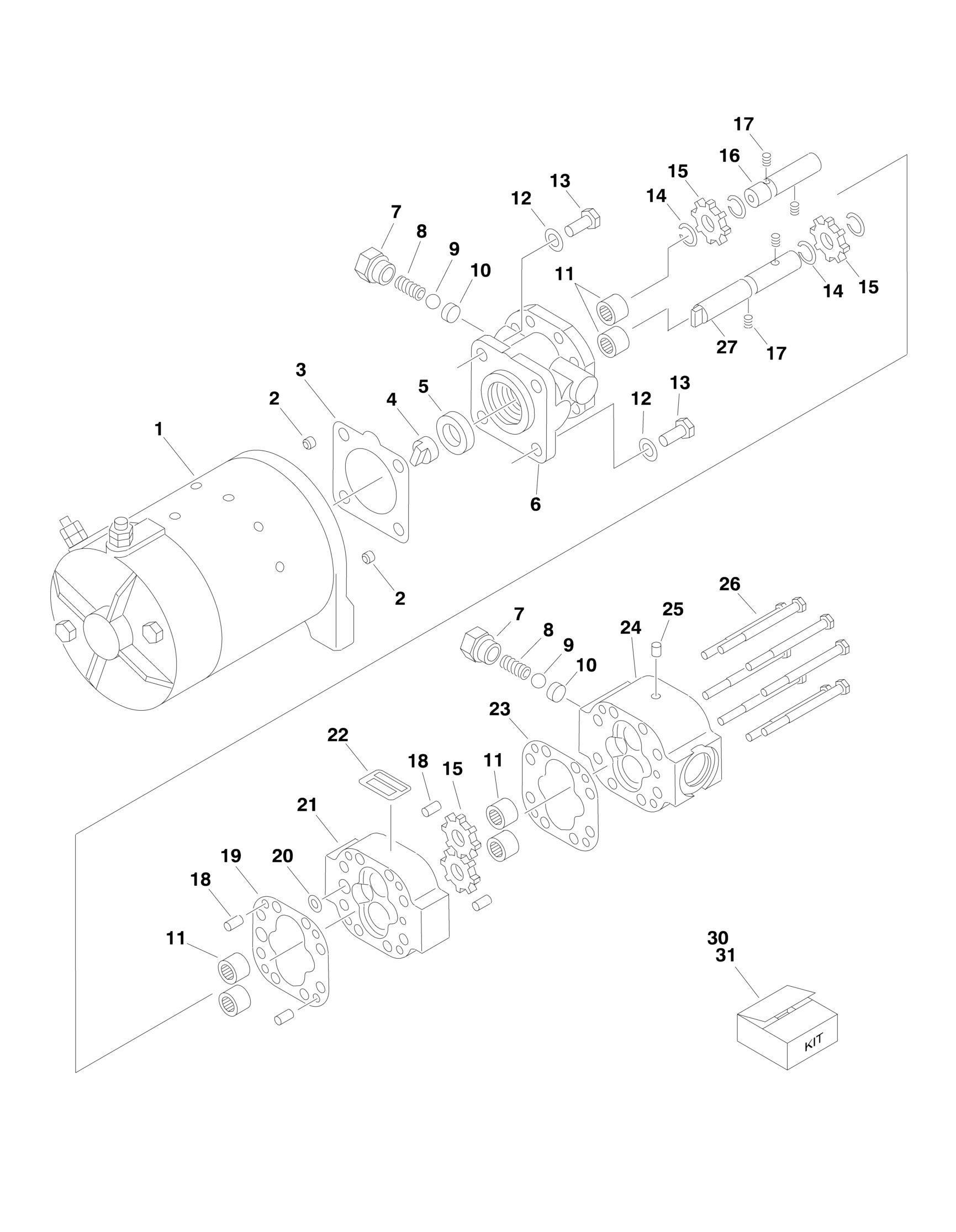

FIGURE 2-10. AUXILIARY PUMP ASSEMBLY

FIGURE 2-10. AUXILIARY PUMP ASSEMBLY

FIGURE 2-10. AUXILIARY PUMP ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

3600423 Ref AUXILIARY PUMP ASSEMBLY 1 7011067 1 Motor and Adapter 2 See Note 2 Setscrew (Note: Not Available - Purchase Locally) 3 7011044 1 Gasket, Mounting 4 7011016 1 Coupling 5 70000969 1 Seal, Shaft 6 70000978 1 Stator 7 See Note 2 Cap Assembly (Note: Use Item 30 or 31.) 8 70000978 2 Spring 9 70000978 2 Ball 10 70000978 2 Seat 11 70000976 6 Bearing, Needle 12 70000978 4 Washer 13 70000978 4 Screw 14 70000970 4 Ring, Retaining 15 70000971 4 Gear 16 70000972 1 Shaft, Idler 17 70000978 4 Pin, Drive 18 70000978 4 Pin, Dowel 19 70000973 1 Gasket 20 See Note 1 O-Ring (Note: Use Item 30 or 31.) 21 70000978 1 Housing, Gear 22 See Note 1 Label (Note: Not Available for Purchase) 23 7000974 1 Gasket 24 70000978 1 Housing, Gear 25 70000978 1 Plug 26 70000978 8 Screw 27 70000975 1 Shaft, Drive 30 70000977 1 Seal Kit (Includes Items 3, 5, 20 & Qty 2 O-Rings for Item 7) 31 70000978 1 Replacement Pump Kit (Includes Items 3-21 & 23-27)

REV

A
