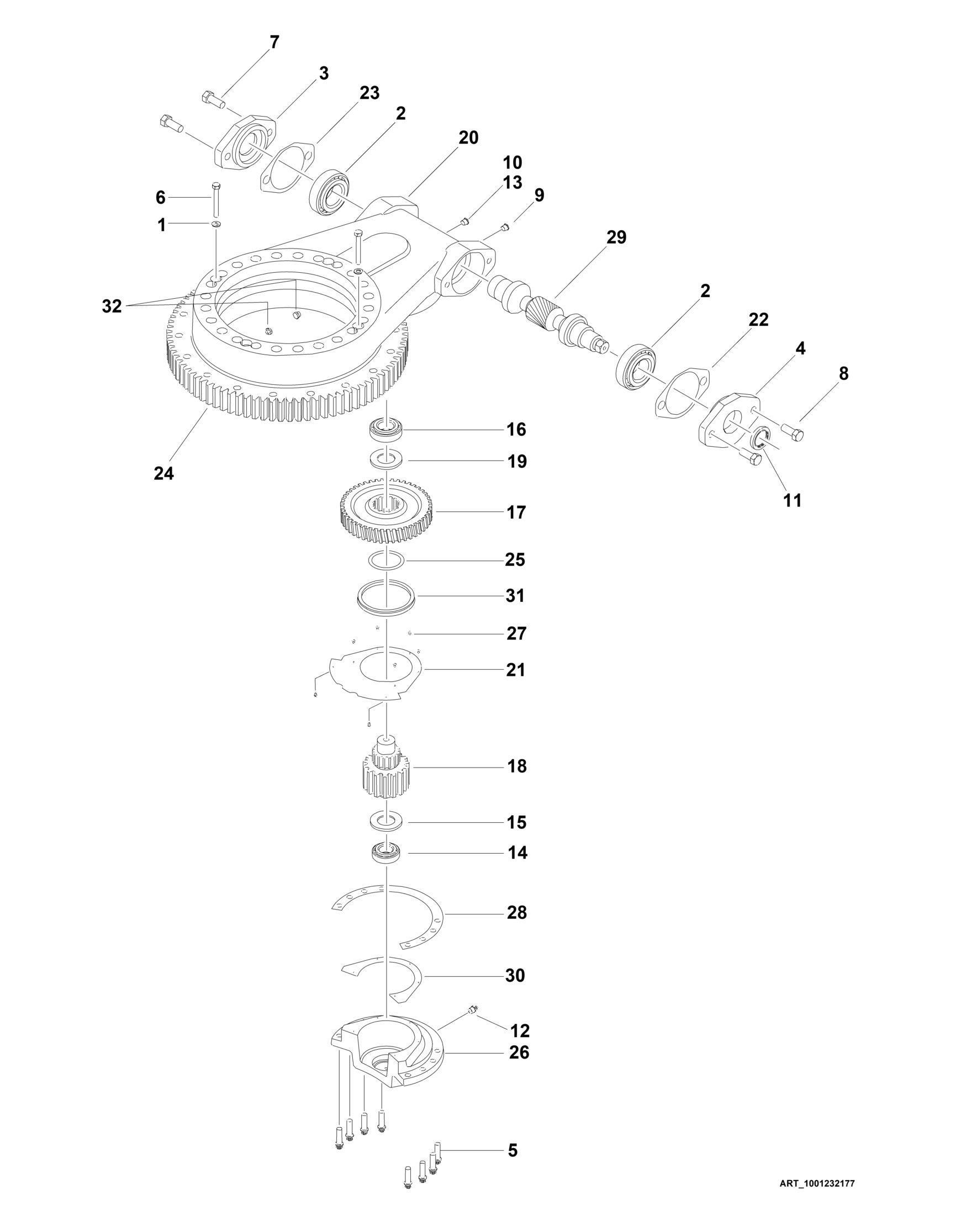

FIGURE 2-6. SWING BEARING AND ROTATION BOX ASSEMBLY (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001231277 Ref SWING BEARING AND ROTATION BOX ASSEMBLY 1 7026041 2 Flatwasher 5/16 2 7026042 2 Cup, Bearing 2 7026043 2 Cone, Bearing 3 7027356 1 Adapter, Motor 4 7027354 1 Cap, Worm 5 70006739 8 Bolt 3/8 x 1-1/4 6 70003138 2 Bolt 5/16 x 2-1/2 7 70002647 2 Bolt 1/2 x 1 8 70002648 1 Bolt 1/2 x 1-1/4 9 70000865 2 Plug 10 70002649 1 Vent, Pressure 11 7027360 1 Seal, Oil 12 70002651 1 Fitting, Grease 13 7026044 1 Bushing, Reducer 14 7026045 1 Cup, Bearing 14 7026047 1 Cone, Bearing 15 7026046 1 Ring, Grease 16 7026048 1 Cup, Bearing 16 7026049 1 Cone, Bearing 17 7026050 1 Worm-Gear 18 7026051 1 Pinion, Output 19 7026052 1 Spacer, Washer 20 See Note 1 Housing (Note: Not Available - Purchase Complete Assy) 21 7026053 1 Cover, Gear 22 7027352 AR Shim, Brown (.010) 22 7027351 AR Shim, Clear (.0075) 22 7027350 AR Shim, Blue (.005) 23 70006740 1 Shim, Yellow(.020) 24 70006741 1 Shim, Blue (.005) 25 70004254 1 O-Ring 26 7026055 1 Cap, Gear 27 70000681 8 Screw #6 x 3/8 28 70004259 AR Shim, Natural (.0075 28 70004258 AR Shim, Blue (.005) 28 70004257 AR Shim, Green (.003) 29 7026057 1 Worm, Ground 30 70004260 1 Shim, Blue (.005) 30 70004261 1 Shim, Yellow (.020) 31 70004262 1 Seal, Oil 32 70006742 1 Plug
REV
B
