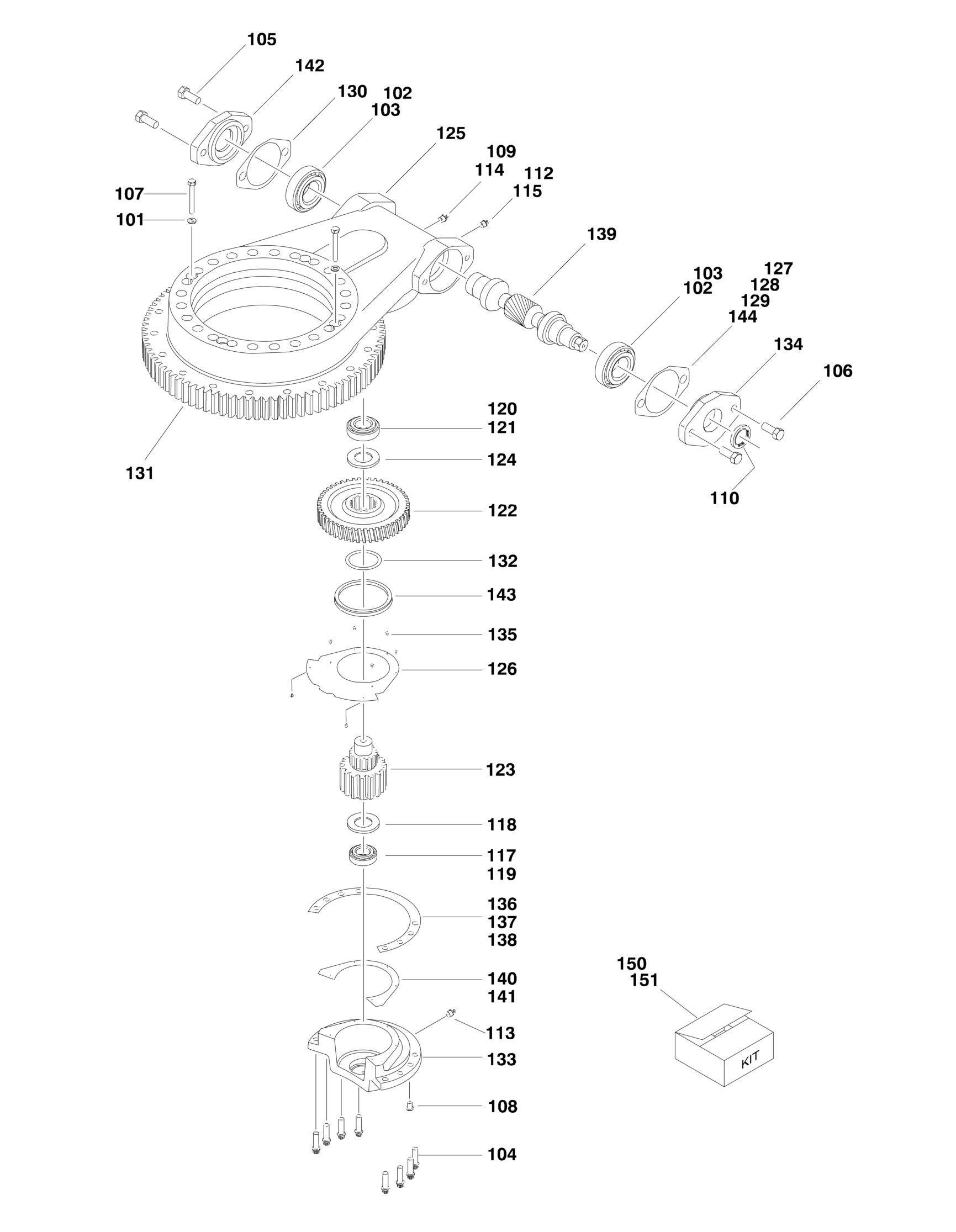

FIGURE 2-5. SWING BEARING AND ROTATION BOX ASSEMBLY (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref SWING BEARING AND ROTATION BOX ASSEMBLIES 0440272 Ref Perfection Gear Dohi Version 1001153016 Ref Perfection Gear Jing Wei Version 101 4891500 2 Flatwasher 5/16in Hardened 102 7026042 2 Cup, Bearing 103 7026043 2 Cone, Bearing 104 0681610 8 Bolt 3/8in-16NC x 1-1/4in (Grade 8) 105 0641808 2 Bolt 1/2in-13NC x 1in 106 0641810 2 Bolt 1/2in-13NC x 1-1/4in 107 0641520 2 Bolt 5/16in-18NC x 2-1/2in 108 See Note 1 Plug 1/8in (Note: Not Available - Purchase Locally) 109 See Note 1 Plug (Note: Not Available - Purchase Locally) 110 7026060 1 Seal, Oil 112 See Note 2 Cap (Note: Not Available - Purchase Complete Assembly) 113 See Note 1 Fitting, Grease (Note: Not Available - Purchase Locally) 114 7026044 1 Bushing, Reducer 115 7027358 1 Fitting, Grease 117 7026045 1 Cup, Bearing 118 7026046 1 Ring, Grease 119 7026047 1 Cone, Bearing 120 7026048 1 Cup, Bearing 121 7026049 1 Cone, Bearing 122 7026050 1 Worm-Gear 123 7026051 1 Pinion, Output 124 7026052 1 Spacer, Washer 125 See Note 1 Housing (Note: Not Available - Purchase Complete Assembly) 126 7026053 1 Cover, Gear 127 7026059 AR Shim, Brown (.010in) 128 7026059 AR Shim, Clear (.0075in) 129 7026059 AR Shim, Blue (.005in) 130 7026059 AR Shim, Yellow (.020in) 131 Ref Bearing, Turntable Options: 131 70000042 1 DOHI Brand 131 70004158 1 JING WEI Brand 132 7026060 1 O-Ring 133 7026055 1 Cap, Gear 134 7027354 1 Cap, Worm 135 70000681 8 Screw #6-32 x 3/8in 136 7026059 AR Shim, Natural (.0075) 137 7026059 AR Shim, Blue (.005) 138 7026059 AR Shim, Green (.003) 139 7026057 1 Worm, Ground 140 7026059 AR Shim, Blue (.005) 141 7026059 AR Shim, Yellow (.020) 142 7027356 1 Adapter, Motor 143 7026060 1 Seal, Face 144 7026059 AR Shim, Green (.003) 150 7026060 1 Seal Kit (Includes Items 110, 132 & 143) 151 7026059 1 Shim Kit (Includes Items 127-130, 136-138, 140-141 & 144)
REV
E B
