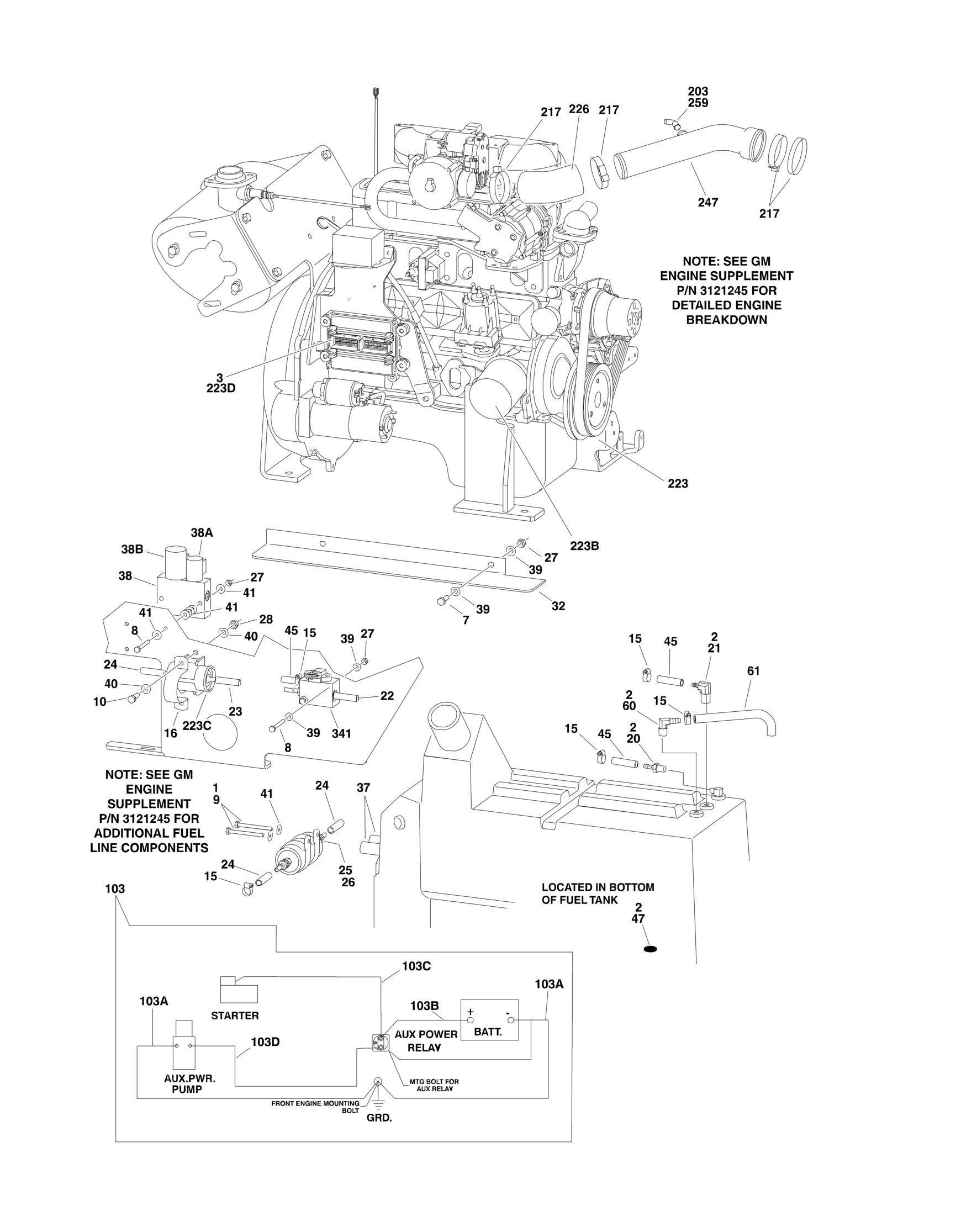

FIGURE 2-17. USA BUILT MACHINES/GM ENGINE INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
Ref GM ENGINE INSTALLATION 0275015 Ref GM Engine Installation (SN 0300065080 through 0300107511) E 0275870 Ref GM Engine Installation (SN 0300107512 through 0300109285) B 1001091602 Ref GM Engine Installation (SN 0300109286 through 0300123999) E 1 0100011 AR Compound, Locking 2 0100020 AR Sealant, Pipe 3 0100048 AR Grease, Dielectric 4 0181727 1 Angle, Battery Hold Down 5 0400075 1 Battery (Wet) 6 0630498 2 Bolt, Battery Hold Down 7 0641407 2 Bolt 1/4in-20NC x 7/8in 8 0641418 4 Bolt 1/4in-20NC x 2-1/4in 9 0641420 2 Bolt 1/4in-20NC x 2-1/2in (Not Shown) 10 0641508 2 Bolt 5/16in-18NC x 1in 11 0641610 2 Bolt 3/8in-16NC x 1-1/4in 12 0642010 1 Bolt 5/8in-11NC x 1-1/4in 13 0902443 1 Bracket, Hood Latch Mount 14 0902444 1 Bracket, Hood Support 15 1320022 5 Clamp, Fuel Line 16 1320323 1 Clamp 17 1701542 1 Decal, Gas (Not Shown) 18 1701543 1 Decal, LPG (Not Shown) 19 1703876 1 Decal, Engine Tray Swing 20 2180348 1 Fitting, Barbed 21 2221176 1 Fitting, Elbow 22 2720565 1 Hose (78in/2m Length) 23 2720566 1 Hose (6in/15cm Length) 24 2720567 1 Hose (48in/122cm Length) 25 3290405 1 Locknut M4 x 0.7 26 3290505 1 Locknut M5 x 0.8 27 3311405 6 Locknut 1/4in-20NC 28 3311505 2 Locknut 5/16in-18NC 29 3311605 2 Locknut 3/8in-16NC 30 3312005 1 Locknut 5/8in-11NC 31 3340399 1 Pad, Wear 32 3380694 1 Panel, Shield 33 3790012 1 O-Ring (Not Shown - Located in Console Box) 34 3900254 1 Screw, Shoulder 35 4240099 1 Wire, Tie (Not Shown) 36 4360336 1 Switch, Toggle (Not Shown - Located in Console Box) 37 4568114 2 Tube, Spacer 38 Ref Valve Options: 38 4641108 NLA Valve (Use p/n 1001099391) (SN 0300065080 through
0300107511)
38 4641317 1 Valve (SN 0300107512 through 0300123999) 38A Ref Cartridge and Coil Options: Ref Note: Original Equipment Valve may have been replaced
with Service Replacement Valve. Identify p/n stamped on valve before ordering parts.
38A 7012974 1 Cartridge without Coil (4641108 Valve)
ITEM PART NUMBER QTY
DESCRIPTION
38A 7010543 1 Seal Kit - 7012974 Cartridge 38A 7012941 1 Cartridge without Coil (4641317 & 1001099391 Valves) 38A 7010543 1 Seal Kit - 7012941 Cartridge 38A 7012944 1 Coil (4641108 Valve) 38A 7012944 1 Coil (4641317 & 1001099391 Valves) 38B Ref Cartridge and Coil Options: Ref Note: Original Equipment Valve may have been replaced
with Service Replacement Valve. Identify p/n stamped on valve before ordering parts.
38B 7012995 1 Cartridge without Coil (4641108 & 1001099391 Valves) 38B 7012518 1 Seal Kit - 7012995 Cartridge 38B 7012941 1 Cartridge without Coil (4641317 Valve) 38B 7010543 1 Seal Kit - 7012941 Cartridge 38B 7012943 1 Coil (4641108 & 1001099391 Valves) 38B 7012944 1 Coil (4641317 Valve) 39 4711400 8 Flatwasher 1/4in Thin 40 4711500 4 Flatwasher 5/16in Thin 41 4751400 14 Flatwasher 1/4in Regular 42 4751600 6 Flatwasher 3/8in Regular 43 4752000 1 Flatwasher 5/8in Regular 44 4752200 2 Flatwasher 3/4in Regular 45 Ref Hose Options: 45 2720058 7.5 ft /2.3m Hose (SN 0300065080 through 0300109285) 45 1001091587 7.5 ft /2.3m Hose (SN 0300109286 through 0300123999)
46
Ref Decal - Warning Explosion/Fire Options: (SN 0300092804
through 0300123999)
46 1704972 1 ANSI Spec 46 1706059 1 Brazilian Spec 46 1706060 1 Chinese Spec 46 1706064 1 CSA Spec 46 1706062 1 Japanese Spec 46 1706061 1 Korean Spec 46 1706063 1 Spanish Language 47 2200222 1 Plug, Pipe 48 2300004 2.7 gal /10.2L Coolant, Antifreeze (Not Shown) 60 2220313 1 Fitting, Elbow Barbed Only (SN 0300065080 through
0300109286)
61 2750532 7 ft/2.13m Hose Only (SN 0300065080 through 0300109286) Ref GM ENGINE AND PUMP SUB-ASSEMBLY 2000357 Ref GM Engine and Pump Sub-Assembly (SN 0300065080 through
0300109285)
1001091601 Ref GM Engine and Pump Sub-Assembly (SN 0300109286 through
0300123999)
101 0100011 AR Compound, Locking 102 0641812 2 Bolt 1/2in-13NC x 1-1/2in 103 2902510 1 Battery Cable Kit 103A 7016840 1 Cable (Battery - to Ground) 103B 7016839 1 Cable (Battery + to Auxiliary Relay) 103C 7027014 1 Cable (Auxiliary Relay to Starter) 103D 7016841 1 Cable (Auxiliary Relay to Auxiliary Pump)
