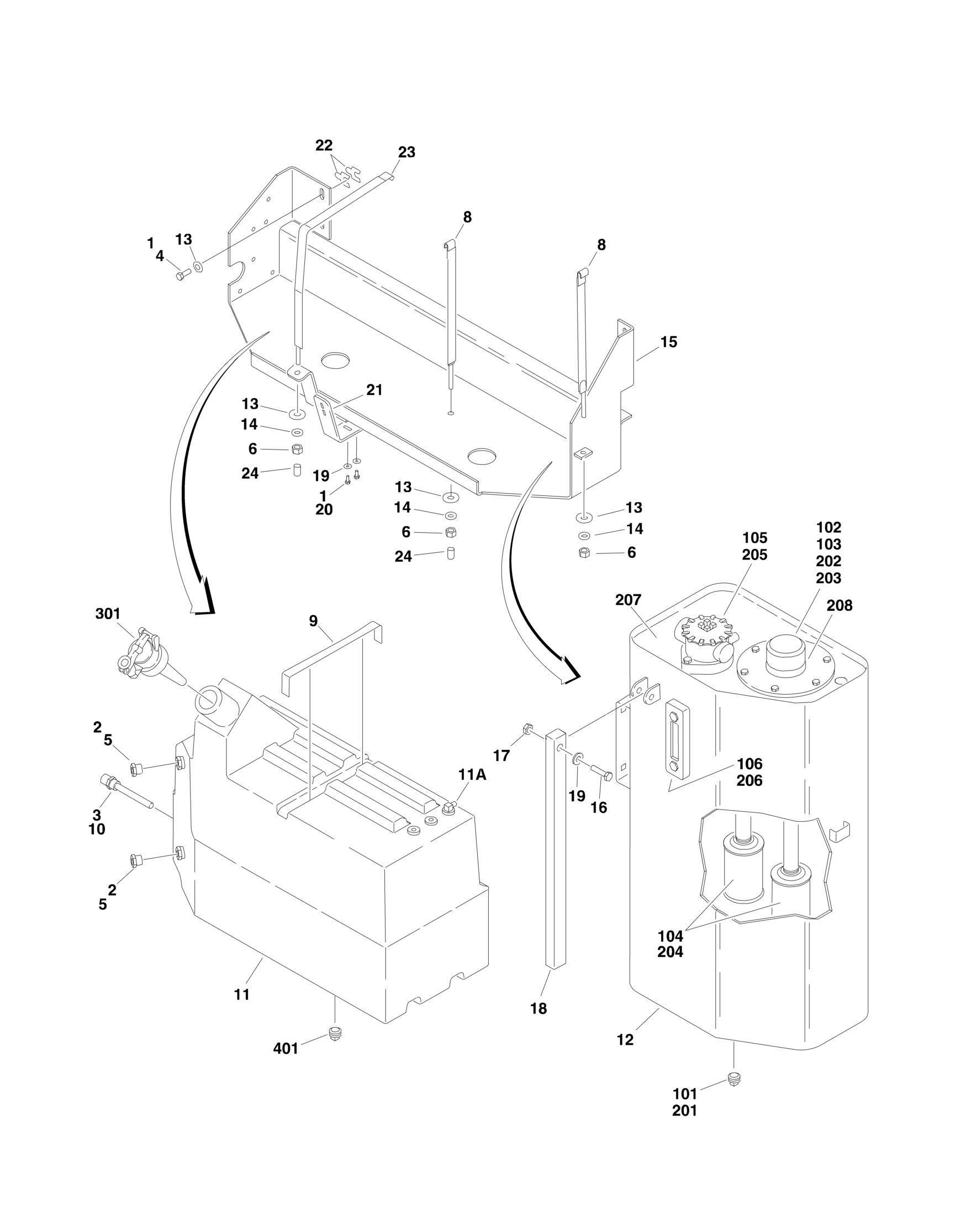

FIGURE 2-26. TANK INSTALLATIONS

FIGURE 2-26. TANK INSTALLATIONS

FIGURE 2-26. TANK INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref TANK INSTALLATIONS 0271074 Ref USA Built Machines (SN 0300065080 through 0300070585) D 0272669 Ref USA Built Machines (SN 0300070586 through 0300109285) E 0272669 Ref USA Built Diesel Engine Machines (SN 0300109286 through

0300123999)

E 1001091567 Ref USA Built Gas Engine Machines (SN 0300109286 through

0300123999)

A 0271074 Ref Belgium Built Machines (Including 1300000001) D 0272669 Ref Belgium Built Machines (SN 1300000002 through 1300000004) D 0272491 Ref Belgium Built Machines (SN 1300000005 through 1300006000) E 1 0100011 AR Compound, Locking 2 0100020 AR Sealant, Pipe 3 0100079 AR Permatex 4 0641608 4 Bolt 3/8in-16NC x 1in 5 2420115 2 Gauge, Sight 6 Ref Nut Options: 3/8in-16NC 6 3311601 3 Nut (0271074 / 0272491 Installation) 6 Not Required 1 Nut (0272669/1001091567 Installation) 8 Ref Strap, Tank Mount Options: 8 4240136 2 Strap, Tank Mount (0271074 Installation) 8 Not Required 1 Strap, Tank Mount (0272491/0272669/1001091567 Installations) 9 4280295 2 ft/.61m Strip, Bumper 10 4360436 1 Switch, Fuel Level 11 Ref Tank, Fuel Options (Includes Standard Non-Locking Cap): 11 4400408 1 Tank, Fuel (0271074 / 0272669 / 0272491 Installations) 11 1001091560 1 Tank, Fuel (1001091567 Installation) 11A 7020056 1 Fitting and Hose (Supply Line) 12 Ref Hydraulic Tank Assembly Options: 12 4400435 1 Hydraulic Tank Assembly (0271074 Installation) (See Items 101-106 for Breakdown) 12 4400451 1 Hydraulic Tank Assembly (0272669 / 0272491 / 1001091567 Installations) (See Items 201-209 for Breakdown) 13 4751600 8 Flatwasher 3/8in Regular 14 4761600 4 Lockwasher 3/8in 15 Ref Tray Weldment Options: 15 4846375 1 Tray Weldment (0271074 / 0272669 / 1001091567 Installations) 15 4846665 1 Tray Weldment (0272491 Installation) 16 0641416 1 Bolt 1/4in-20NC x 2in 17 3311405 1 Locknut 1/4in-20NC 18 4567627 1 Tube, Hood Prop 19 4751400 4 Flatwasher 1/4in Regular 20 0641405 2 Bolt 1/4in-20NC x 5/8in 21 0902535 1 Bracket, Hood Latch 22 4070410 2 Shim 23 4240145 1 Strap, Tank Mount 24 1120532 2 Cap, Protective 25 2820035 2 ft/.61m Insulate, Tubing (Not Shown) Ref Hydraulic Tank Assembly Options: 4400435 Ref 0271074 Tank Installation F 101 7014812 1 Plug, Magnetic

ITEM PART NUMBER QTY DESCRIPTION

102 7014811 1 Breather/Fill Cap 103 7014816 1 Screen 104 7014801 2 Strainer 105 7020226 1 Assembly Filter, Return 105 7023205 1 Filter, Element 106 7014802 1 Gauge, Sight 4400451 Ref 0272669 Tank Installation G

4400451 Ref 0272491 Tank Installation 4400451 Ref 1001091567 Tank Installation 201 7024446 1 Plug, Magnetic 202 7024444 1 Cap, Fill (LENZ BRAND) 202 See Note 1 Cap Fill (HYDAC BRAND) (Note: Use p/n 70004862) 203 7024445 1 Screen (LENZ BRAND) 203 See Note 1 Screen (HYDAC BRAND) (Note: Use p/n 70004862) 204 7024442 2 Strainer 205 7020226 1 Assembly Filter, Return 205 7023205 1 Filter, Element 205 70002768 1 Spring, Return Filter Assembly 206 7024441 1 Gauge, Sight 207 7024439 1 Cover 208 7024443 1 Filler Neck 209 7024440 1 Gasket (Not Shown) 301 Ref FUEL CAP OPTIONS 301 7016314 Ref Standard Non-Locking Cap (Diesel Engine Machines) 301 7016314 1 Standard Non-Locking Cap (Gas Engine Machines) (SN

0300065080 through 0300109285)

301 70001103 Ref Standard Non-Locking Cap (Gas Engine Machines) (SN

0300109286 through 0300123999)

301 1120484 Ref Locking Cap (Red) 301 1120487 Ref Locking Cap (Blue) Ref ENGINE INSTALLATIONS 401 2200222 1 Plug 401 0100020 AR Sealant

REV

G G
