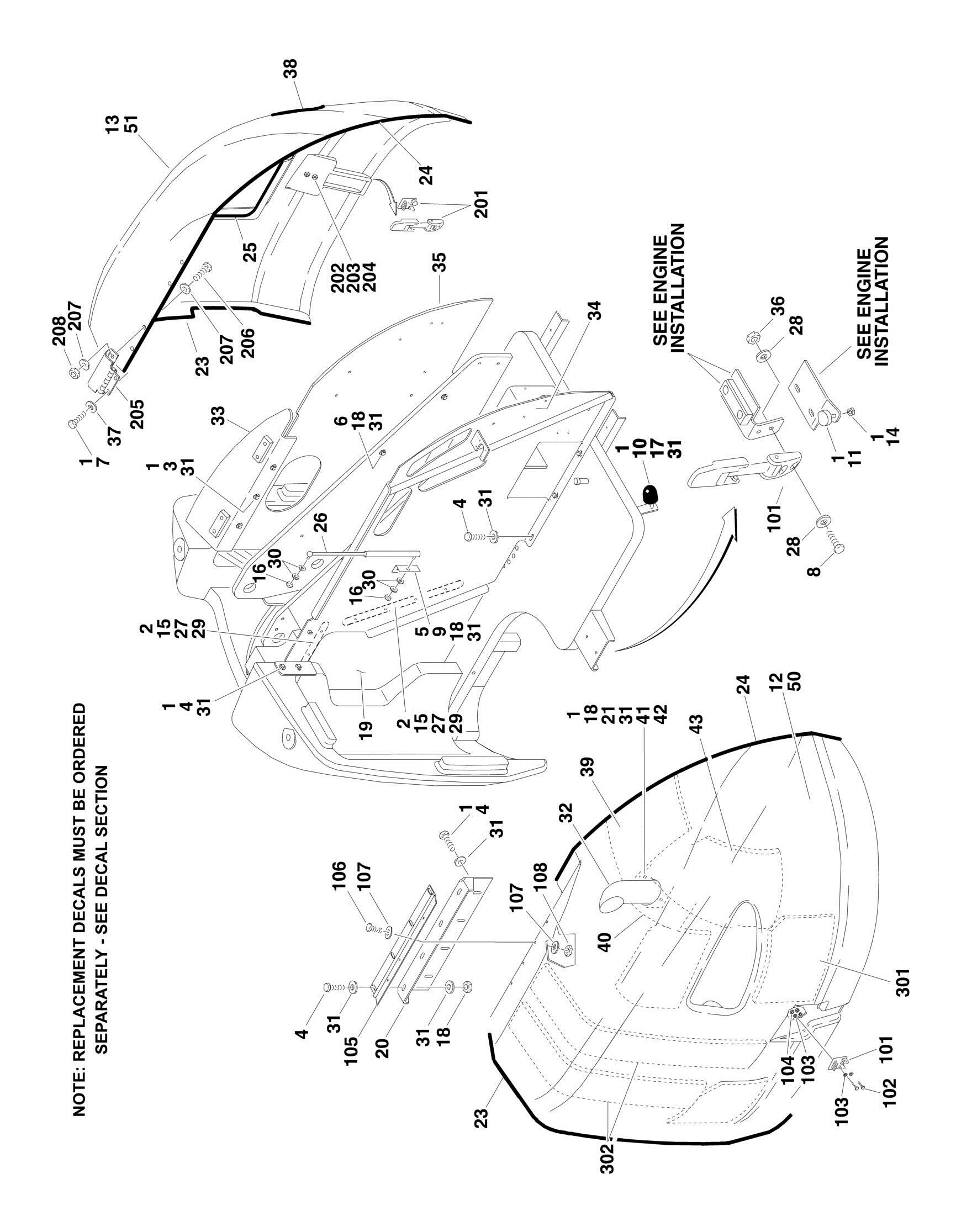

FIGURE 2-29. HOODS INSTALLATION

FIGURE 2-29. HOODS INSTALLATION

FIGURE 2-29. HOODS INSTALLATION

ITEM PART NUMBER QTY DESCRIPTION REV

Ref HOODS INSTALLATION Ref Caterpillar/Perkins Engine Machines 0271209 Ref USA Built Machines (SN 0300065080 through 0300107511) G 0275866 Ref USA Built Machines (SN 0300107512 through 0300123999) C 0271209 1 Belgium Built Machines (Prior to SN 1300003222) G 0275866 1 Belgium Built Machines (SN 1300003222 through

1300006000)

C Ref Deutz Engine Machines 0271209 1 USA Built Machines (SN 0300065080 through 0300107511) G 0275866 1 USA Built Machines (SN 0300107512 through 0300123999) C 0271209 1 Belgium Built Machines (Prior to SN 1300003222) G 1001091079 Ref Belgium Built Machines (SN 1300003222 through

1300006000)

C Ref Ford Engine Machines Options: 0271210 Ref Ford Engine Machines (SN 0300065080 through 0300078472) D 0274020 Ref Ford Engine Machines (SN 0300078473 through 0300123999) B Ref GM Engine Machines 0275033 Ref GM Engine Machines (SN 0300065080 through 0300107511) C 0275868 Ref GM Engine Machines (SN 0300107512 through 0300123999) A 1 0100011 AR Compound, Locking 2 0641408 6 Bolt 1/4in-20NC x 1-1/4in 3 0641606 3 Bolt 3/8in-16NC x 3/4in 4 0641608 13 Bolt 3/8in-16NC x 1in 5 0641610 2 Bolt 3/8in-16NC x 1-1/4in 6 0641614 4 Bolt 3/8in-16NC x 1-3/4in 7 0721004 4 Bolt #10-24NC x 1/2in 8 0721006 4 Bolt #10-24NC x 3/4in 9 0902504 1 Angle, Mounting 10 0940071 1 Bumper 11 0940083 2 Bumper 12 See Note 1 Hood (Engine Side) (See Items 101-108 for Breakdown) (was p/ns 2680438 & 1671169) (Note: Use Item 50) 13 See Note 1 Hood (Tank Side) (See Items 201-208 for Breakdown) (was p/n 2680439) (Note: Use Item 51) 14 3311401 2 Nut 1/4in-20NC 15 3311405 6 Locknut 1/4in-20NC 16 3311505 2 Nut 5/16in - 18NC 17 3311601 5 Nut 3/8in-16NC 18 3311605 10 Locknut 3/8in-16NC 19 3380445 1 Panel, Rubber 20 3573024 1 Plate, Hinge Mounting 21 3900232 3 Capscrew, Button Head 3/8in-16NC 1-1/4in 23 3960462 9 ft/2.74m Seal, Hood 24 3960464 9 ft/2.74m Seal, Hood 26 4160170 1 Spring, Gas 27 4740362 6 Washer, Fender 28 4750800 12 Flatwasher #8 Regular 29 4751400 6 Flatwasher 1/4in Regular 30 4751500 4 Flatwasher 5/16in Regular 31 4751600 40 Flatwasher 3/8in Regular

ITEM PART NUMBER QTY

DESCRIPTION

32 Ref Exhaust Tube Weldment Options: 32 4845194 1 Caterpillar/Deutz/Perkins Engine Machines 32 4845194 1 Ford Engine Machines (SN 0300065080 through

0300078472)

32 3460373 1 Ford Engine Machines (SN 0300078473 through

0300123999)

32 3460373 1 GM Engine Machines 33 4846037 1 Hood Mounting Weldment 34 Ref Hood Mounting Weldment Options: 34 4845665 NLA Caterpillar/Deutz Engine - USA Built Machines (Use p/n 4341390) (SN 0300065080 through 0300107511) 34 4845665 NLA Caterpillar/Deutz Engine - Belgium Built Machines (Use p/n 4341390) (Prior to SN 1300003222) 34 4341390 1 Caterpillar/Deutz/Perkins Engine - USA Built Machines (SN

0300107512 through 0300123999)

34 4341390 1 Caterpillar/Deutz/Perkins Engine - Belgium Built Machines

(SN 1300003222 through 1300006000)

4845665 NLA Ford Engine Machines (Use p/n 4341390) 34 4341177 NLA GM Engine Machines (Use p/n 4341389) (SN 0300065080

through 0300107511)

34 4341389 1 GM Engine Machines (SN 0300107512 through 0300123999) 35 4846424 1 Hood Mounting Weldment 36 3311005 4 Locknut #10-24NC 37 4751000 8 Flatwasher #10 Regular 38 4060805 6 ft/1.75m Flex-Trim 39 Ref Insulation, Heat Shield Options: 39 1001098567 1 Caterpillar/Perkins Engine Machines 39 Not Required 0 Deutz Engine Machines 39 Not Required 0 Ford Engine Machines (SN 0300065080 through

0300078472)

39 2820176 1 Ford Engine Machines (SN 0300078473 through

0300123999)

39 2820176 1 GM Engine Machines 40 Ref Insulation, Heat Shield Options: 40 1001098567 1 Caterpillar/Perkins Engine Machines 40 Not Required 0 Deutz Engine Machines 40 Not Required 0 Ford Engine Machines (SN 0300065080 through

0300078472)

40 2820177 1 Ford Engine Machines (SN 0300078473 through

0300123999)

40 2820177 1 GM Engine Machines 41 4740500 3 Washer, Special (Not Required on Deutz Engine Machines) 42 4061010 1 Shield, Heat (Not Required on Deutz Engine Machines) 43 Ref Insulation, Heat Shield Options: 43 1001098568 1 Caterpillar/Perkins Engine Machines 43 Not Required 0 Deutz Engine Machines 43 2820130 1 Ford Engine Machines (SN 0300065080 through

0300078472)

43 2820175 1 Ford Engine Machines (SN 0300078473 through

0300123999)

43 2820175 1 GM Engine Machines 50 Ref Hood Kit (Engine Side) Options: Ref Note: Replacement Decals Must be Ordered Separately -

See DECAL SECTION. REV

ITEM PART NUMBER QTY

DESCRIPTION

50 1001091093 1 Caterpillar/Perkins Engine USA Built Machines (Includes items 12, 23, 24, 32c) 50 1001101160 1 Caterpillar/Perkins Engine Belgium Built Machines (Includes items 12, 23, 24 and Current Heat Shields) Ref (Note: Item 32 must be ordered separately) 50 1001091124 1 Deutz Engine Machines (Includes items 12, 23, 24, 32 and Current Heat Shields) 50 1001097968 1 Ford Engine Machines (Includes Items 12 and Current Heat Shields) (Note: Item 32 must be ordered separately) 50 1001091094 1 GM Engine Machines (Includes items 12, 23, 24, 32 & Current Heat Shields) 51 1001091125 1 Hood Kit (Tank Side) (Includes items 13, 23, 24, 38 & 201-208) Ref Note: Replacement Decals Must be Ordered Separately -

See DECAL SECTION.

Ref HOOD ASSEMBLY OPTIONS (ENGINE SIDE): 101 2940109 1 Latch 102 0721008 2 Screw, Machine #10-24NC x 1in 103 4751000 4 Flatwasher #10 Regular 104 3311005 2 Locknut #10-24NC 105 2600210 1 Hinge 106 3900232 4 Screw, Button Head 3/8in-16NC x 1-1/4in 107 4751600 8 Flatwasher 3/8in Regular 108 3311605 4 Locknut 3/8in-16NC Ref HOOD ASSEMBLY (TANK SIDE) 201 2940109 1 Latch 202 0721008 2 Screw, Machine #10-24NC x 1in 203 4751000 4 Flatwasher #10 Regular 204 3311005 2 Locknut #10-24NC 205 2600246 2 Hinge 206 0721006 4 Screw, Machine #10-24NC x 3/4in 207 4751000 8 Flatwasher #10 Regular 208 3311005 4 Locknut #10-24NC 0258430 Ref NOISE REDUCTION INSTALLATION (DEUTZ ENGINE

MACHINES)

301 2820099 3 Insulation, Foam 302 2820100 2 Insulation, Foam

REV

M

2-B
