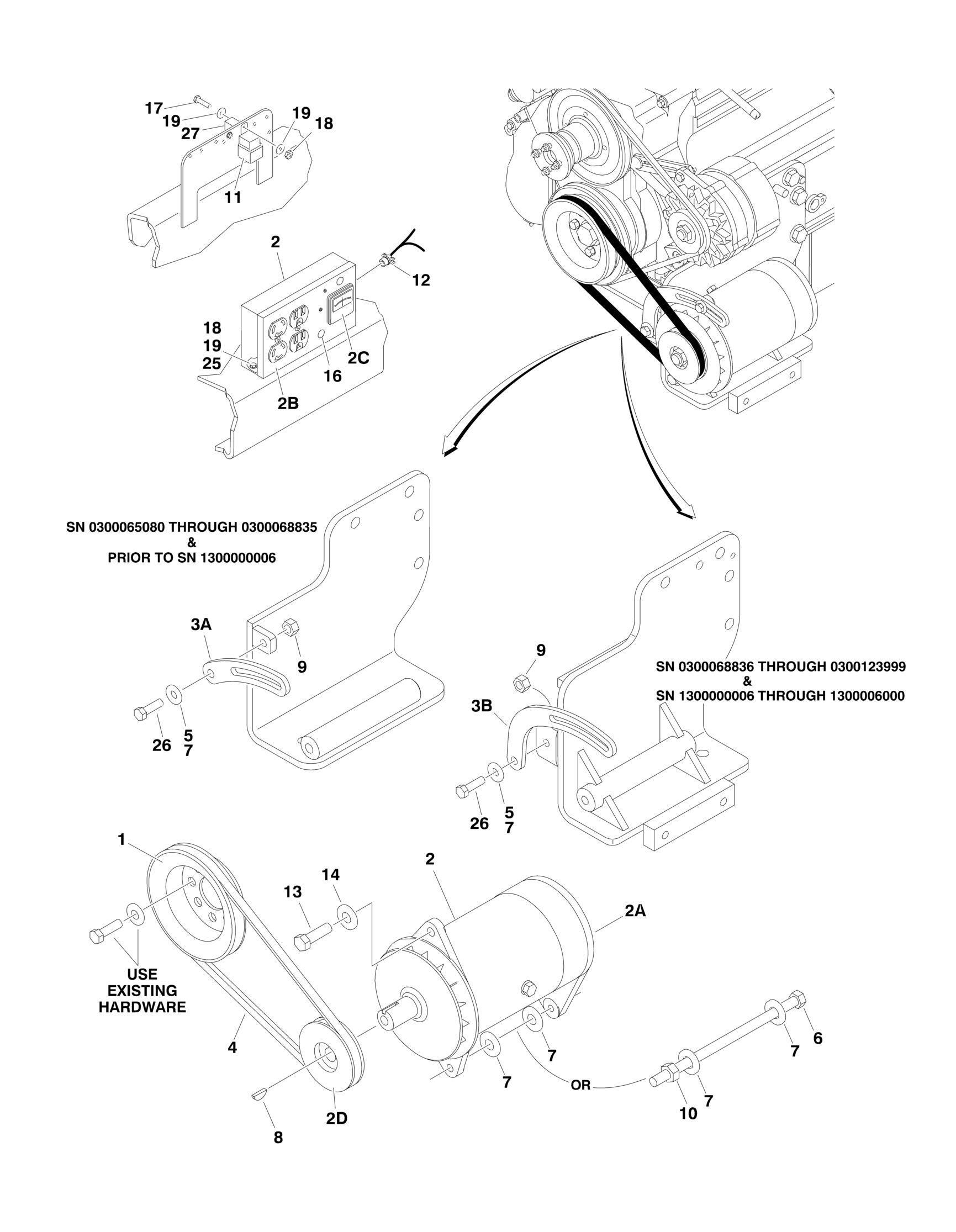

FIGURE 2-31. 2500W GENERATOR INSTALLATION - DEUTZ ENGINES (USA AND BELGIUM BUILT MACHINES) OPTIONAL
ITEM PART NUMBER QTY DESCRIPTION REV
Ref GENERATOR INSTALLATION OPTIONS: Ref 110V/60Hz USA Built Machines 0271593 Ref 110V/60Hz USA Built Machine (SN 0300065080 through
0300077520)
0272614 Ref 110V/60Hz USA Built Machine (SN 0300077521 through
0300082708)
0274079 Ref 110V/60Hz USA Built Machine (SN 0300082709 through
0300123999)
1-A
3-B
2-B
Ref 110V/60Hz Belgium Built Machines 0271593 Ref 110V/60Hz Belgium Built Machine (Prior to SN 1300000316) 1-A 0272614 Ref 110V/60Hz Belgium Built Machines (SN 1300000316 through
1300000730)
3-B 0274079 Ref 110V/60Hz Belgium Built Machines (SN 1300000731 through
1300006000)
2-B Ref 110V/50Hz USA Built Machines 0272162 Ref 110V/50Hz USA Built Machine (SN 0300065080 through
0300077520)
1-A 0272616 Ref 110V/50Hz USA Built Machine (SN 0300077521 through
0300082708)
2-B 0274089 Ref 110V/50Hz USA Built Machine (SN 0300082709 through
0300123999)
2-B Ref 110V/50Hz Belgium Built Machines 0272162 Ref 110V/50Hz Belgium Built Machine (Prior to SN 1300000316) 1-A 0272616 Ref 110V/50Hz Belgium Built Machine (SN 1300000316 through
1300000730)
2-B 0274089 Ref 110V/50Hz Belgium Built Machine (SN 1300000731 through
1300006000)
2-B Ref 220V USA Built Machines 0271594 Ref 220V USA Built Machine (SN 0300065080 through
0300068835)
2-A 0272615 Ref 220V USA Built Machine (SN 0300068836 through
0300082708)
1-A 0274085 Ref 220V USA Built Machine (SN 0300082709 through
0300123999)
2-B Ref 220V Belgium Built Machines 0271594 Ref 220V Belgium Built Machine (Prior to SN 1300000316) 2-A 0272615 Ref 220V Belgium Built Machine (SN 1300000316 through
1300000730)
1-A 0274085 Ref 220V Belgium Built Machine (SN 1300000731 through
1300006000)
2-B 1 3580158 1 Pulley 2 Ref Generator and Control Box Assembly Options: 2 Ref USA Built Machines: 2 2460032 1 110V/60Hz Assembly (SN 0300065080 through 0300082708) 2 2460055 1 110V/60Hz Assembly (SN 0300082709 through 0300123999) 2 2460039 1 110V/50Hz Assembly (SN 0300065080 through 0300082708) 2 2460057 1 110V/50Hz Assembly (SN 0300082709 through 0300123999) 2 2460034 1 220/50Hz Assembly (SN 0300065080 through 0300066784) 2 2460013 1 220/50Hz Assembly (SN 0300066785 through 0300082708) 2 2460056 1 220/50Hz Assembly (SN 0300082709 through 0300123999) 2 Ref Belgium Built Machines: 2460032 1 110V/60Hz Assembly (Prior to SN 1300000731)
ITEM PART NUMBER QTY
DESCRIPTION
2460055 1 110V/60Hz Assembly (SN 1300000731 through 1300006000) 2460039 1 110V/50Hz Assembly (Prior to SN 1300000731) 2460057 1 110V/50Hz Assembly (SN 1300000731 through 1300006000) 2460013 1 220/50Hz Assembly (Prior to SN 1300000731) 2460056 1 220/50Hz Assembly (SN 1300000731 through 1300006000) 2A Ref Generator Options: 2A 7012558 1 110V/60Hz Generator 2A 2460049 1 110V/50Hz Generator 2A 1001100321 1 220V/50Hz Generator Ref Note: All Replacement Generators come standard with
P/N 3580134 Pulley. This Pulley may not be correct for all applications. Refer to Pulley options below.
2A 7026199 1 110V/60Hz Armature with Slip Rings 2A 70000122 1 110V/50Hz Armature with Slip Rings 2A 70000123 1 220V/50Hz Armature with Slip Rings 2A 7020109 4 Holder, Brush 2A 7020108 4 Brush 2A 7012513 4 Cap, Brush Holder 2A 7012514 1 Fan 2A 7020190 2 Bearing 2A 7020110 1 End Bell, Front 2A 7020111 1 End Bell, Rear 2A 7020193 1 Cord, Power 2B Ref Control Box Options: 2B Ref Control Box (110V/60Hz) 2B 7003657 1 USA Built Machines (SN 0300065080 through
0300082708)
2B 7003657 1 Belgium Built Machines (Prior to SN 1300000731) 2B 7019680 1 USA Built Machines (SN 0300082709 through
0300123999)
2B 7019680 1 Belgium Built Machines (SN 1300000731 through
1300006000)
2B Ref Control Box (110V/50Hz) 2B 70002239 1 USA Built Machines (SN 0300065080 through
0300082708)
2B 70002239 1 Belgium Built Machines (Prior to SN 1300000731) 2B 7019680 1 USA Built Machines (SN 0300082709 through
0300123999)
2B 7019680 1 Belgium Built Machines (SN 1300000731 through
1300006000)
2B Ref Control Box (220V/50Hz) 2B 70002235 1 USA Built Machines (SN 0300065080 through
0300082708)
2B 70002235 1 Belgium Built Machines (Prior to SN 1300000731) 2B 70000127 1 USA Built Machines (SN 0300082709 through
0300123999)
2B 70000127 1 Belgium Built Machines (SN 1300000731 through
1300006000)
2B Ref Circuit Breaker Options:
2B 4360542 1 2B 70002240 1
2B 70002240 1 Circuit Breaker (110V/60Hz) USA Built Machines (110V/50Hz) (SN 0300065080
through 0300082708)
Belgium Built Machines (110V/50Hz) (Prior to SN
1300000731) REV
ITEM PART NUMBER QTY DESCRIPTION
2B 4360542 1
2B 4360542 1
2B 70000126 1 2B 4460190 AR 2B 4460027 AR 2B 70000124 1 2B 70000125 1 2B 2920162 1
2B 2920162 1
2B 7020191 1
USA Built Machines (110V/50Hz) (SN 0300082709
through 0300123999)
Belgium Built Machines (110V/50Hz) (SN 1300000731
through 1300006000)
Circuit Breaker (220V/50Hz) Receptacle, Double (110V Box) Receptacle, Double Twist Lock (110V Box) Receptacle, Double (220V Box) Receptacle, Single Twist Lock (220V Box) Lamp Assembly (USA Built Machines) (SN 0300065080
through 0300082709)
Lamp Assembly (Belgium Built Machines) (Prior to SN
1300000731)
Switch, Toggle (USA Built Machines) (SN 0300065080
through 0300082709)
2B 7020191 1 Switch, Toggle (Belgium Built Machines) (Prior to SN
1300000731)
2B 3520028 1 Plug, Hole 2C Ref Voltmeter Options: 2C 2420203 1 Voltmeter (110V) 2C 7020192 1 Voltmeter (220V) 2D Ref Pulley Options: 2D 3580276 1 Pulley (110V/60Hz) 2D 3580134 1 Pulley (110V/50Hz) 2D 3580276 1 USA Built Machines (220V/50Hz) (SN 0300065080 through
0300066784)
2D 3580134 1 USA Built Machines (220V/50Hz) (SN 0300066785 through
0300123999)
2D 3580134 1 Belgium Built Machines (220V/50Hz) 2D 7027887 1 Key, Woodruff 3 Ref Arm, Adjusting Options: 3A 0200741 1 USA Built Machines (SN 0300065080 through 0300068835) 3A 0200741 1 Belgium Built Machines (Prior to SN 1300000006) 3B 0200742 1 USA Built Machines (SN 0300068836 through 0300123999) 3B 0200742 1 Belgium Built Machines (SN 1300000006 through
1300006000)
4 Ref V-Belt Options: 4 0480120 1 USA Built Machines (110V/60Hz) (SN 0300065080 through
0300077520)
4 0480120 1 Belgium Built Machines (110V/60Hz) (Prior to SN 1300000316) 4 0480122 1 USA Built Machines (110V/60Hz) (SN 0300077521 through
0300123999)
4 0480122 1 Belgium Built Machines (110V/60Hz) (SN 1300000316 through
1300006000)
0480120 1 V-Belt (110V/50Hz) 4 0480118 1 USA Built Machines (220V) (SN 0300065080 through
0300066785)
4 0480118 1 Belgium Built Machines (220V) (Prior to SN 1300000006) 4 0480120 1 220V (USA Built Machines) (SN 0300038836 through
0300123999)
4 0480120 1 220V (Belgium Built Machines) (SN 1300000006 through
1300006000)
5 0100011 AR Compound, Locking 6 0641772 1 Bolt 7/16in-14NC x 9in 7 4751600 6 Flatwasher 3/8in Regular
REV
ITEM PART NUMBER QTY DESCRIPTION
8 2860012 1 Key, Woodruff 9 3311605 1 Locknut 3/8in-16NC 10 3311705 1 Locknut 7/16in-14NC 11 3740080 1 Relay 12 4460023 1 Connector, Strain Relief (USA Built Machines) (SN 0300065080
through 0300082709)
12 4460023 1 Connector, Strain Relief (Belgium Built Machines) (Prior to SN
1300000731)
13 0641508 1 Bolt 5/16in-18NC x 1in 14 4751500 1 Flatwasher 5/16in Regular 16 3520028 1 Plug, Hole (USA Built Machines) (SN 0300065080 through
0300082709)
16 3520028 1 Plug, Hole (Belgium Built Machines) (Prior to SN 1300000731) 17 0721006 1 Bolt #10-24NC x 3/4in 18 3311005 3 Locknut #10-24NC 19 4751000 8 Flatwasher #10 Regular 20 4360336 1 Switch, Toggle (Not Shown - Located at Platform) 21 4740397 1 Washer (Not Shown - Located at Platform) 22 4060802 1 Guard, Switch (Not Shown - Located at Platform) 23 2820031 AR Heat Shrink (Not Shown - Located at Platform) 24 3251102 1 Decal (Not Shown - Located at Platform) 25 0721008 2 Bolt #10-24NC x 1in and SN 1300000731 (SN 0300065080
through 0300082709)
26 0641610 1 Bolt 3/8in-16NC x 1-1/4in 27 Ref Breaker, Circuit - 30 Amp Options: 27 Not Required 0 USA Built Machines (SN 0300065080 through 0300068835) 27 Not Required 0 Belgium Built Machines (Prior to SN 1300000006) 27 4360294 1 USA Built Machines (SN 0300068836 through 0300082708) 27 4360294 1 Belgium Built Machines (SN 1300000006 through
1300000730)
27 Not Required 0 USA Built Machines (SN 0300082709 through 0300123999) 27 Not Required 0 Belgium Built Machines (SN 1300000731 through
