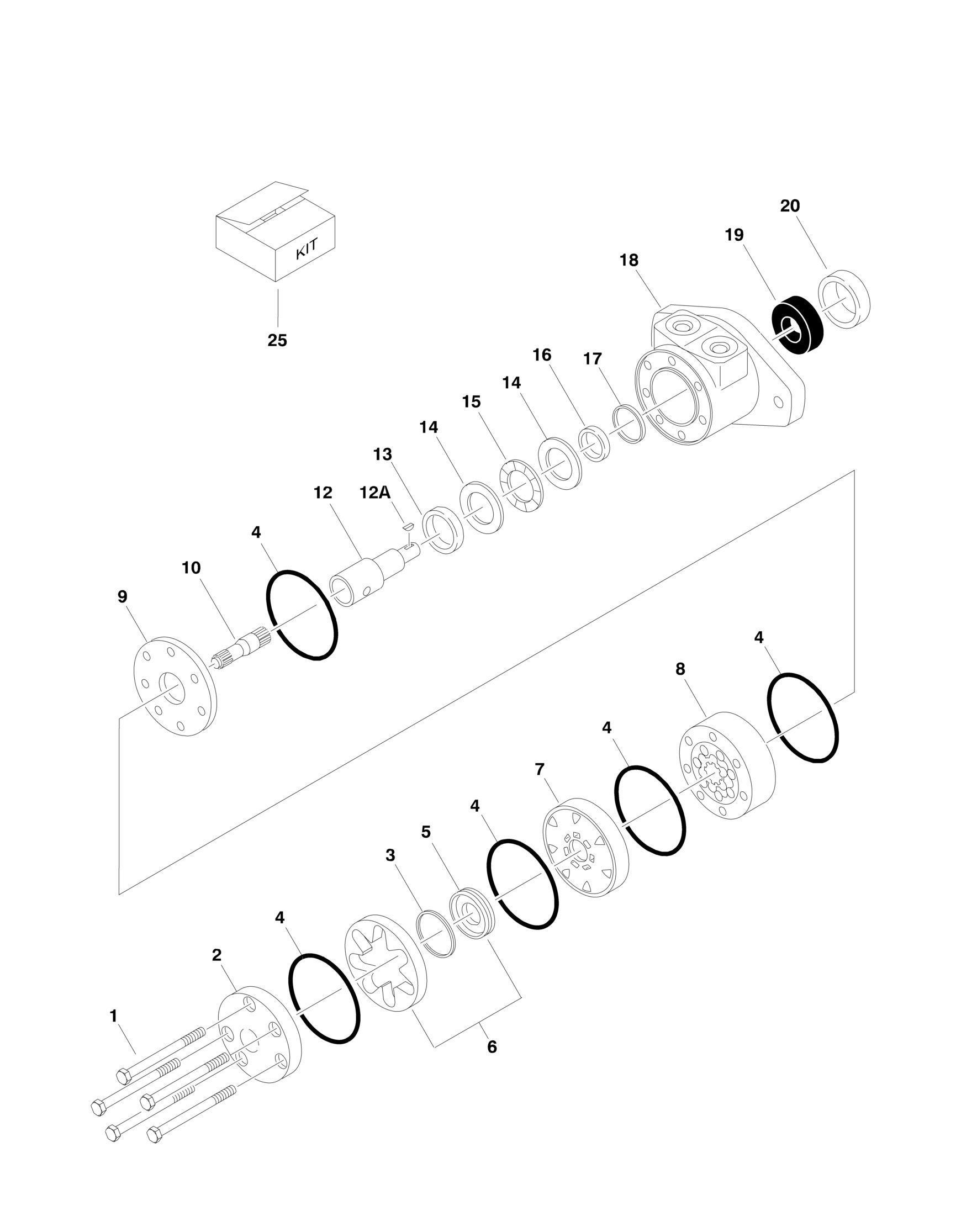

FIGURE 2-5. SWING MOTOR ASSEMBLY (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001105455 Ref SWING MOTOR ASSEMBLY Ref Note: Original Equipment motor p/n 3120287 may have been
replaced with Service Replacement motor p/n 1001105455. Visually identify motor before ordering parts.
1 See Note 5 Bolt (Note: Not available for purchase) 2 7004035 1 Cover, End 3 7023318 1 Seal, Commutator 4 7004036 5 O-Ring 5 7024453 1 Commutator 6 7024453 1 Commutator and Ring Assembly (Includes Items 5) 7 7024379 1 Manifold 8 70002206 1 Rotor Set 9 7024380 1 Plate, Wear 10 70002207 1 Link, Drive 12 70000088 1 Shaft, Coupling 12A 70000089 1 Key 13 7024381 1 Bushing, Inner 14 7004043 1 Thrustwasher 15 7004044 1 Bearing, Thrust 16 7004049 1 Seal, Inner Shaft 17 7004045 1 Ring, Backup 18 See Note 1 Housing (Note: Not Available - Purchase Complete Motor) 19 7024390 1 Bearing 20 7004047 1 Seal, Outer Shaft 25 7024389 1 Seal Kit (Includes Items 3, 4, 16, 17 & 20)
REV
A
