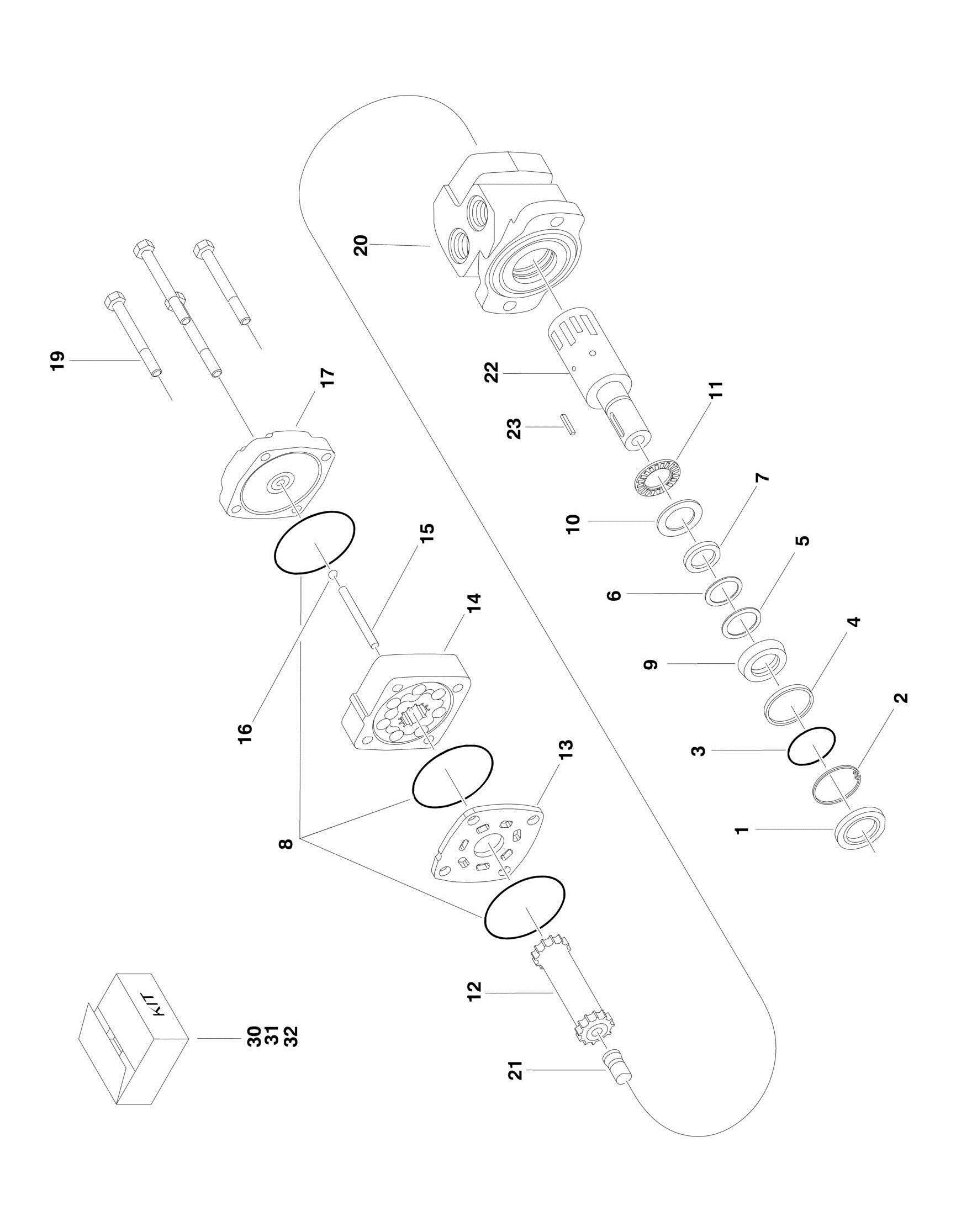

FIGURE 2-4. SWING MOTOR ASSEMBLY (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY DESCRIPTION REV
Ref SWING MOTOR ASSEMBLY 3160278 Ref USA Built Machines (SN 0300065080 through 0300069336) A 3160287 Ref USA Built Machines (SN 0300069337 through 0300123999) A 3160287 Ref Belgium Built Machines (SN 1300000001 through 1300006000) A Ref Note: Original Equipment motor p/n 3160287 may have been
replaced with Service Replacement motor p/n 1001105455. Visually identify motor before ordering parts. Service Replacement motor shown on next figure.
1 7005881 1 Seal, Dust 2 7005881 1 Ring, Retaining 3 7005881 1 Shim, Metal Back-Up 4 7005881 1 Seal, High Pressure 5 7005881 1 Shim, Metal Back-Up 6 7005881 1 Shim, Teflon Back-Up 7 7005881 1 Seal, Shaft 8 7005881 3 Seal, Body 9 7005882 1 Washer, Carrier 10 7005882 1 Thrustwasher 11 Ref Bearing, Thrust 11 7016422 1 USA Built Machines (SN 0300065080 through 0300069336) 11 3160287 1 USA Built Machines (SN 0300069337 through 0300123999) 11 3160287 1 Belgium Built Machines (SN 1300000001 through
1300006000)
12 Ref Link, Drive 12 7016429 1 USA Built Machines (SN 0300065080 through 0300069336) 12 7005889 1 USA Built Machines (SN 0300069337 through 0300123999) 12 7005889 1 Belgium Built Machines (SN 1300000001 through
1300006000)
13 Ref Plate, Wear 13 7016423 1 USA Built Machines (SN 0300065080 through 0300069336) 13 3160287 1 USA Built Machines (SN 0300069337 through 0300123999) 13 3160287 1 Belgium Built Machines (SN 1300000001 through
1300006000)
14 Ref Rotor Set Assembly 14 7016428 1 USA Built Machines (SN 0300065080 through 0300069336) 14 7016432 1 USA Built Machines (SN 0300069337 through 0300123999) 14 7016432 1 Belgium Built Machines (SN 1300000001 through
1300006000)
15 Ref Pin, Drive Link 15 7005891 1 USA Built Machines (SN 0300065080 through 0300069336) 15 7016433 1 USA Built Machines (SN 0300069337 through 0300123999) 15 7016433 1 Belgium Built Machines (SN 1300000001 through
1300006000)
16 See Note 1 Ball (Note: Not available for purchase) 17 Ref Cover, End 17 7016424 1 USA Built Machines (SN 0300065080 through 0300069336) 17 3160287 1 USA Built Machines (SN 0300069337 through 0300123999) 17 3160287 1 Belgium Built Machines (SN 1300000001 through
1300006000)
18 See Note 1 Nameplate (Note: Not available for purchase) 19 Ref Bolt Set (Includes 4 Bolts) 19 7016430 1 USA Built Machines (SN 0300065080 through 0300069336)
ITEM PART NUMBER QTY
DESCRIPTION
19 7016434 1 USA Built Machines (SN 0300069337 through 0300123999) 19 7016434 1 Belgium Built Machines (SN 1300000001 through
1300006000)
20 See Note 1 Housing (Note: Use Item 32) 21 See Note 1 Plug, Cooling (Note: Use Item 32) 22 7005843 1 Shaft 23 7005887 1 Key 30 7005881 1 Seal Kit (Includes Items 1-8) 31 7005882 1 Washer Kit (Includes Items 9 & 10) 32 Ref Housing/Shaft Kit Options (Includes Items 20-23): 32 7016431 1 USA Built Machines (SN 0300065080 through 0300069336) 32 7016435 1 USA Built Machines (SN 0300069337 through 0300123999) 32 7016435 1 Belgium Built Machines (SN 1300000001 through
