FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS
FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS
FIGURE 1-4. TIRE AND WHEEL DRIVE INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref WHEEL DRIVE INSTALLATION (2WD) 0270870 Ref Caterpillar/Deutz/ Ford Engine Machines (SN 0300065080
through 0300071526)
E
0272907 Ref Caterpillar/Deutz/ Ford Engine Machines (SN 0300071527
through 0300100513)
0275470 Ref Caterpillar/Deutz/ Ford Engine Machines (SN 0300100514
through 0300107511)
C
D
0275470 Ref GM Engine Machines (SN 0300065080 through 0300107511) D 0275853 Ref Caterpillar/Deutz/ Ford/GM/Perkins Engine Machines (SN
0300107512 through 0300123999)
B Ref Note: USA Manufacture Only. 1 0100011 AR Compound, Locking 1 0100019 AR Compound, Locking 4 Ref Bolt 3/8in-16NC x 7/8in 4 0641607 2 Hex HD Capscrew Gr5, 3/8-16 X 7/8 Lg (SN 0300065080
through 0300069840)
4 See Note 2 Hex HD Capscrew Gr5, 3/8-16 X 7/8 Lg (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through
0300123999)
5 Ref Hardware Options: 5 0681810 4 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (SN 0300065080 through
0300071526)
5 3311801 4 Nut 1/2in-13NC (Not Shown) (SN 0300071527 through
0300123999)
6 0682014 12 Bolt 5/8in-11NC x 1-3/4in (Grade 8) 7 Ref Drive Hub/Brake Assembly Options: 7 2780256 NLA Drive Hub/Brake Assembly (See DRIVEHUB/BRAKE ASSEMBLY(REAR) For Breakdown) (Use p/n 1001178138)
(SN 0300065080 through 0300071526)
7 2780267 2 Drive Hub/Brake Assembly (See DRIVE HUB/BRAKE ASSEMBLY (REAR) for Breakdown) (SN 0300071527 through
0300123999)
8 Ref DRIVE MOTOR ASSEMBLY OPTIONS: 8 3160158 2 Caterpillar/Deutz/Ford Engine Machines (See DRIVE MOTOR ASSEMBLY (2WD) for Breakdown) (SN 0300065080 through
0300100513)
8 3160351 2 Caterpillar/Deutz/Ford Engine Machines (See DRIVE MOTOR ASSEMBLY (2WD) For Breakdown) (SN 0300100514 through
0300123999)
8 3160298 2 GM Engine Machines (See DRIVE MOTOR ASSEMBLY (2WD) for Breakdown) (SN 0300065080 through 0300099084) 8 3160351 2 GM Engine Machines (See DRIVE MOTOR ASSEMBLY (2WD) for Breakdown) (SN 0300099085 through 0300123999) 9 3300106 18 Lugnut 11 3790045 2 O-Ring (SN 0300065080 through 0300075079) 12 Ref Shield, Frame Options: 12 4061021 1 Shield, Frame Cover Rear (SN 0300065080 through
0300077284)
12 See Note 1 Shield, Frame Cover Rear (See FRAME SHIELDS INSTALLATION for call out) (SN 0300077285 through
0300123999)
17 4751600 2 Flatwasher 3/8in Regular 18 4891800 4 Flatwasher 1/2in Hardened 19 4892000 12 Flatwasher 5/8in Hardened
ITEM PART NUMBER QTY
DESCRIPTION
Ref WHEEL DRIVE INSTALLATIONS (4WD) 0270871 Ref Wheel Drive (USA Built Machines) (SN 0300065080 through
0300069154)
0272320 Ref Wheel Drive (USA Built Machines) (SN 0300069155 through
0300071526)
0272895 Ref Wheel Drive (USA Built Machines) (SN 0300071527 through
0300107511)
0275854 Ref Wheel Drive (USA Built Machines) (SN 0300107512 through
0300123999)
0272320 1 Wheel Drive (Belgium built machines) (SN 1300000001
through 1300000161)
0272895 Ref Wheel Drive (Belgium Built Machines) (SN 1300000162
through 1300003221)
0275854 Ref Wheel Drive (Belgium Built machines) (SN 1300003222
through 1300006000)
101 0100011 AR Compound, Locking 102 0100019 AR Compound, Locking 108 Ref Bolt Options: 108 0641607 2 Bolt (USA Built Machines) (SN 0300065080 through
0300069840)
108 See Note 2 Bolt (USA Built Machines) (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through
0300123999)
108 See Note 2 Bolt (Built Machines) (See FRAME SHIELDS INSTALLATION for call out)
109
Ref Hardware Options: 109 Ref USA Built Machines: 109 0681810 8 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (SN 0300065080 through
0300071526)
109 0681810 4 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (Front Axle) (SN
0300071527 through 0300123999)
109 3311801 4 Nut 1/2in-13NC (Not Shown) (Rear Axle) (SN 0300071527
through 0300123999)
109 Ref Belgium Built Machines: 109 0681810 4 Bolt 1/2in-13NC x 1-1/4in (Grade 8) (Front Axle) (SN
1300000001 through 1300006000)
109 3311801 4 Nut 1/2in-13NC (Not Shown) (Rear Axle) (SN 1300000001
through 1300006000)
110 0682014 24 Bolt 5/8in-11NC x 1-3/4in (Grade 8) 111 Ref Drive Hub/Brake Assembly (Rear) Options: 111 2780256 NLA Drive Hub/Brake (USA Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(REAR) for Breakdown) (Use p/n 1001178138) (SN 0300065080 through 0300071526) 111 2780267 2 Drive Hub/Brake (USA Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(REAR) for Breakdown) (SN
0300071527 through 0300123999)
111 2780256 NLA Drive Hub/Brake (Belgium Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(REAR) for Breakdown) (Use p/n 1001178138) (SN 1300000001 through 1300000161) 111 2780267 1 Drive Hub/Brake Assembly (Belgium Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(REAR) for Breakdown) (SN
1300000162 through 1300006000)
112 Ref Drive Hub Assembly (Front - Not Shown) Options: 112 2780257 NLA Drive Hub Assembly (USA Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(FRONT) (4WD ONLY) for Breakdown) (Use p/n 1001178136) (SN 0300065080 through
0300071526) REV
F
C
G
B
C
G
B
ITEM PART NUMBER QTY DESCRIPTION REV
112 2780268 2 Drive Hub Assembly (USA Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(FRONT) (4WD ONLY) for Breakdown) (SN 0300071527 through 0300123999) 112 2780257 NLA Drive Hub Assembly (Belgium Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(FRONT) (4WD ONLY) for Breakdown) (Use p/n 1001178136) (SN 1300000001 through
1300000161)
112 2780268 1 Drive Hub Assembly (Belgium Built Machines) (See DRIVE HUB/BRAKE ASSEMBLY(FRONT) (4WD ONLY) for Breakdown) (SN 1300000162 through 1300006000) 113 Ref DRIVE MOTOR ASSEMBLY OPTIONS: 113 3160260 4 Drive Motor Assembly (USA Built Machines) (See DRIVE MOTOR ASSEMBLY (4WD) for Breakdown) (SN 0300065080
through 0300069154)
113 3160266 4 Drive Motor Assembly (USA Built Machines) (See DRIVE MOTOR ASSEMBLY (4WD) for Breakdown) (SN 0300069155
through 0300098502)
113 3160348 4 Drive Motor Assembly (USA Built Machines) (See DRIVE MOTOR ASSEMBLY (4WD) for Breakdown) (SN 0300098503
through 0300123999)
113 3160266 4 Drive Motor Assembly (Belgium Built Machines) (See DRIVE MOTOR ASSEMBLY (4WD) for Breakdown) (Prior to SN
1300002248)
113 3160348 4 Drive Motor Assembly (Belgium Built Machines) (See DRIVE MOTOR ASSEMBLY (4WD) for Breakdown) (SN 1300002248
through 1300006000)
114 3300106 36 Lugnut 118 Ref Seal Options: 118A 3790045 2 O-Ring (USA Built Machines) (SN 0300065080 through
0300103381)
118A 3790045 2 O-Ring (Belgium Built Machines) (Prior to SN 1300003636) 118B 3960526 4 Gasket (USA Built Machines) (SN 0300103382 through
0300123999)
118B 3960526 4 Gasket (Belgium Built Machines) (SN 1300003637 through
1300006000)
120 Ref Shield, Frame 120 4061021 1 Shield, Frame (USA Built Machines) (SN 0300065080 through
0300069840)
120 See Note 1 Shield, Frame (USA Built Machines) (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through
0300123999)
120 See Note 1 Shield, Frame (Belgium Built Machines) (See FRAME SHIELDS INSTALLATION for call out) 126 4751600 6 Flatwasher 3/8in Regular 127 4891800 8 Flatwasher 1/2in Hardened 128 4892000 24 Flatwasher 5/8in Hardened 131 2300016 AR Fluid, Hydraulic (Not Shown) 132 3020008 AR Lubricant, Mobilube HD 80W - 90 (Not Shown) Ref TIRE AND WHEEL INSTALLATIONS 0258028 Ref 12 x 16.5 Pneumatic (Available on ANSI, ANSI Export AND
Japanese Specs)
0272299 Ref 12 x 16.5 Pneumatic TS (Available on ANSI Specs) 0258030 Ref 12 x 16.5 Foam-Filled (Available on all Specs) 0270671 Ref 12 x 16.5 Pneumatic Non-Marking (Available on ANSI, ANSI
Export and Japanese Specs)
A
1 A B
0270674 Ref 12 x 16.5 Foam-Filled Non-Marking (Available on All Specs) B 0258029 Ref 33/1550 x 16.5 Pneumatic (Available on ANSI, ANSI Export B
ITEM PART NUMBER QTY DESCRIPTION REV
AND Japanese Specs)
0272300 Ref 33/1550 x 16.5 Pneumatic TS (Available on ANSI Specs) 1 0258031 Ref 33/1550 x 16.5 Foam-Filled (Available on All Specs) B 0258831 Ref 33/16LL x 16.1 Pneumatic (Available on ANSI, ANSI Export
and Japanese Specs) (Requires special counterweighting)
A 0259129 Ref 33/16LL x 16.1 Foam-Filled (Available on All Specs) (Requires
special counterweighting)
A 0257740 2 12 x 16.5 Pneumatic Right Side C 0272357 2 12 x 16.5 Pneumatic TS Right Side A 0257746 2 12 x 16.5 Pneumatic Left Side C 0272356 2 12 x 16.5 Pneumatic TS Left Side A 0258009 2 12 x 16.5 Foam-Filled Right Side C 0258010 2 12 x 16.5 Foam-Filled Left Side C 0270672 2 12 x 16.5 Pneumatic Non-Marking Right Side A 0270673 2 12 x 16.5 Pneumatic Non-Marking Left Side A 0270675 2 12 x 16.5 Foam-Filled Non-Marking Right Side A 0270676 2 12 x 16.5 Foam-Filled Non-Marking Left Side A 0257755 2 33/1550 x 16.5 Pneumatic Right Side C 0272360 2 33/1550 x 16.5 Pneumatic TS Right Side A 0257756 2 33/1550 x 16.5 Pneumatic Left Side C 0272361 2 33/1550 x 16.5 Pneumatic TS Left Side A 0258011 2 33/1550 x 16.5 Foam-Filled Right Side D 0258012 2 33/1550 x 16.5 Foam-Filled Left Side D 0258830 4 33/16LL x 16.1 Pneumatic (Requires special counterweighting) 0259128 4 33/16LL x 16.1 Foam-Filled (Requires special counterweighting) Ref Note: Assemblies may require ballast/foam filling to
manufacture's specifications prior to installing on a machine. Refer to Operation and Safety or Service and Maintenance Manuals. Purchase individual tire and/or rim only if able to foam fill tire and wheel assembly, otherwise, purchase complete assembly.
201 Ref Decal Options (Pneumatic Only): 201 1702740 1 Decal - 90PSI 201 1703067 1 Decal - 40PSI 202 Ref Tire Options: 202 4520216 1 Tire, 12 x 16.5 NHS (OTR Brand) 202 4520240 1 Tire, 12 x 16.5 Non-Marking 202 4520217 1 Tire, 33/1550 x 16.5 NHS (OTR Brand) 202 4520212 1 Tire, 33/16LL x 16.1 203 Ref Valve Stem Options:, Air (Pneumatic Only) 203 4640113 1 Valve Stem (All except 33/1550 x 16.5 Foam-Filled Tire and Wheel Assy) 203 8786514 1 Valve Stem (33/1550 x 16.5 Foam-Filled Tire and Wheel Assy Only) 204 Ref Rim, Wheel Options: 204 4860178 1 Rim, Wheel, 16.5 x 12 (Use with 12 x 16.5 Tires) 204 4860179 1 Rim, Wheel, 16.5 x 12 (Use with 33/1550 x 16.5 Tires) 204 4860193 1 Rim, Wheel, 16.1 x 14 (Use with 33/16LL x 16.1 Tires) 205 1120552 1 Cap, Valve Stem (TS Tire Only) 206 1705364 1 Decal - Tire Sealant (TS Tire Only)
ITEM PART NUMBER QTY DESCRIPTION
Ref USAGE CHART: Ref Use this figure only for: Ref Machines with and Machines. (SN 0300065080 through
0300069841, SN 1300000001 through 1300006000)
Ref For Machines refer to Axle Installation (Front Shield) or Wheel
Drive Installation (Rear Shield). (SN 0300065080 through 0300069841)

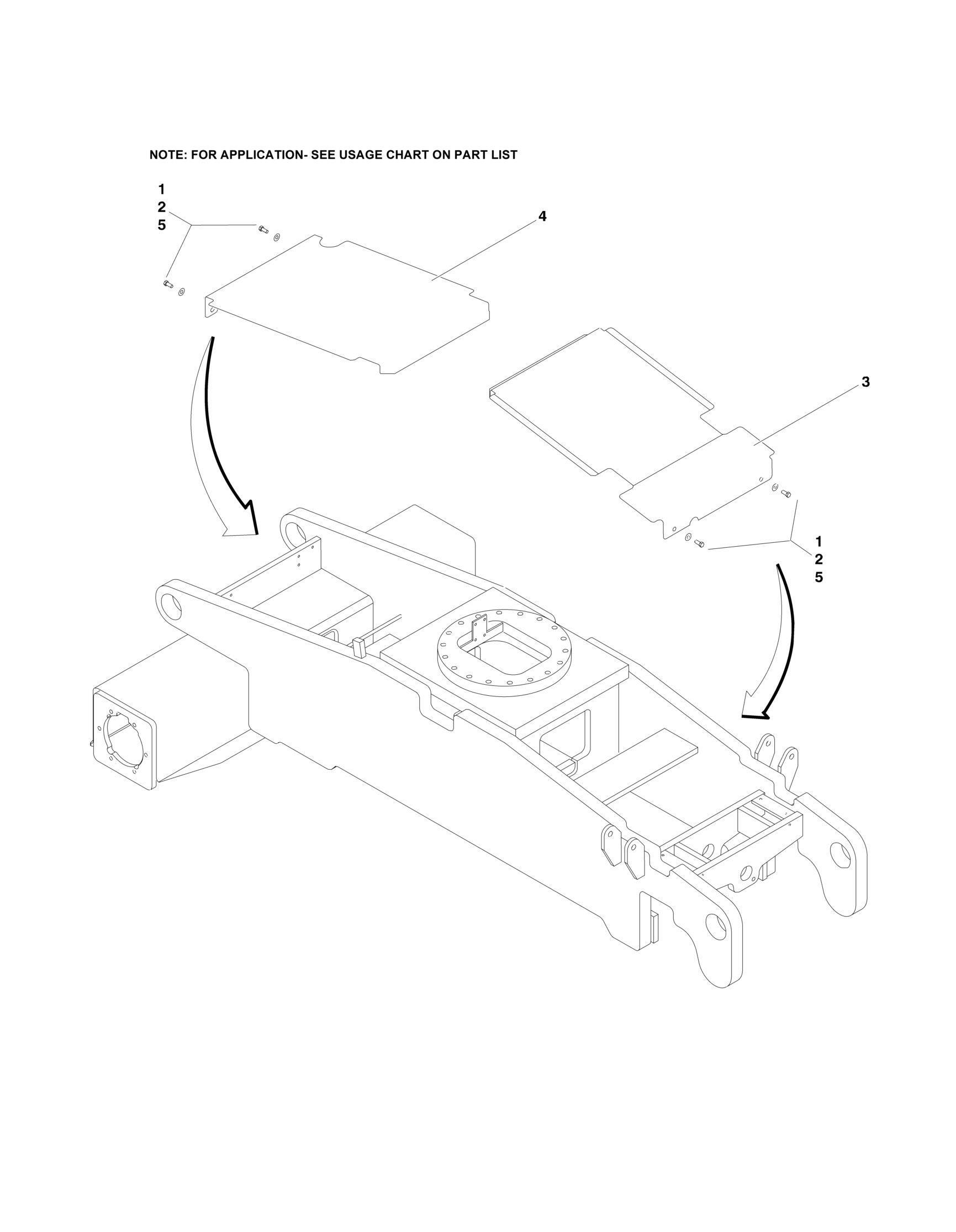

Ref FRAME SHIELDS INSTALLATION 0272660 Ref Frame Shields (USA Built Machines) (SN 0300069841 through
0300077284)
0273500 Ref Frame Shields (USA Built Machines) (SN 0300077285 through
0300107511)
0274688 Ref Frame Shields (USA Built Machines) (SN 0300107512 through
0300123999)
0272660 Ref Frame Shields (Belgium Built Machines) (SN 1300000353
through 1300006000)
0273500 Ref Frame Shields (Belgium Built Machines) (SN 1300000353
through 1300003221)
0274688 Ref Frame Shields (Belgium Built Machines) (SN 1300003222
through 1300006000)
1 0100011 AR Compound, Locking 2 0641607 4 Bolt 3/8in-16NC x 7/8in 3 Ref Cover (Front) Options: 3 4061020 1 Cover (Front) (USA Built Machines) (SN 0300069841 through
0300077284)
3 3380505 1 Cover (Front) (USA Built Machines) (SN 0300077285 through
0300107511)
3 3380610 1 Cover (Front) (USA Built Machines) (SN 0300107512 through
0300123999)
3 4061020 1 Cover (Front) (Belgium Built Machines) (Prior to SN
1300000352)
3 3380505 1 Cover (Front) (Belgium Built Machines) (SN 1300000353
through 1300003221)
3 3380610 1 Cover (Front) (Belgium Built Machines) (SN 1300003222
through 1300006000)
4 4061021 1 Shield, Frame Cover Rear 5 4751600 4 Flatwasher 3/8in Regular
REV
B
B
A
B
B
A
