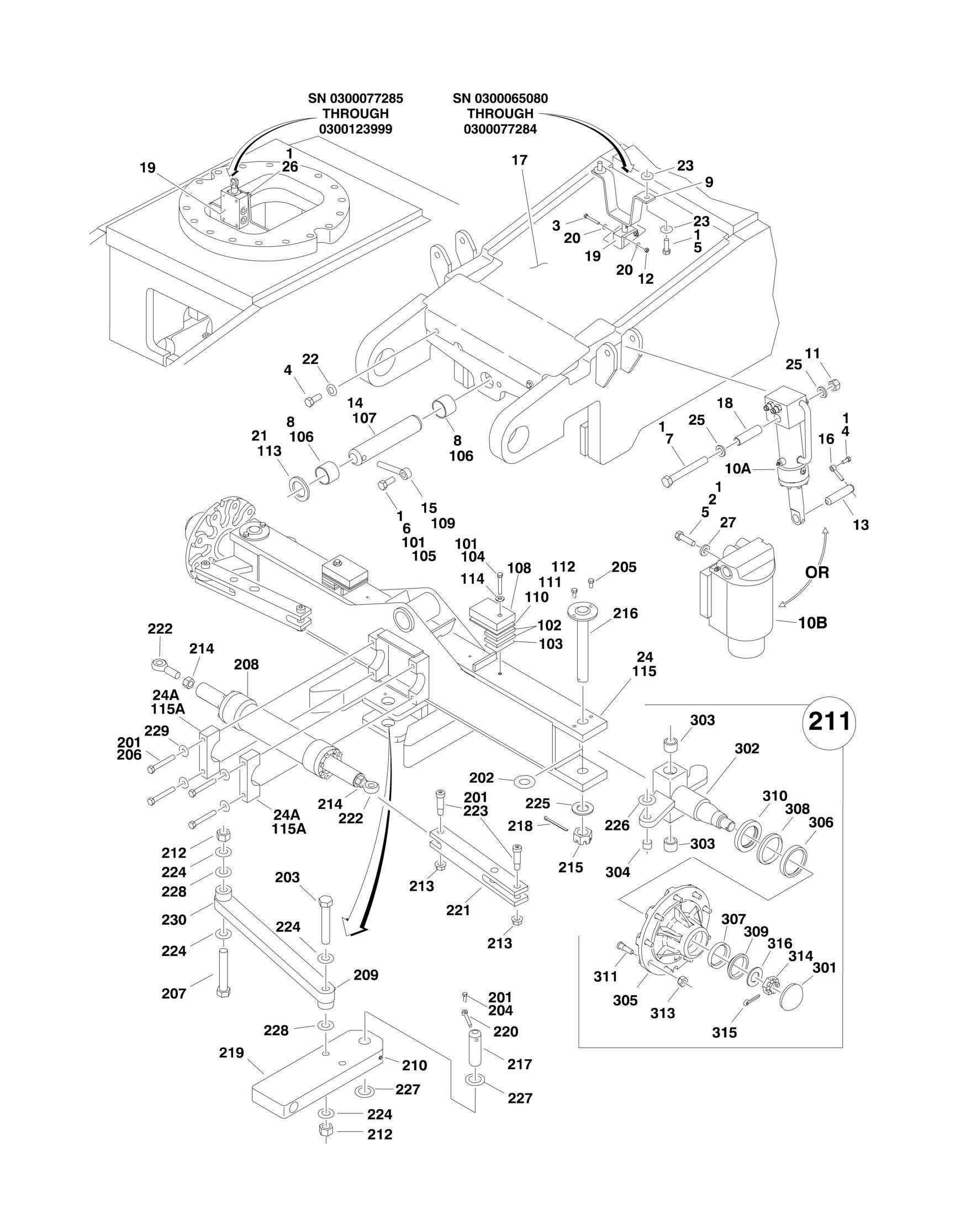

FIGURE 1-2. AXLE AND STEERING INSTALLATION - 2WD WITH TOW BAR
ITEM PART NUMBER QTY
DESCRIPTION
Ref OSCILLATING AXLE INSTALLATIONS 0271656 Ref Install 2wd Axle (Osc) Tow Bar (SN 0300065080 through
0300077284)
0273489 Ref Install, Axle (2wd , Osc , Tow) (SN 0300077285 through
0300107511)
0274705 Ref Install, Axle (Osc) Tow bar 450A/AJ (SN 0300107512 through
0300123999)
Ref Note: USA Manufacture Only. 1 0100011 AR Compound, Locking 1 0100019 AR Compound, Locking 2 0100038 AR Primer, Locking #7471 3 0641416 4 Bolt 1/4in-20NC x 1-3/4in (SN 0300065080 through
0300077284)
4 0641607 2 Bolt 3/8in-16NC x 7/8in (SN 0300065080 through 0300107511) 5 0641814 AR Bolt 1/2inin-13NC x 1-3/4in 6 0642012 1 Bolt 5/8in-11NC x 1-1/2in 7 0682248 2 Bolt 3/4in-10NC x 6in (SN 0300065080 through 0300107511) 8 0961950 2 Bushing, Garmax 9 Ref Cam, Lockout Options: 9 1100127 1 Cam, Lockout (SN 0300065080 through 0300069336) 9 1100133 1 Cam, Lockout (SN 0300069337 through 0300077285) 9 Not Required 1 Cam, Lockout (SN 0300077285 through 0300123999) 10 Ref Lockout Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 10A 1684129 2 Lockout Cylinder Assembly (SN 0300065080 through
0300107511)
10B 1684465 2 Lockout Cylinder Assembly (SN 0300107512 through
0300123999)
11 3272201 2 Nut 3/4in-10NC (SN 0300065080 through 0300107511) 12 3311405 4 Locknut 1/4in-20NC (SN 0300065080 through 0300077284) 13 3422520 2 Pin (SN 0300065080 through 0300107511) 14 3422592 1 Pin, Axle Pivot 15 3841258 2 Keeper, Pin 16 3841520 1 Keeper, Pin (SN 0300065080 through 0300107511) 17 Ref Shield, Frame Options: 17 4061020 1 Shield, Frame (SN 0300065080 through 0300069840) 17 See Note 1 Shield, Frame (See FRAME SHIELDS INSTALLATION for call out) (SN 0300069841 through 0300123999) 18 4567462 2 Tube, Mounting (SN 0300065080 through 0300107511) 19 Ref Lockout Valve Assembly Options: 19 4640871 1 Valve (SN 0300065080 through 0300077284) 19 7012693 1 Seal Kit - 4640871 Valve 19 7002840 1 Anti-Rotation Pin Removal Tool 19 4641265 1 Valve (SN 0300077285 through 0300123999) 20 4711400 8 Flatwasher 1/4in Thin (SN 0300065080 through 0300123999) 21 4740158 1 Thrustwasher 23 4751800 4 Flatwasher 1/2in Regular (SN 0300065080 through
0300077284)
24 Ref Axle Weldment Options: 24 4846426 1 Axle Weldment (SN 0300065080 through 0300107511) 24 0280201 1 Axle Weldment (SN 0300107512 through 0300123999) 24A 0561300 NLA Steer Cylinder Mounting Block Assy (Use p/n 1001100424)
REV
C
C
A
ITEM PART NUMBER QTY
DESCRIPTION
25 4892200 4 Flatwasher 3/4in Hardened 26 0791506 4 Screw, 5/16in-18NC x 3/4in Only (SN 0300077285 through
0300123999)
27 4891800 8 Flatwasher, Hardened 1/2in (SN 0300107512 through
0300123999)
Ref FIXED AXLE INSTALLATION 0273077 Ref Axle, Fixed 2wd (Tow Bar) (SN 0300065080 through
0300107511)
0274706 Ref Install, Axle (Fixed) 450A/AJ (SN 0300107512 through
0300123999)
Ref Note: USA Manufacture Only. 101 0100011 AR Compound, Locking 102 0362763 4 Bar, Stop 103 0362764 2 Bar, Stop 104 0641626 2 Bolt 3/8in-16NC x 3-1/4in 105 0642012 1 Bolt 5/8in-11NC x 1-1/2in 106 0961950 2 Bushing, Garmax 107 3422592 1 Pin, Axle Pivot 108 3570901 2 Plate, Stop 109 3841258 1 Keeper, Pin 110 4070972 AR Shim 3/16in 111 4070973 AR Shim 1/8in 112 4070974 AR Shim 1/16in 113 4740158 1 Thrustwasher 114 4751600 2 Flatwasher 3/8in Regular 115 Ref Axle Weldment Options: 115 4846426 1 Weld, Axle-Steer (SN 0300065080 through 0300107511) 115 0280201 1 Weld, Axle-Steer (SN 0300107512 through 0300123999) 115A 0561300 NLA Steer Cylinder Mounting Block Assy (Use p/n 1001100424) 116 2220235 4 Fitting, O-Ring (Not Shown - See HYDRAULICS SECTION) 0271653 Ref STEERING INSTALLATION Ref Note: USA Manufacture Only. 201 0100011 AR Compound, Locking 202 0440162 2 Thrustwasher 203 0630544 1 Bolt 1in-8NC x 6in 204 0641508 1 Bolt 5/16in-18NC x 1in 205 0641606 4 Bolt 3/8in-16NC x 3/4in 206 0681824 4 Bolt 1/2in-13NC x 3in 207 0682648 1 Bolt 1in-8NC x 6in 208 Ref Steer Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 208 1683614 NLA Cylinder, Steer (Use p/n 1684412) (SN 0300065080 through
0300087391)
208 1684412 1 Cylinder, Steer (SN 0300087392 through 0300123999) 209 2160001 2 Fitting, STR Grease 210 2160002 1 Fitting, STR Grease 211 2780230 2 Hub/Spindle Assembly (See 201-213 for Breakdown) 212 3272605 2 Locknut 1in-8NC 213 3312008 4 Nut 5/8in-11NC 214 3322201 2 Nut 3/4in-16NF 215 3323003 2 Nut 1-1/4in-12NF 216 3422692 2 Kingpin 217 3422848 1 Pin, Hitch
REV
C
A
E
ITEM PART NUMBER QTY DESCRIPTION
218 3450812 2 Pin, Cotter 1/4in x 3in 219 3571975 1 Plate, Tow Bar Pivot 220 3841143 1 Keeper 221 3841458 2 Tie-Rod 222 3841517 2 Rod-End 223 3900109 4 Screw, Shoulder 224 4712600 4 Flatwasher 1in Thin 225 4713000 2 Flatwasher 1-1/4in Thin 226 4740086 2 Thrustwasher 227 4740155 2 Thrustwasher 228 4740491 2 Thrustwasher 229 4751800 4 Flatwasher 1/2in Regular 230 4846162 1 Link 2780230 Ref HUB ASSEMBLY 301 7020033 2 Cap, Dust (1 per Assembly) 302 7020034 2 Spindle Assembly (1 per Assembly) 303 0961951 4 Bushing, Garmax (2 Per Assembly) 304 0962140 2 Bearing, Garmax (1 per Assembly) 305 7020035 2 Hub (1 per Assembly) (Includes 306 & 307) 306 7020036 2 Cup, Bearing - Inner(1 per Assembly) 307 7020038 2 Cup, Bearing - Outer (1 per Assembly) 308 7020037 2 Cone, Bearing - Inner (1 per Assembly) 309 7020039 2 Cone, Bearing - Outer (1 per Assembly) 310 7020040 2 Seal (1 Per Assembly) 311 7020041 18 Stud, Wheel (9 Per Assembly) 313 7020042 18 Lugnut (9 per Assembly) 314 7020054 2 Nut, Castle (1 per Assembly) 315 3450608 2 Pin, Cotter (1 Per Assembly) 316 7020055 2 Washer, Spindle (1 Per Assembly)
REV
A
