FIGURE 1-5. FRAME SHIELDS INSTALLATION (SN 0300069841 through 0300123999, SN 13000000001 through 1300006000) ........................................................................................................................................................................................................ 34 FIGURE 1-6. DRIVE HUB/BRAKE ASSEMBLY (REAR

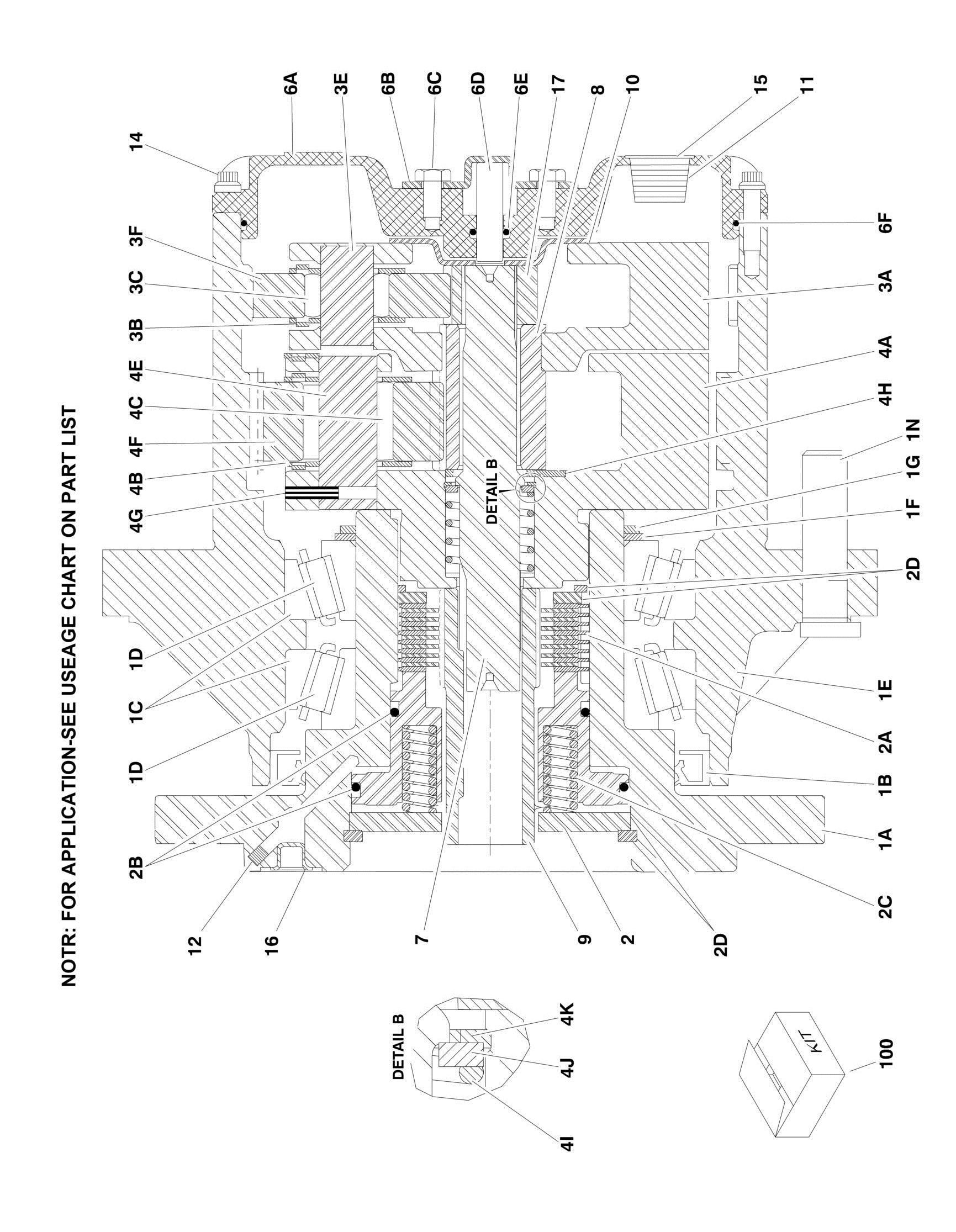

FIGURE 1-6. DRIVE HUB/BRAKE ASSEMBLY (REAR)
FIGURE 1-6. DRIVE HUB/BRAKE ASSEMBLY (REAR)
ITEM PART NUMBER QTY DESCRIPTION
Ref USAGE CHART: Ref Machines (SN 0300065080 through 0300071527, SN
1300000001 through 1300000162)
Ref NOTE: Hub may have been replaced with Service kit p/n
1001178138 (Kit uses hub p/n 2780267). See next figure for service parts.
2780256 Ref DRIVE HUB/BRAKE ASSEMBLY 1 See Note 1 Spindle/Housing Assembly (Note: Not Available - Purchase Individual Components) 1A 7024105 1 Spindle 1B 7024113 1 Seal 1C 7007006 2 Cone, Bearing 1D 7024112 2 Cup, Bearing 1E 7024110 1 Housing/Ring Gear 1F 7024109 1 Thrustwasher 1G 7024107 1 Ring, Retaining 1N 7024111 9 Stud, Wheel 2 7024106 1 Brake, Input 2A 7024710 1 Kit, Brake Lining (Includes Qty 8 Outer Plates and Qty 7 Inner Plates) 2B 7024709 1 Kit, Brake O-Ring (Includes Qty 2 O-Rings and Back-up Rings) 2C 7024711 1 Kit, Brake Spring (Includes Qty 12 Springs) 2D 7024719 1 Kit, Brake Hardware (Includes End Plate, Spacer and Qty 2 EClips) 3 See Note 1 Carrier Assembly (Note: Not Available - Purchase Individual Components) 3A 7024116 1 Carrier 3B 7024127 6 Thrustwasher 3C 7024123 42 Bearing, Needle 3E 7024120 3 Shaft, Planet 3F 7024118 3 Gear, Planet 4 See Note 1 Carrier Assembly (Note: Not Available - Purchase Individual Components) 4A 7024117 1 Carrier 4B 7024126 6 Thrustwasher 4C 7024122 45 Bearing, Needle 4E 7024121 3 Shaft, Planet 4F 7024119 3 Gear, Planet 4G 7001913 3 Rollpin 4H 7024128 1 Thrustwasher 4I 7024124 1 Spring 4J 7024129 1 Thrustwasher 4K 7024125 1 Thrustwasher 6 See Note 1 Cover Assembly (Note: Not Available - Purchase Individual Components) 6A 7024132 1 Plate, Cover 6B 7017093 1 Cap, Disengage 6C 0641404 2 Bolt 1/2in-20NC x 1/2in 6D 7017092 1 Pin, Dowel 6E 7017095 1 O-Ring 6F 7024134 1 O-Ring 7 7024130 1 Shaft, Input
REV
G
ITEM PART NUMBER QTY DESCRIPTION
8 7024115 1 Gear, Sun 9 7024131 1 Coupling 10 7017097 1 Spacer, Thrust 11 7017094 2 Plug, Pipe 12 7024108 1 Plug, Pressure 14 7024133 12 Bolt 1/4in-20NC x 7/8in (Grade 8) 15 See Note 1 Plate, ID (Not Shown) (Note: Not available for purchase) 16 7017082 1 Plug, O-Ring 17 7024114 1 Gear, Sun 100 7024198 1 Seal Kit (Includes Items 1B, 1G & 6F)
