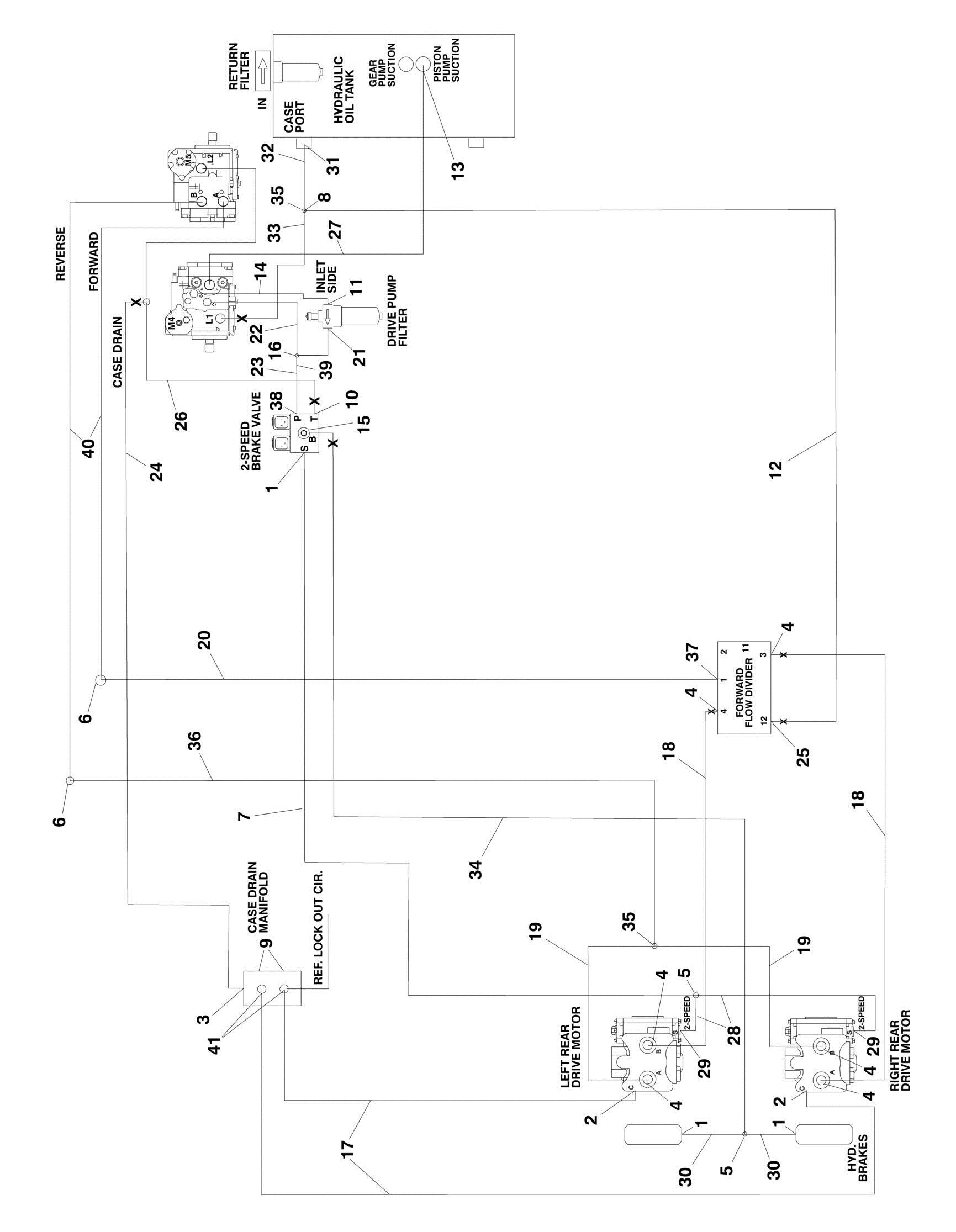

FIGURE 6-3. DRIVE HYDRAULIC DIAGRAM - 2WD
FIGURE 6-3. DRIVE HYDRAULIC DIAGRAM - 2WD
FIGURE 6-3. DRIVE HYDRAULIC DIAGRAM - 2WD
ITEM PART NUMBER QTY
DESCRIPTION
2792785 Ref DRIVE HYDRAULIC DIAGRAM - 2WD 1 2130404 3 Fitting, Elbow 2 2110808 3 Fitting, Straight 3 2130812 1 Fitting, Elbow 4 2111212 6 Fitting, Straight 5 2170504 2 Fitting, Tee 6 2221085 2 Fitting, Elbow 7 2753675 1 Hose 8 2221296 1 Fitting, Straight 9 2220238 2 Plug 10 2110604 1 Fitting, Straight 11 2131008 1 Fitting, Elbow 12 2754471 1 Hose 13 2111620 1 Fitting, Straight 14 2753594 1 Hose 15 4641281 1 Valve, Check 16 2221088 1 Fitting, Tee 17 2753579 2 Hose 18 2753582 2 Hose 19 2755076 2 Hose 20 2753605 1 Hose 21 2221216 1 Fitting, Straight 22 2753595 1 Hose 23 2753538 1 Hose 24 2753588 1 Hose 25 2110606 2 Fitting, Straight 26 2753578 1 Hose 27 2753610 1 Hose 28 2753939 2 Hose 29 2110406 2 Fitting, Straight 30 2753940 2 Hose 31 2131216 1 Fitting, Elbow 32 2753698 1 Hose 33 2753843 1 Hose 34 2753787 1 Hose 35 2170512 2 Fitting, Tee 36 Ref Hose Options: 36 2753688 1 USA Built Machines (SN 0300124000 through 0300142977) 36 2753688 1 Belgium Built Machines (SN 1300006000 through 1300006853) 36 1001119867 1 USA Built Machines (SN 0300142978 through 0300160834) 36 1001119867 1 Belgium Built Machines (SN 1300006854 to Present) 36 1001119867 1 Romanian Built Machines (SN E300000001 through
E300001114)
37 2111216 1 Fitting, Straight 38 2110404 1 Fitting, Straight 39 2221183 1 Fitting, Straight 40 2753604 2 Hose 41 Ref Fitting Options: 41 2110808 2 Fitting, Straight (USA Built Machines) (SN 0300124000 through
0300145501) REV
6
ITEM PART NUMBER QTY
DESCRIPTION
41 2110808 2 Fitting, Straight (Belgium Built Machines) (SN 1300006000
through 1300006960)
41 2150808 2 Fitting, Elbow (USA Built Machines) (SN 0300145502 through
0300160834)
41 2150808 2 Fitting, Elbow (Belgium Built Machines) (SN 1300006961 to
Present)
41 2150808 2 Fitting, Elbow (Romanian Built Machines) (SN E300000001
