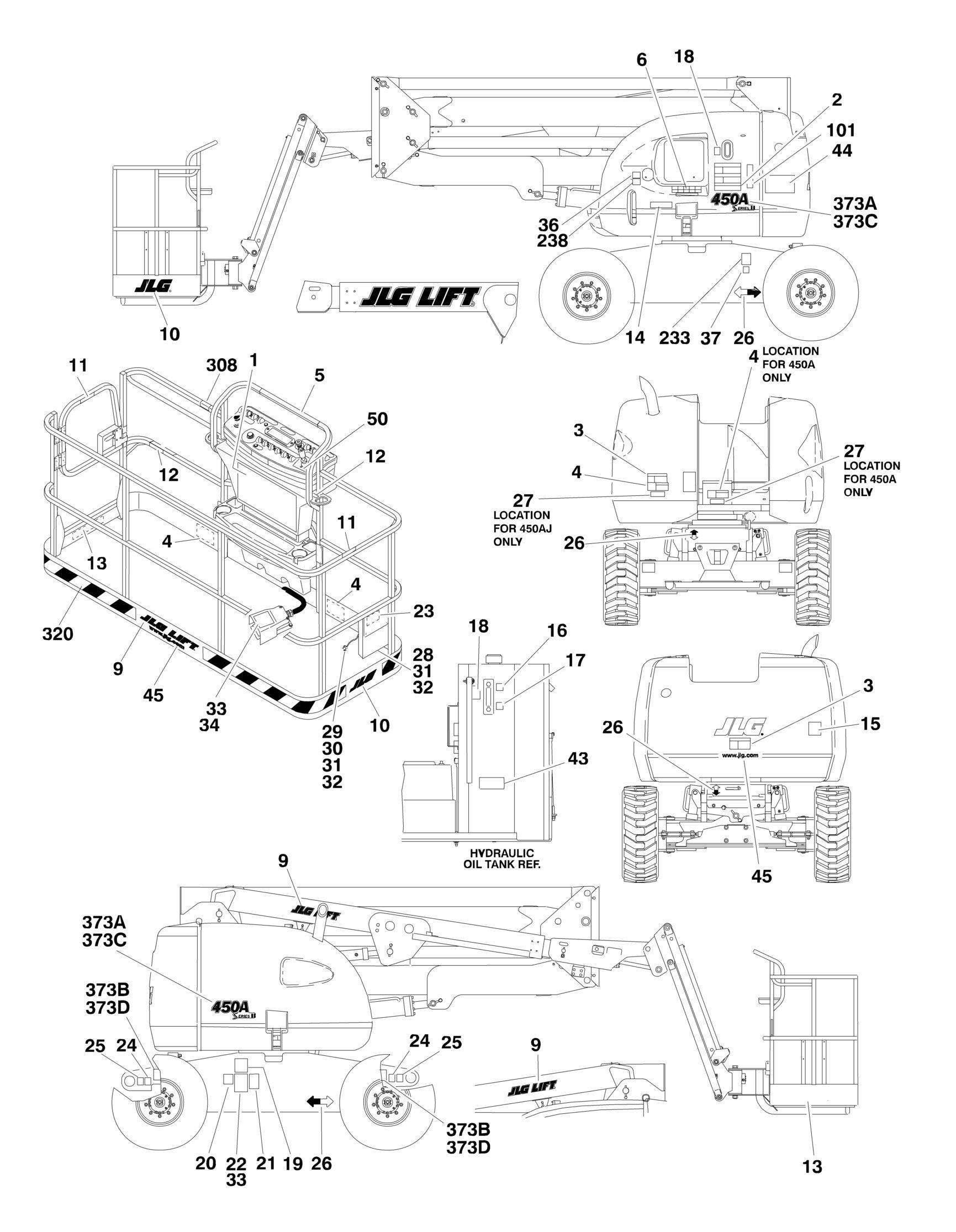

FIGURE 8-1. DECAL INSTALLATION - ANSI SPEC

FIGURE 8-1. DECAL INSTALLATION - ANSI SPEC

FIGURE 8-1. DECAL INSTALLATION - ANSI SPEC

ITEM PART NUMBER QTY

DESCRIPTION

Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref STANDARD DECAL INSTALLATION 0272573 Ref Standard Decal Installation 450A/AJ SERIES II 0272530 Ref JLG Logo Decals 1 1703797 1 Decal - Danger/Warning 2 1703798 1 Decal - Danger/Warning 3 1703805 2 Decal - Danger/Electrocution 4 1703804 3 Decal - Warning/Crushing 5 Ref Decal - Legend Options: 5 1706931 1 USA Built Machines (SN 0300124000 through 0300137891) 1706931 1 Belgium Built Machines (SN 1300006000 through

1300006700)

5 1001108493 1 USA Built Machines (SN 0300137892 through 0300160834) 1001108493 1 Belgium Built Machines (SN 1300006701 to Present) 1001108493 1 Romanian Built Machines (SN E300000001 through

E300001114)

6 1706941 1 Decal - Legend 9 1702774 3 Decal - JLG Lift (3 1/2in) 10 1702773 2 Decal - JLG (5in) 11 1702868 2 Decal - No Hands 12 1704277 3 Decal - Attach Lanyard Here 13 Ref Decal - Max Capacity Options: 13 1701645 1 USA Built Machines (SN 0300124000 through 0300142592) 13 1701645 1 Belgium Built Machines (SN 1300006000 through

1300006858)

13 1001121801 1 USA Built Machines (SN 0300142593 through 0300160834) 13 1001121801 1 Belgium Built Machines (SN 1300006859 to Present) 13 1001121801 1 Romanian Built Machines (SN E300000001 through

E300001114)

14 Ref Decal - Max Capacity Options: 14 1707013 1 USA Built Machines (SN 0300124000 through 0300142592) 14 1707013 1 Belgium Built Machines (SN 1300006000 through

1300006858)

14 1001121814 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121814 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121814 1 Romanian Built Machines (SN E300000001 through

E300001114)

15 3251813 1 Decal - USA 16 See Note 1 Decal - High Oil Level (Note: Was p/n 1701502 - No Longer Required) 17 See Note 1 Decal - Low Oil Level (Note: Was p/n 1701503 - No Longer Required) 18 1701504 AR Decal - Hydraulic Oil 19 See Note 1 Decal - Inspection (Note: Was p/n 1702153 - No Longer Required) 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down/Lift

REV

12 1

ITEM PART NUMBER QTY DESCRIPTION

25 1701500 4 Decal - Tie Down/Lift 26 1701529 4 Decal - Arrow 27 3251243 1 Nameplate 120V-60Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard (USA Built Machines) (SN 0300124000 through

0300143948)

29 1060279 1 Cable, Lanyard (Belgium Built Machines) (SN 1300006000

through 1300006895)

30 0641408 1 Bolt 1/4in-20NC x 1in (USA Built Machines) (SN 0300124000

through 0300143948)

30 0641408 1 Bolt 1/4in-20NC x 1in (Belgium Built Machines) (SN 1300006000

through 1300006895)

31 4751400 AR Flatwasher 1/4in Regular 32 3311405 AR Locknut 1/4in-20NC 33 3820001 AR Rivet 34 3252347 1 Decal - Footswitch 36 Ref Decal - Fuel 36 1701542 1 Gas Engine Machines 36 1701505 1 Diesel Engine Machines 37 Ref Decal - LPG Gas (Dual Fuel Machines Only) 37 Not Required 0 Non-Dual Fuel Machines 37 1701543 1 Dual Fuel Machines 43 1704412 1 Decal - Hydraulic Fluid 44 3252768 1 Decal - Lift Diagram 45 1704885 2 Decal - Website 46 0641406 4 Bolt, 1/4in-20NC x 3/4in (Not Shown) 50 1705351 1 Decal, Drive/Steer (USA Built Machines) (SN 0300137892

through 0300160834)

50 1705351 1 Decal, Drive/Steer (Belgium Built Machines) (SN 1300006701 to

Present)

0272341 Ref TIRE SEALANT DECAL INSTALLATIONS 101 1705363 1 Decal - Tire Sealant 0010718 Ref DECAL OPTIONS 233 1700818 1 Decal - LP (Dual Fuel Machines Only) 238 1001108923 1 Decal - Low Sulfur Fuel (Caterpillar, Deutz and Perkins Engine Machines)

308 Ref Decal - Warning Prop Options:

308 1702962 Diesel Machines

308 1702961

Gas Machines 320 0272165 Ref Warning Stripe Decal Installation 320 4420051 21.7 ft/6.61m Decal - Warning Stripes

REV

1

373 Ref Model Designation Decal Installation Options 373 0272580 Ref Model Designation Decal Installation 450A SERIES II 4 373B 1703486 4 Decal - Max Tire Load 373B 0272581 Ref Model Designation Decal Installation 450AJ Series II 2 373D 1703486 4 Decal - Max Tire Load
