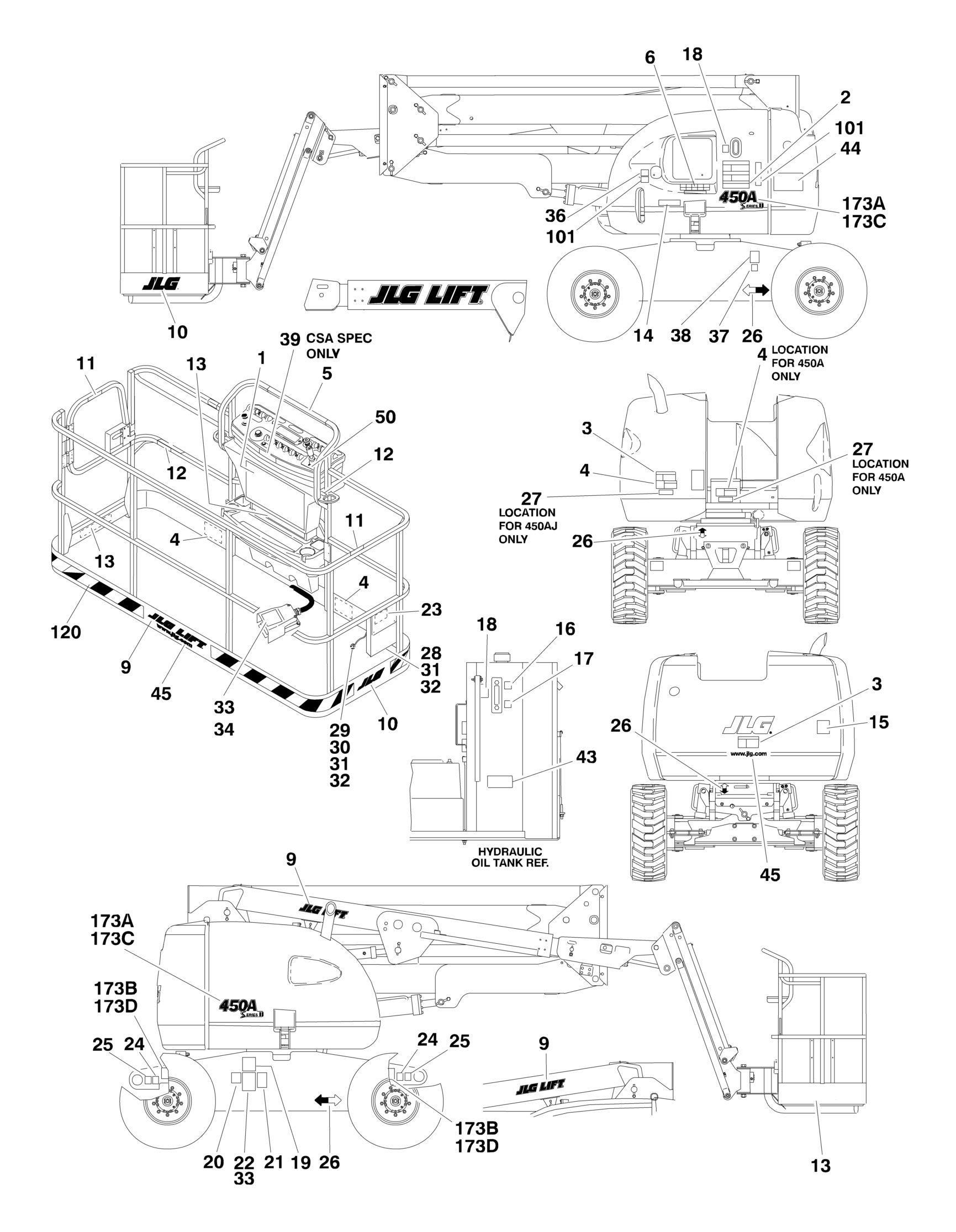

FIGURE 8-2. DECAL INSTALLATION - ANSI EXPORT SPECS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref DECAL INSTALLATIONS 0272579 Ref Decal Installations 450A/AJ SERIES II Brazil Spec
(SPANISH/PORTUGUESE)
0272578 Ref Decal Installations 450A/AJ SERIES II Chinese Spec
(ENGLISH/CHINESE)
0272577 Ref Decal Installations 450A/AJ SERIES II CSA Spec
(ENGLISH/FRENCH)
11
10
12
0272575 Ref Decal Installations 450A/AJ SERIES II Japanese Spec 10 0272576 Ref Decal Installations 450A/AJ SERIES II Korean Spec 10 0271189 Ref Decal Installations 450A/AJ SERIES II Latin America Spec
(ENGLISH/SPANISH)
7 0272530 Ref JLG Logo Decals 2 1 Ref Decal - Danger/Warning Options: 1 1703928 1 Brazil Spec 1 1703925 1 Chinese Spec 1 1703924 1 CSA Spec 1 1703926 1 Japanese Spec 1 1703927 1 Korean Spec 1 1703923 1 Latin American Spec 2 Ref Decal - Danger/Warning Options: 2 1703934 1 Brazil Spec 2 1703931 1 Chinese Spec 2 1703930 1 CSA Spec 2 1703932 1 Japanese Spec 2 1703933 1 Korean Spec 2 1703929 1 Latin American Spec 3 Ref Decal - Danger Electrocution Options: 3 1703940 2 Brazil Spec 3 1703937 2 Chinese Spec 3 1703936 2 CSA Spec 3 1703938 2 Japanese Spec 3 1703939 2 Korean Spec 3 1703935 2 Latin American Spec 4 Ref Decal - Warning/Crushing 4 1703952 3 Brazil Spec 4 1703949 3 Chinese Spec 4 1703948 3 CSA Spec 4 1703950 3 Japanese Spec 4 1703951 3 Korean Spec 4 1703947 3 Latin American Spec 5 Ref Decal - Legend Options: 5 Not Required 1 Brazil/Chinese/Japanese/Korean Spec 5 1706931 1 CSA/Latin American Specs (USA Built Machines) (SN
0300124000 through 0300137891)
5 1706931 1 CSA/Latin American Specs (Belgium Built Machines) (SN
1300006000 through 1300006700)
5 1001108493 1 CSA/Latin American Specs (USA Built Machines) (SN
0300137892 through 0300160834)
ITEM PART NUMBER QTY
DESCRIPTION
5 1001108493 1 CSA/Latin American Specs (Belgium Built Machines) (SN
1300006701 to Present)
5 1001108493 1 CSA/Latin American Specs (Romanian Built Machines) (SN
E300000001 through E300001114)
6 Ref Decal - Legend Options: 6 Not Required 0 Brazil/Chinese/Japanese/Korean Spec 6 1706941 AR CSA/Latin America Spec 9 1702774 3 Decal - Lift (3 1/2in) 10 1702773 2 Decal - JLG (5 in) 11 Ref Decal - No Hands Options: 11 1704002 2 Brazil Spec 11 Not Required 2 Chinese/Japanese Spec 11 1704000 2 CSA Spec 11 1705969 2 Korean Spec 11 1704001 2 Latin American Spec 12 1704277 3 Decal - Attach Lanyard 13 Ref Decal - Max Capacity 13 Ref BRAZIL SPEC OPTIONS: 13 1707134 2 USA Built Machines (SN 0300124000 through 0300142592) 13 1707134 2 Belgium Built Machines (SN 1300006000 through
1300006858)
13 1001121920 2 USA Built Machines (SN 0300142593 through 0300160834) 13 1001121920 2 Belgium Built Machines (SN 1300006859 to Present) 13 1001121920 2 Romanian Built Machines, Romanian Built Machines (SN
E300000001 through E300001114)
13 Ref Chinese Spec Options: 13 1707060 2 USA Built Machines (SN 0300124000 through 0300142592) 13 1707060 2 Belgium Built Machines (SN 1300006000 through
1300006858)
13 1001121810 2 USA Built Machines (SN 0300142593 through 0300160834) 13 1001121810 2 Belgium Built Machines (SN 1300006859 to Present) 13 1001121810 2 Romanian Built Machines (SN E300000001 through
E300001114)
13 Ref CSA Spec Options: 13 1707055 2 USA Built Machines (SN 0300124000 through 0300142592) 13 1707055 2 Belgium Built Machines (SN 1300006000 through
1300006858)
13 1001121803 2 USA Built Machines (SN 0300142593 through 0300160834) 13 1001121803 2 Belgium Built Machines (SN 1300006859 to Present) 13 1001121803 2 Romanian Built Machines (SN E300000001 through
E300001114)
13 Ref JAPANESE SPEC OPTIONS: 13 1707059 2 USA Built Machines (SN 0300124000 through 0300142592) 13 1707059 2 Belgium Built Machines (SN 1300006000 through
1300006858)
13 1001121808 2 USA Built Machines (SN 0300142593 through 0300160834) 13 1001121808 2 Belgium Built Machines (SN 1300006859 to Present) 13 1001121808 2 Romanian Built Machines (SN E300000001 through
E300001114)
13 Ref Korean Spec Options: 13 1707058 2 USA Built Machines (SN 0300124000 through 0300142592) 13 1707058 2 Belgium Built Machines (SN 1300006000 through
1300006858)
13 1001121918 2 USA Built Machines (SN 0300142593 through 0300160834)
REV
ITEM PART NUMBER QTY
DESCRIPTION
13 1001121918 2 Belgium Built Machines (SN 1300006859 to Present) 13 1001121918 2 Romanian Built Machines (SN E300000001 through
E300001114)
13 Ref LATIN AMERICAN SPEC OPTIONS: 13 1707056 2 USA Built Machines (SN 0300124000 through 0300142592) 13 1707056 2 Belgium Built Machines (SN 1300006000 through
1300006858)
13 1001121805 2 USA Built Machines (SN 0300142593 through 0300160834) 13 1001121805 2 Belgium Built Machines (SN 1300006859 to Present) 13 1001121805 2 Romanian Built Machines (SN E300000001 through
E300001114)
14
Ref Decal - Max Capacity Options: 14 Ref BRAZIL SPEC OPTIONS: 14 1707133 1 USA Built Machines (SN 0300124000 through 0300142592) 14 1707133 1 Belgium Built Machines (SN 1300006000 through
1300006858)
14 1001121923 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121923 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121923 1 Romanian Built Machines (SN E300000001 through
E300001114)
14 Ref Chinese Spec Options: 14 1707044 1 USA Built Machines (SN 0300124000 through 0300142592) 14 1707044 1 Belgium Built Machines (SN 1300006000 through
1300006858)
14 1001121823 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121823 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121823 1 Romanian Built Machines (SN E300000001 through
E300001114)
14 Ref CSA Spec Options: 14 1707047 1 USA Built Machines (SN 0300124000 through 0300142592) 14 1707047 1 Belgium Built Machines (SN 1300006000 through
1300006858)
14 1001121816 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121816 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121816 1 Romanian Built Machines, Romanian Built Machines (SN
E300000001 through E300001114)
14 Ref JAPANESE SPEC OPTIONS: 14 1707054 1 USA Built Machines (SN 0300124000 through 0300142592) 14 1707054 1 Belgium Built Machines (SN 1300006000 through
1300006858)
14 1001121821 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121821 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121821 1 Romanian Built Machines (SN E300000001 through
E300001114)
14 Ref Korean Spec Options: 14 1707042 1 USA Built Machines (SN 0300124000 through 0300142592) 14 1707042 1 Belgium Built Machines (SN 1300006000 through
1300006858)
14 1001121921 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121921 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121921 1 Romanian Built Machines (SN E300000001 through
E300001114)
14 Ref LATIN AMERICAN SPEC OPTIONS: 14 1707049 1 USA Built Machines (SN 0300124000 through 0300142592)
REV
ITEM PART NUMBER QTY
DESCRIPTION
14 1707049 1 Belgium Built Machines (SN 1300006000 through
1300006858)
14 1001121818 1 USA Built Machines (SN 0300142593 through 0300160834) 14 1001121818 1 Belgium Built Machines (SN 1300006859 to Present) 14 1001121818 1 Romanian Built Machines (SN E300000001 through
E300001114)
15 Ref Decal - USA Options: 15 3251813 1 Brazil/CSA/Latin American Spec 15 Not Required 1 Chinese/Japanese/Korean Spec 16 See Note 1 Decal - High Oil Level (Note: Was p/n 1701502 - No Longer Required) 17 See Note 1 Decal - Low Oil Level (Note: Was p/n 1701503 - No Longer Required) 18 1701504 AR Decal - Hydraulic Oil 19 Ref Decal - Inspection Options: 19 1704008 1 Brazil Spec 19 1704006 1 CSA Spec 19 1704007 1 Latin American Spec 19 Not Required 1 Chinese/Japanese/Korean Spec 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down / Lift 25 1701500 4 Decal - Tie Down / Lift 26 1701529 4 Decal - Arrow 27 Ref Decal Options: 27 3251243 1 120V-60Hz - Brazil/CSA/Latin American Spec 27 Not Required 0 Chinese/Japanese/Korean Spec 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in Regular 32 3311405 5 Locknut 1/4in-20NC 33 3820001 AR Rivet 34 Ref Decal - Footswitch Options: 34 1703985 1 Brazil Spec 34 1703982 1 Chinese Spec 34 1703984 1 CSA Spec 34 1703980 1 Japanese Spec 34 1703981 1 Korean Spec 34 1703983 1 Latin American Spec 36 Ref Decal - Fuel Options: 36 1701542 1 Gas Engine Machines 36 1701505 1 Diesel Engine Machines 37 Ref Decal - LPG Gas (Dual Fuel Machines Only) 37 Not Required 0 Non-Dual Fuel Machines 37 1701543 1 Dual Fuel Machines 38 Ref Decal - LP Gas Liquid Withdrawal System (Dual Fuel Machines Only) 38 Not Required 0 Non-Dual Fuel Machines 38 1700818 1 Dual Fuel Machines (English Language)
REV
ITEM PART NUMBER QTY
DESCRIPTION
38 1704271 1 Dual Fuel Machines (CSA Spec) 38 1702720 1 Dual Fuel Machines (Spanish Language) 39 Ref Decal - CSA Options: 39 1705514 1 CSA Spec 39 Not Required 0 Brazil/ Chinese/ Japanese/ Korean/ Latin American Spec 43 1704412 1 Decal - Hydraulic Fluid 44 3252768 1 Decal - Lift Diagram 45 1704885 2 Decal - Website 46 0641406 4 Bolt 1/4in-20NC x 3/4in (Not Shown) 50 Ref Decal, Drive/Steer (USA Built Machines ): (SN 0300137892
through 0300160834)
Ref Decal, Drive/Steer (Belgium Built Machines) (SN 1300006701 to
Present)
Ref Decal, Drive/Steer (Romanian Built Machines) (SN E300000001
through E300001114)
50 1705905 1 Brazil Spec 50 1705430 1 Chinese Spec 50 1705429 1 CSA Spec 50 1705426 1 Japanese Spec 50 1705427 1 Korean Spec 50 1705910 1 Latin American Spec 0010718 Ref DECAL OPTIONS
101
Ref Decal - Low Sulfur Fuel Options (Caterpillar, Deutz and Perkins Engine Machines): 101 1001108923 1 CSA Spec 101 Not Required 0 Brazil/ Chinese/ Japanese/ Korean/ Latin American Spec 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft/6.61m Decal - Warning Stripes
REV
173 Ref Model Designation Decal Installation Options 173 0272580 Ref Model Designation Decal Installation 450A Series II 3 173B 1703486 AR Decal - Max Tire Load 173B 0272581 Ref Model Designation Decal Installation 450AJ Series II 2 173D 1703486 4 Decal - Max Tire Load
