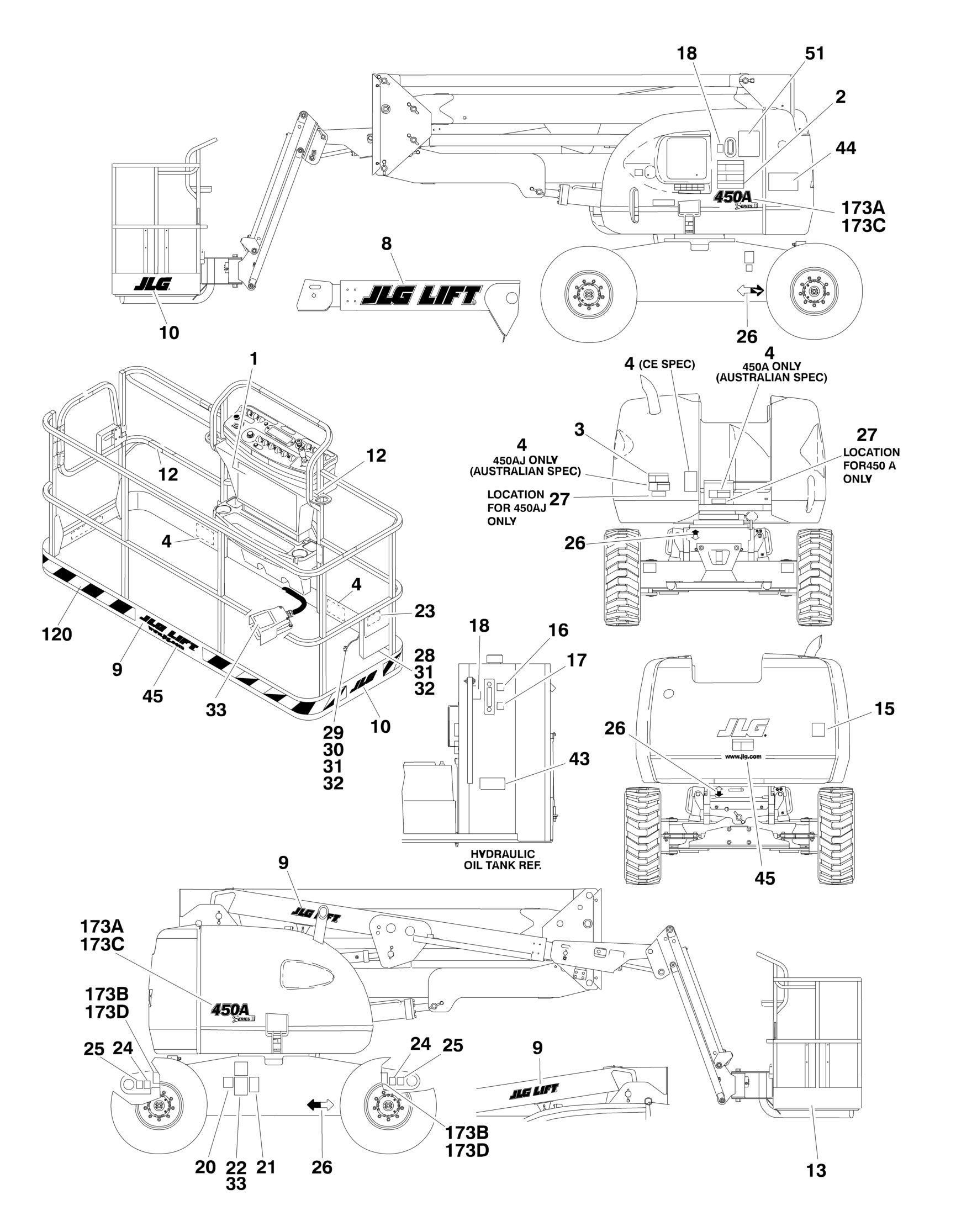

FIGURE 8-3. DECALS INSTALLATION - AUSTRALIAN AND CE SPECS
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. Ref DECAL INSTALLATIONS 0272574 Ref Australian Spec 0273452 Ref CE Spec 0272530 Ref JLG Logo Decals 1 Ref Decal - Danger/Warning Options: 1 1703992 1 Australian Spec 1 1705821 1 CE Spec 2 Ref Decal - Danger/Warning Options: 2 1705332 1 Australian Spec 2 1705822 1 CE Spec 4 1701518 3 Decal - Warning/Crushing 9 1702774 3 Decal - Lift (3 1/2in) 10 1702773 2 Decal - JLG (5 in) 12 1704277 3 Decal - Attach Lanyard 15 1705084 1 Decal - Sound Power Level (Not Required - Australian Spec) 16 See Note 1 Decal - High Oil Level (Note: Was p/n 1701502 - No Longer Required) 17 See Note 1 Decal - Low Oil Level (Note: Was p/n 1701503 - No Longer Required) 18 1701504 AR Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down / Lift 25 1701500 4 Decal - Tie Down / Lift 26 1701529 4 Decal - Arrow 27 Ref Decal Options: 27 3251242 1 240V-50Hz - Australian Spec 27 Not Required 0 CE Spec 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard (USA Built Machines) (SN 0300124000 through
0300143948)
29 1060279 1 Cable, Lanyard (Belgium Built Machines) (SN 1300006000
through 1300006895)
30 0641408 1 Bolt 1/4in-20NC x 1in (USA Built Machines) (SN 0300124000
through 0300143948)
30 0641408 1 Bolt 1/4in-20NC x 1in (Belgium Built Machines) (SN 1300006000
through 1300006895)
31 4751400 AR Flatwasher 1/4in Regular 32 3311405 AR Locknut 1/4in-20NC 33 2080057 2 Fastener 34 Ref Decal - Footswitch Options: 34 3252347 1 Australian Spec 34 1705828 1 CE Spec 36 1701505 1 Decal - Fuel 43 1704412 1 Decal - Hydraulic Fluid 44 3252768 1 Decal - Lift Diagram
REV
7 4 1
ITEM PART NUMBER QTY DESCRIPTION
45 1704885 2 Decal - Website 46 0641406 4 Bolt, 1/4in-20NC x 3/4in (Not Shown) 47 1705821 1 Decal, Tipping/Elect (PLF) (Not Shown) 48 1705822 1 Decal, Elect/Safety Manual (MTB) (Not Shown) 51 1001112551 1 Decal - Emergency Controls (Australian Spec Only USA Built Machines) (SN 0300138555 through 0300160834) 51 1001112551 1 Decal - Emergency Controls (Belgium Built Machines) (SN
1300006704 to Present)
51 1001112551 1 Decal - Emergency Controls (Romanian Built Machines) (SN
E300000001 through E300001114)
0010717 Ref DECAL OPTIONS 120 0272165 Ref Warning Stripe Decal Installation 120 4420051 21.7 ft/6.61m Decal - Warning Stripes
173 Ref Model Designation Decal Installation Options 173 0272580 Ref Model Designation Decal Installation 450A Series II 173B 1703486 AR Decal - Max Tire Load 173B 0272581 Ref 450AJ Series II 173D 1703486 4 Decal - Max Tire Load
REV
2
2
