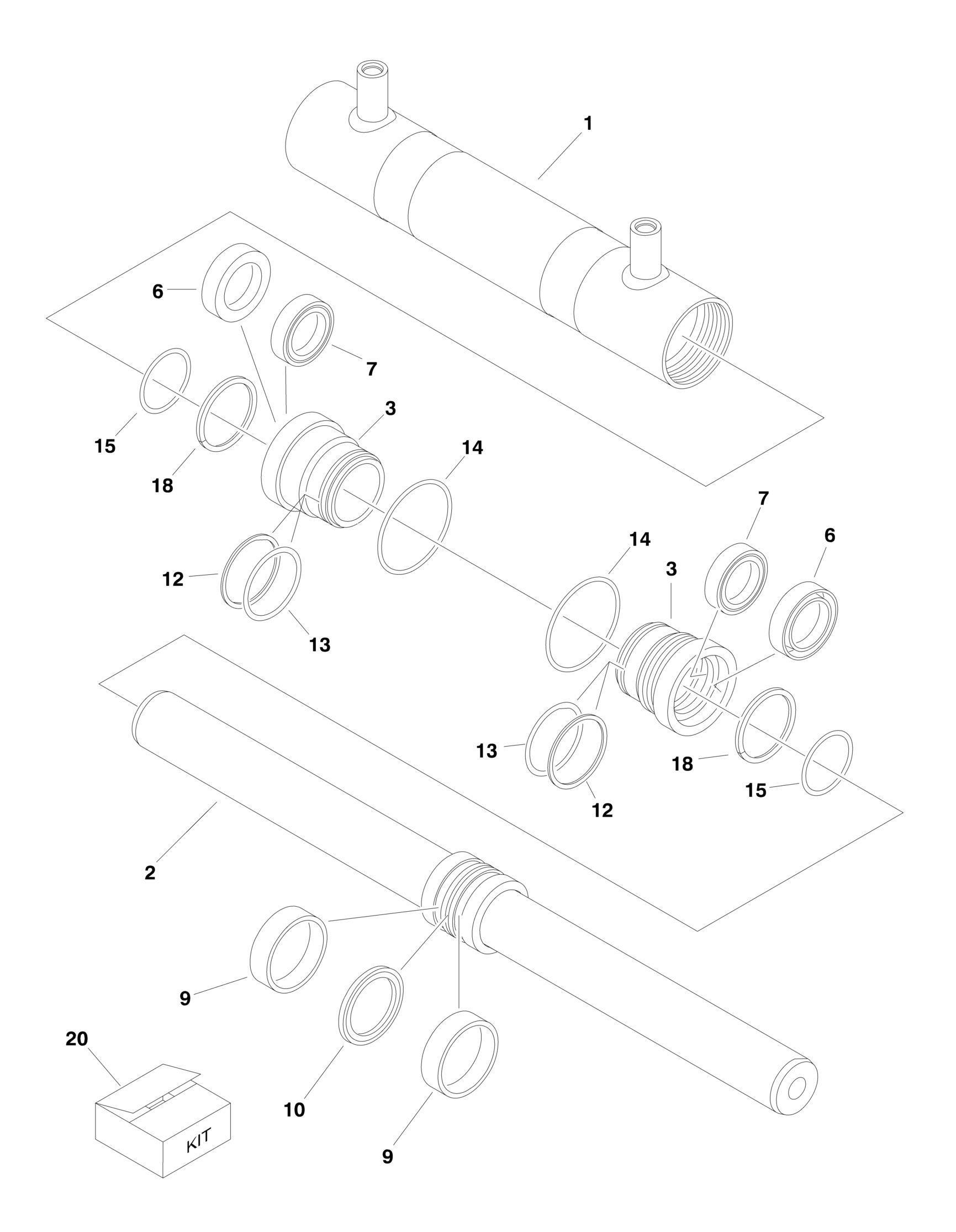

FIGURE 5-20. BELGIUM AND ROMANIAN BUILT MACHINES/STEER CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684246 Ref STEER CYLINDER ASSEMBLY 1 7026105 1 Barrel 2 7026106 1 Rod 3 7026104 2 Head 6 7026107 2 Wiper 7 7026107 2 Seal 9 7026107 2 Ring, Wear 10 7026107 1 Seal 12 7026107 2 Ring, Back-up 13 7026107 2 O-Ring 14 7026107 2 O-Ring 15 7026100 2 O-Ring 18 70002219 2 Ring, Retaining 20 7026107 1 Seal Kit, Cylinder (Includes Items 6-10 & 12-14)
REV
B
