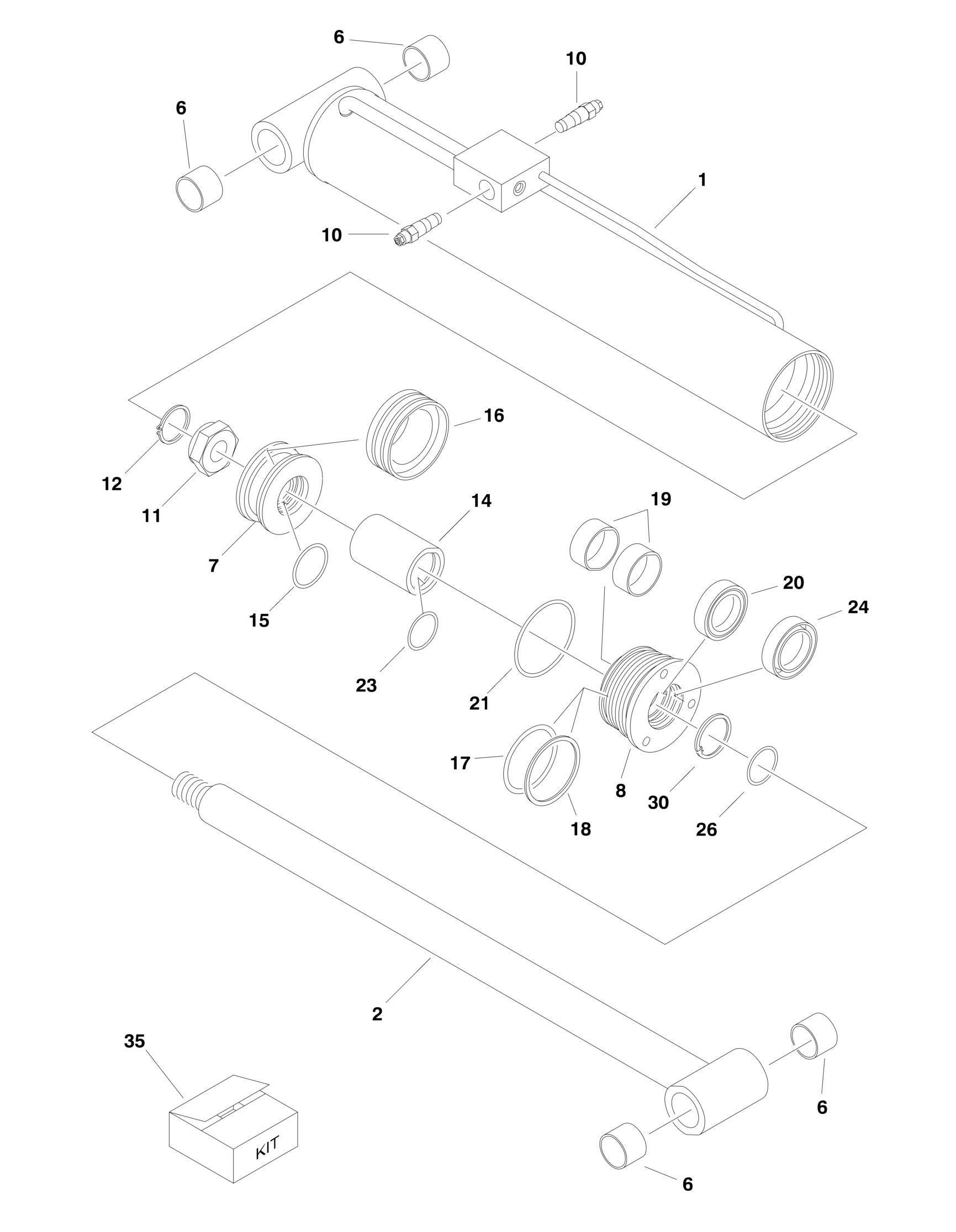

FIGURE 5-19. BELGIUM AND ROMANIAN BUILT MACHINES/LIFT (TOWER BOOM) CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref USA Built Machines use SNs 03xxxxxxxx. Ref Belgium Built Machines use SNs 13xxxxxxxx. Ref Romanian Built Machines use SNs E3xxxxxxxx. 1684239 Ref TOWER LIFT CYLINDER ASSEMBLY 1 7026078 1 Barrel 2 7026079 1 Rod 6 0961950 4 Bearing 7 7026073 1 Piston 8 7026074 1 Head 10 4641260 2 Cartridge, Valve 10 2900770 2 Seal Kit - 4641260 Valve (1 Per Assembly) 11 7026075 1 Nut 12 70002221 1 Ring, Retaining 14 7026076 1 Spacer 15 7026080 1 O-Ring 16 7026080 1 Seal 17 7026080 1 O-Ring 18 7026080 1 Ring, Back-up 19 7026080 2 Ring, Wear 20 7026080 1 Seal 21 7026080 1 O-Ring 23 7026080 1 O-Ring 24 7026080 1 Wiper 26 7026080 1 O-Ring 30 70002222 1 Ring, Retaining 35 7026080 1 Seal Kit, Cylinder (Includes Items 15-21, 23, 24 & 26)
